Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0HEV040.ZXCFUSE CARTRIDGE 40A 425VDC 5AG |
7,942 |
|
Datasheet | LC HEV | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | - | 425 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
0FLM6.25TFUSE CRTRDGE 6.25A 250VAC/125VDC |
4,502 |
|
Datasheet | FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6.25A | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0FLM.250TFUSE CRTRDGE 250MA 250VAC/125VDC |
4,685 |
|
Datasheet | FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 250mA | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLS004.TFUSE CARTRIDGE 4A 600VAC 5AG |
3,917 |
|
Datasheet | BLS | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
0FLM.500TFUSE CRTRDGE 500MA 250VAC/125VDC |
3 |
|
Datasheet | FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 500mA | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

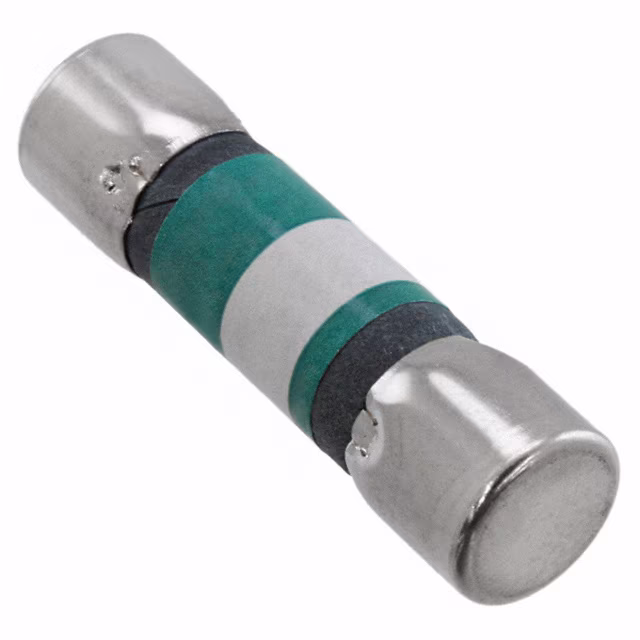

0FLM1.25TFUSE CRTRDGE 1.25A 250VAC/125VDC |
5,079 |
|
Datasheet | FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.25A | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0HEV010.ZXPCBLFUSE CERAMIC 10A 450VDC 5AG |
5 |
|
Datasheet | LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Active | Through Hole | Cartridge | 10A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
|
0HEV015.ZXPCBLFUSE CERAMIC 15A 450VDC 5AG |
4 |
|
Datasheet | LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Active | Through Hole | Cartridge | 15A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
|
0BLS010.TFUSE CARTRIDGE 10A 250VAC 5AG |
20 |
|
Datasheet | BLS | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
FLNR040.TFUSE CARTRIDGE 40A 250VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® FLNR | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 40A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) | - | - |
|
LA60Q202FUSE CRTRDGE 20A 600VAC/VDC 5AG |
1 |
|
Datasheet | POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA AC, 100kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SLC050.TFUSE CARTRIDGE 50A 480VAC/170VDC |
9,172 |
|
Datasheet | POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 480 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | - | - |
|

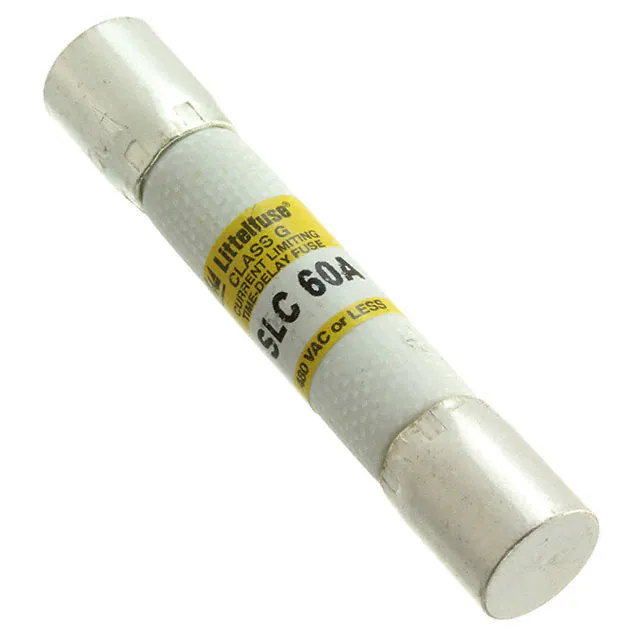

0SLC060.TFUSE CARTRIDGE 60A 480VAC/170VDC |
8,535 |
|
Datasheet | POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 480 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | - | - |
|
SPXI030-MFUSE 30A 1500VDC |
6,193 |
|
Datasheet | POWR-GARD® SPXI | Cartridge, Inline, Double Ended | Box | Active | Free Hanging (In-Line) | Cartridge | 30A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UR | - | 30kA | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) | - | - |
|
0KLK01.5TFUSE CRTRDGE 1.5A 600VAC/500VDC |
4 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.5A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV015.TFUSE CARTRIDGE 15A 1.5KVDC |
2 |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 15A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
0FLQ01.5TFUSE CRTRDGE 1.5A 500VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.5A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0FLQ03.2TFUSE CRTRDGE 3.2A 500VAC/300VDC |
8,394 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3.2A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPFI025.TFUSE CARTRIDGE 25A 1KVDC CYLINDR |
7,862 |
|
Datasheet | POWR-GARD® SPFI | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 25A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UR | - | 20kA | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | - | - |
|
|
SPFI030.LFUSE CARTRIDGE 30A 1KVDC CYLINDR |
3,483 |
|
Datasheet | POWR-GARD® SPFI | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UR | - | 20kA | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | - | - |
