Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

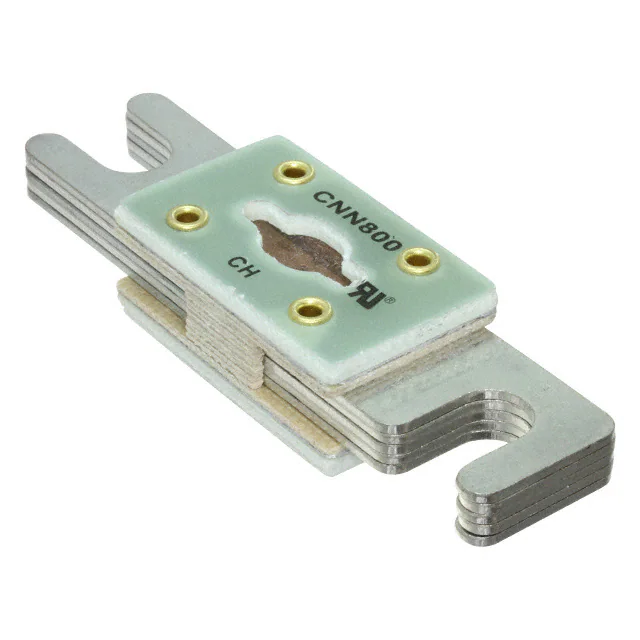

0CNN800.VFUSE STRP 800A 125VAC/48VDC BOLT |
3,821 |
|
Datasheet | POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FLSR100.VXIDFUSE CRTRDGE 100A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
L25S060.TFUSE CARTRIDGE 60A 250VAC/VDC |
7,257 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 250 VAC | 250 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | - | - |
|
L15S250.TFUSE CRTRDGE 250A 150VAC/100VDC |
1 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L15S150.TFUSE CRTRDGE 150A 150VAC/100VDC |
7,452 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L15S350.TFUSE CRTRDGE 350A 150VAC/100VDC |
5,492 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
L50QS125.VFUSE CRTRDGE 125A 500VAC/VDC |
3,104 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
|
L50QS200.VFUSE CRTRDGE 200A 500VAC/VDC |
5,043 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
L70QS050.VFUSE CARTRIDGE 50A 700VAC/700VDC |
1 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
L75QS050.V750VDC HIGHSPEED SEMICONDUCTOR F |
1 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
L50S200.VFUSE CRTRDGE 200A 500VAC/450VDC |
2,290 |
|
Datasheet | POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.126" L (31.00mm x 54.00mm) | - | - |
|
|
L70QS070.VFUSE CARTRIDGE 70A 700VAC/700VDC |
1 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
|
L70QS080.VFUSE CARTRIDGE 80A 700VAC/VDC |
7,068 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 80A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
|
L70QS100.VFUSE CRTRDGE 100A 700VAC/700VDC |
4,258 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
0JTD090.VFUSE CARTRIDGE 90A 600VAC/300VDC |
6,086 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 90A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
|
L50QS225.VFUSE CRTRDGE 225A 500VAC/VDC |
1 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
|
L50QS250.VFUSE CRTRDGE 250A 500VAC/VDC |
1 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
|
L50QS275.VFUSE CRTRDGE 275A 500VAC/VDC |
1 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 275A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
|
L25S600.VFUSE CRTRDGE 600A 250VAC/200VDC |
7,658 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 250 VAC | 200 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | - | - |
|
|
L50S400.VFUSE CRTRDGE 400A 500VAC/450VDC |
2,033 |
|
Datasheet | POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.500" Dia x 2.094" L (38.10mm x 53.20mm) | - | - |
