Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

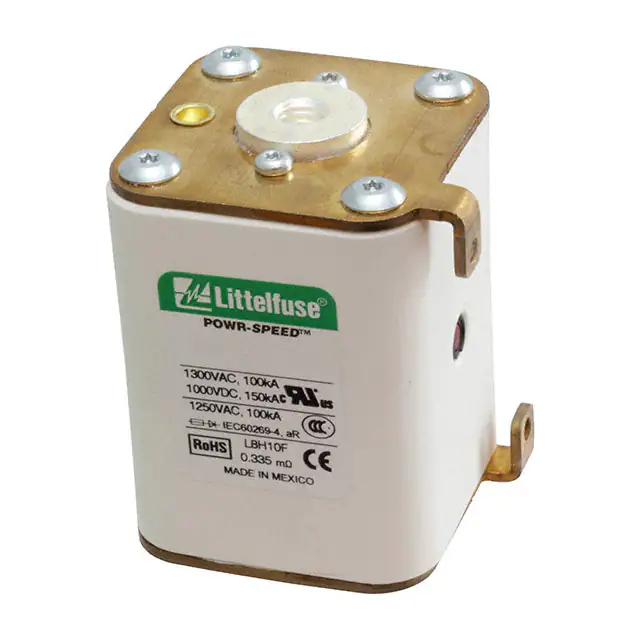

PSR071FS0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
5,633 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR032US0800XFUSE SQUARE 800A 700VAC/600VDC |
4,616 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|

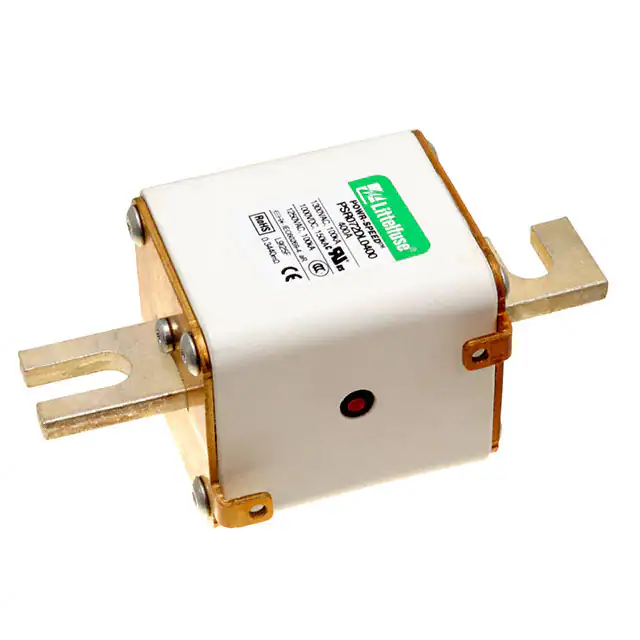

PSR072DL0400XFUSE SQUARE 400A 1.3KVAC/1KVDC |
4,182 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072DL0500XFUSE SQUARE 500A 1.3KVAC/1KVDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072UL0450XFUSE SQUARE 450A 1.3KVAC/1KVDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSX1XLDB0125XFUSE SEMI 1500VDC 1XL SIZE 125A |
1 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 125A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
PSX1XLUB0200XFUSE SEMI 1500VDC 1XL SIZE 200A |
5,063 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 200A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
L50QS800.XFUSE CRTRDGE 800A 500VAC/VDC |
1 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.500" Dia x 6.187" L (63.50mm x 157.15mm) | - | - |
|
PSX1XLFL0250XFUSE SEMI 1500VDC 1XL SIZE 250A |
1 |
|
Datasheet | POWR-SPEED® PSX | Rectangular | Box | Active | Bolt Mount | Square | 250A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
PSR073UL0500XFUSE SQUARE 500A 1.3KVAC/1KVDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.882" L x 2.894" W x 3.130" H (73.20mm x 73.50mm x 79.50mm) | - | - |
|
SPFJ250.XFUSE CARTRIDGE 250A 600VAC/1KVDC |
1 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 250A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 10kA DC | 2.000" Dia x 7.126" L (50.80mm x 181.00mm) | - | - |
|
SPFJ300.XFUSE CARTRIDGE 300A 600VAC/1KVDC |
1 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 300A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 10kA DC | 2.000" Dia x 7.126" L (50.80mm x 181.00mm) | - | - |
|
PSR073FS0400ZFUSE SQUARE 400A 1.3KVAC/1KVDC |
2,770 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|
L70QS450.XFUSE CRTRDGE 450A 700VAC/700VDC |
1 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 7.090" L (50.80mm x 180.08mm) | - | - |
|
|
L70QS500.XFUSE CRTRDGE 500A 700VAC/700VDC |
4,660 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 500A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 7.090" L (50.80mm x 180.08mm) | - | - |
|
|
L70QS600.XFUSE CRTRDGE 600A 700VAC/700VDC |
4,991 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 7.090" L (50.80mm x 180.08mm) | - | - |
|
PSR073UL0800XFUSES POWR-SPEED |
8,975 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 800A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) | - | - |
|

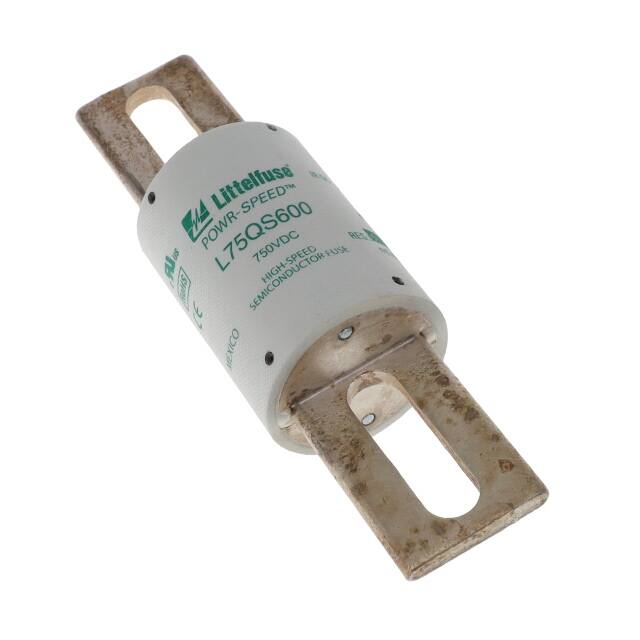

L75QS600.X750VDC HIGHSPEED SEMICONDUCTOR F |
3,904 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
|
PSX1XLFL0400XFUSE SEMI 1500VDC 1XL SIZE 400A |
6,595 |
|
Datasheet | POWR-SPEED® PSX | Rectangular | Box | Active | Bolt Mount | Square | 400A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR073FS1250ZFUSES POWR-SPEED |
3,263 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 1.25kA | 1 kVAC | - | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
