Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KLDR.300TXPFUSE CRTRDGE 300MA 600VAC/300VDC |
7,831 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 300mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR.100TXPFUSE CRTRDGE 100MA 600VAC/300VDC |
2,707 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 100mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0TLS050.TXLSFUSE CRTRDGE 50A 170VDC RAD BEND |
4,312 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 50A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
0TLS060.TXVFUSE CRTRDGE 60A 170VDC RAD BEND |
3,553 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 60A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.877" H (14.30mm x 22.28mm) | - | - |
|
0JTD010.TXIDFUSE CARTRIDGE 10A 600VAC/300VDC |
9,437 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
L50S060.TFUSE CARTRIDGE 60A 500VAC/450VDC |
1 |
|
Datasheet | POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | - | - |
|

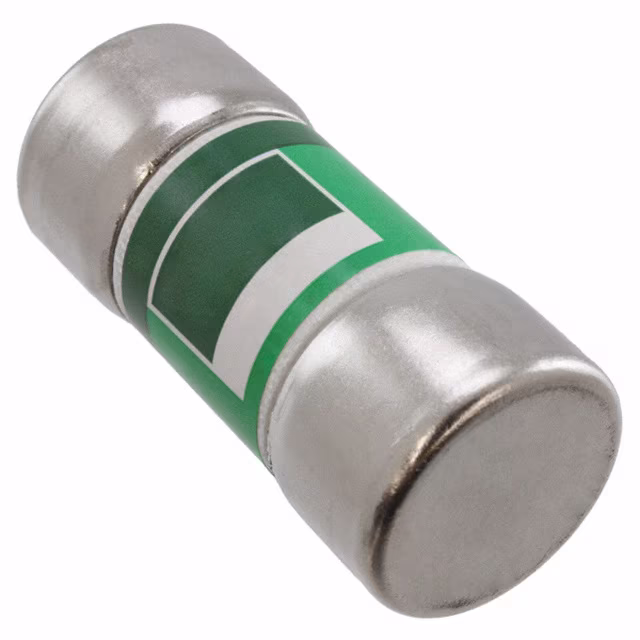

0JTD040.TFUSE CARTRIDGE 40A 600VAC/300VDC |
3,195 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
|
0JTD035.TXIDFUSE CARTRIDGE 35A 600VAC/300VDC |
2,744 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 35A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
|
L50S070.TFUSE CARTRIDGE 70A 500VAC/450VDC |
8,440 |
|
Datasheet | POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.126" L (25.40mm x 54.00mm) | - | - |
|
FLSR100.VFUSE CRTRDGE 100A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
KLNR080.VFUSE CARTRIDGE 80A 250VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® KLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 80A | 250 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.874" L (27.00mm x 149.20mm) | - | - |
|
L50QS175.VFUSE CRTRDGE 175A 500VAC/VDC |
1 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|

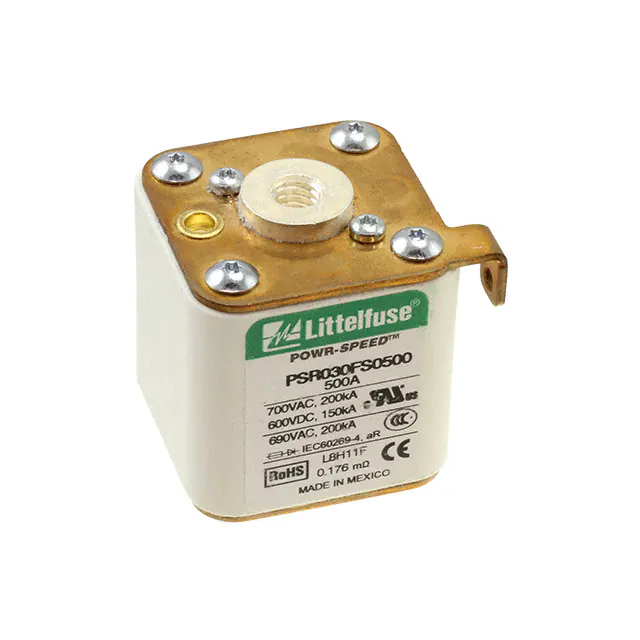

PSR030FS0500ZFUSE SQUARE 500A 700VAC/600VDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
L70QS090.VFUSE CARTRIDGE 90A 700VAC/700VDC |
4,934 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|

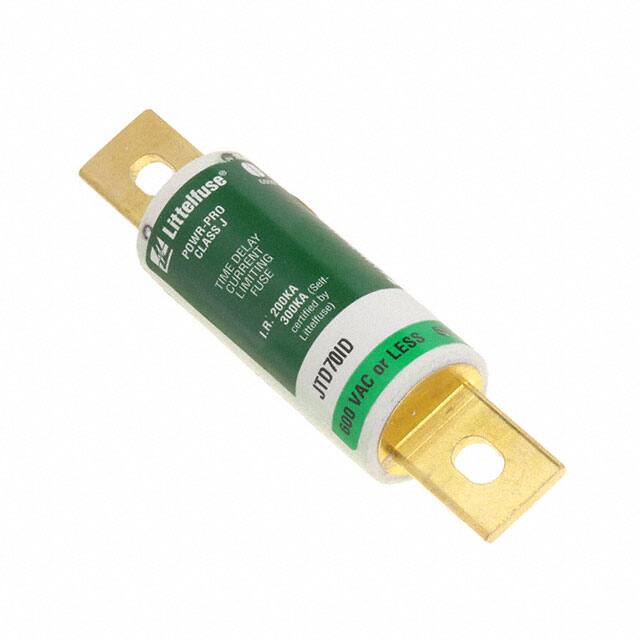

0JTD070.VXIDFUSE CARTRIDGE 70A 600VAC/300VDC |
3,584 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
0JTD100.VXIDFUSE CRTRDGE 100A 600VAC/300VDC |
6,889 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
L70S090.VFUSE CARTRIDGE 90A 700VAC/650VDC |
5,694 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | - | - |
|
|
L70QS150.VFUSE CRTRDGE 150A 700VAC/700VDC |
1 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 5.085" L (30.94mm x 129.16mm) | - | - |
|
PSR030FS0100ZFUSE SQUARE 100A 700VAC/600VDC |
9,938 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 100A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

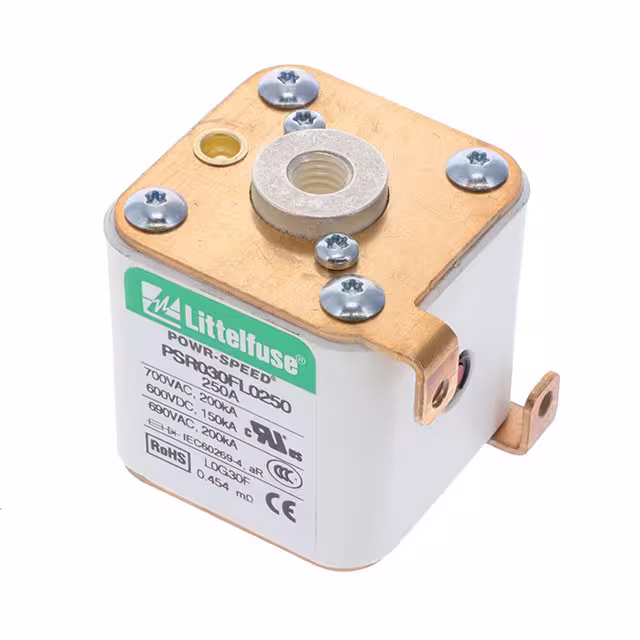

PSR030FL0250ZFUSE SQUARE 250A 700VAC/600VDC |
6,280 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
