TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCJ100CATVS DIODE 100VWM 162VC DO214AB |
21,819 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1KSMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
13,494 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 20A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE220CATVS DIODE 185VWM 328VC DO201 |
11,948 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 185V | 209V | 328V | 4.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SZ1SMB26AT3GTVS DIODE 26VWM 42.1VC SMB |
11,256 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.2A | 600W | No | - | 630pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMA6J12CA-TRTVS DIODE 12VWM 23.5VC SMA |
10,180 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 23.5V | 157A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J5.0CA-TRTVS DIODE 5VWM 13.4VC SMA |
9,845 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

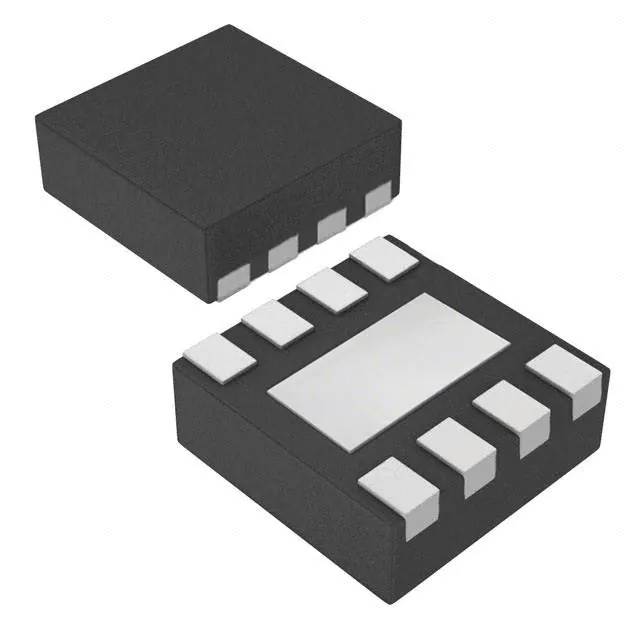

TPD8E003DQDRTVS DIODE 10VC 8-WSON |
8,758 |
|
Datasheet | 8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 8 | - | - | 6V | 10V | 2A (8/20µs) | 55W | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WSON (1.7x1.35) |
|
TPD2E2U06QDCKRQ1TVS DIODE 5.5VWM 12.4VC SC70-3 |
7,477 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 75W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 |
|
ESDA14V2SC6TVS DIODE 12VWM SOT23-6 |
6,909 |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TPSMA6L12ATVS SMAF 12V 600W UNIDIR |
6,515 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
SMM4F26A-TRTVS DIODE 26VWM 53.5VC DO222-AA |
6,070 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.5V | 53.5V | 43A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO222-AA |
|
|
SMCJ10ATVS DIODE 10VWM 17VC DO214AB |
5,837 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5KE43CATVS D5.4X7.5 36.8V 1500W BIDIR |
4,963 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 36.8V | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SP4023-01FTG-CTVS DIODE 15VWM 40VC SOD323 |
4,764 |
|
Datasheet | SC-76, SOD-323 | * | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 15V (Max) | 16V | 40V | 12A (8/20µs) | 450W | No | - | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
.jpg)
|
TPSMB22CATVS DIODE 18.8VWM 30.6VC DO214AA |
3,874 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.9A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg)
|
SMCJ78ATVS DIODE 78VWM 126VC DO214AB |
3,765 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 11.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SZP6SMB62AT3GTVS DIODE 53VWM 85VC SMB |
3,383 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | No | - | 335pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SZSMF6.0AT1GTVS DIODE 6VWM 10.3VC SOD123FL |
2,986 |
|
Datasheet | SOD-123F | SZSMF | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
SMAJ12AQ-13-FTVS DIODE 12VWM 19.9VC SMA |
2,563 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SZ1SMB30CAT3GTVS DIODE 30VWM 48.4VC SMB |
1,931 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | 290pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
