TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM6T68CATVS DIODE 58.1VWM 92VC SMB |
9,908 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESDONCAN1LT3GTVS DIODE 24VWM 50VC SOT23 |
9,670 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Min) | 26.2V | 50V | 3A (8/20µs) | - | No | CAN | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
1.5KE100ATVS D5.4X7.5 85.5V 1500W UNIDIR |
8,916 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 11A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
SM6T27CATVS DIODE 23.1VWM 37.5VC SMB |
8,408 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB400CATVS SMB 342V 600W BIDIR |
8,334 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 1.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg)
|
P6KE36ATVS DIODE 31VWM 64.3VC DO15 |
7,791 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 31V | 34.2V | 64.3V | 62A (8/20µs) | 600W | No | General Purpose | 950pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SM6T30CATVS DIODE 25.6VWM 41.5VC SMB |
7,364 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.5V | 14.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SM6T12CATVS DIODE 10.2VWM 16.7VC SMB |
5,826 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB13ATVS DIODE 11.1VWM 18.2VC DO214AA |
5,214 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESDS302DBVRTVS DIODE 3.6VWM 3VC SOT23-5 |
3,864 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 4.5V | 3V (Typ) | 12A (8/20µs) | 85W | No | General Purpose | 2.3pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
SM6T10CATVS DIODE 8.55VWM 14.5VC SMB |
3,502 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

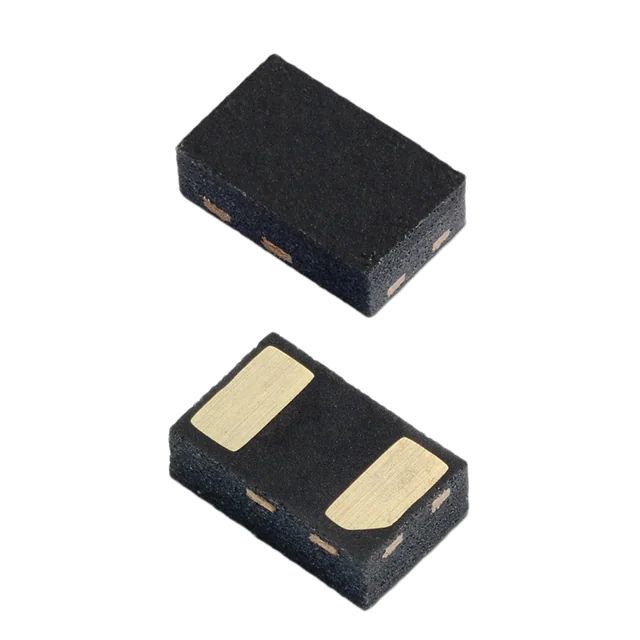

SC1105-01UTGTVS DIODE 5VWM 11.8VC 2DFN |
3,304 |
|
Datasheet | 0603 (1610 Metric) | SC11xx | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 11.8V (Typ) | 80A (8/20µs) | - | No | General Purpose | 660pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
1.5KE18ATVS DIODE 15.3VWM 32.5VC DO201 |
3,056 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.6V | 32.5V | 308A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4300pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SMCJ170ATVS DIODE 170VWM 275VC DO214AB |
3,020 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMF4L28ATVS DIODE 28VWM 45.4VC SOD123FL |
27,757 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMCJ43CATVS DIODE 43VWM 69.4VC DO214AB |
23,026 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 21.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD3E001DRYRTVS DIODE 5.5VWM 6SON |
20,848 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 11V | - | - | 90W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMS24CT1GTVS DIODE 24VWM 44VC 6TSOP |
18,055 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
P6KE13CATVS DIODE 11.1VWM 18.2VC DO204AC |
14,431 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPD4E1B06DRLRTVS DIODE 5.5VWM 14.5VC 6SOT |
13,881 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 14.5V (Typ) | 3A (8/20µs) | 45W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5X3 |
