TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
SZ1SMB36AT3GTVS DIODE 36VWM 58.1VC SMB |
8,559 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | - | 470pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMBJ40CA-TRTVS DIODE 40VWM 64.5VC SMB |
7,985 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
;;2.jpg)
|
P6KE18ATVS DIODE 15.3VWM 25.2VC DO204AC |
7,975 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

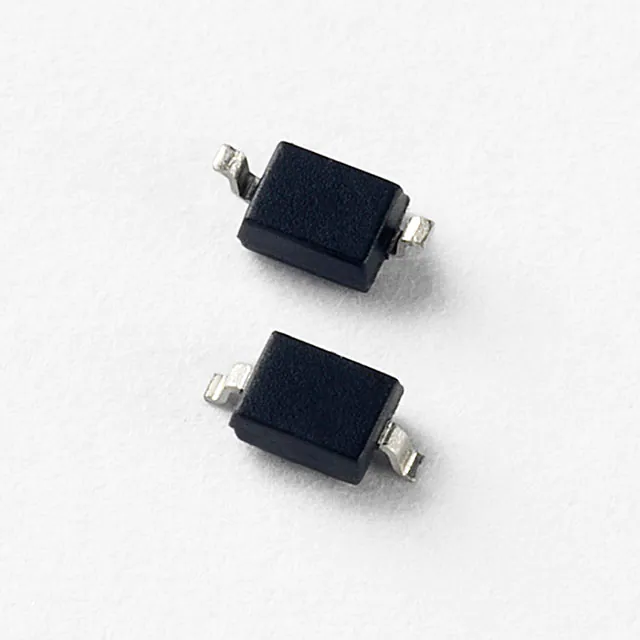

AQ3530-01FTGTVS DIODE 5VWM 15VC SOD323 |
7,652 |
|
Datasheet | SC-76, SOD-323 | AQ3530, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 7.5V | 15V | 2.5A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
SMBJ30CA-TRTVS DIODE 30VWM 48.4VC SMB |
6,985 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 13A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6KE12CATVS DIODE 10.2VWM 16.7VC DO204AC |
6,841 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 36.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6KE100ATVS DO15 85.5V 600W UNIDIR |
6,812 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
P4SMA30ATVS DIODE 25.6VWM 41.4VC DO214AC |
6,373 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 9.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SM6T18CATVS DIODE 15.3VWM 25.2VC SMB |
6,266 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
NSP4201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
5,927 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V | - | - | No | USB | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
TPSMF4L12ATVS DIODE 12VWM 19.9VC SOD123FL |
5,800 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMF4L12ATVS DIODE 12VWM 19.9VC SOD123FL |
4,893 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
ESDA14V2SC6YTVS DIODE 12VWM 35VC SOT23-6 |
4,837 |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 14.2V | 35V | 14A | 400W | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
SMBJ30CAQ-13-FTVS DIODE 30VWM 48.4VC SMB |
4,689 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
P6KE33ATVS DIODE 28.2VWM 45.7VC DO204AC |
4,392 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMCJ51ATVS DIODE 51VWM 82.4VC DO214AB |
3,880 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 18.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
 2 Leads.jpg)
|
SMBJ12CA-TRTVS DIODE 12VWM 19.9VC SMB |
3,843 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 31A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6KE20ATVS DO15 17.1V 600W UNIDIR |
3,405 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 22A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
AQ12C-01FTGTVS DIODE 12VWM 23VC SOD323 |
3,235 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | - | 23V | 17A (8/20µs) | 450W | No | CAN | 100pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMF51CATVS SOD123FL 51V 200W BIDIR |
3,000 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 2.4A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
