TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ300CATVS DIODE 300VWM 486VC DO214AC |
72,548 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 300V | 335V | 486V | 1.3A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
.jpg)
|
1KSMB30CATVS DIODE 25.6VWM 41.4VC DO214AA |
34,917 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 24.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SZP6SMB15AT3GTVS DIODE 12.8VWM 21.2VC SMB |
33,745 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28A | 600W | No | - | 1175pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
TPSMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
29,806 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12.2A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
TPSMB30CATVS DIODE 25.6VWM 41.4VC DO214AA |
16,922 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 14.7A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|

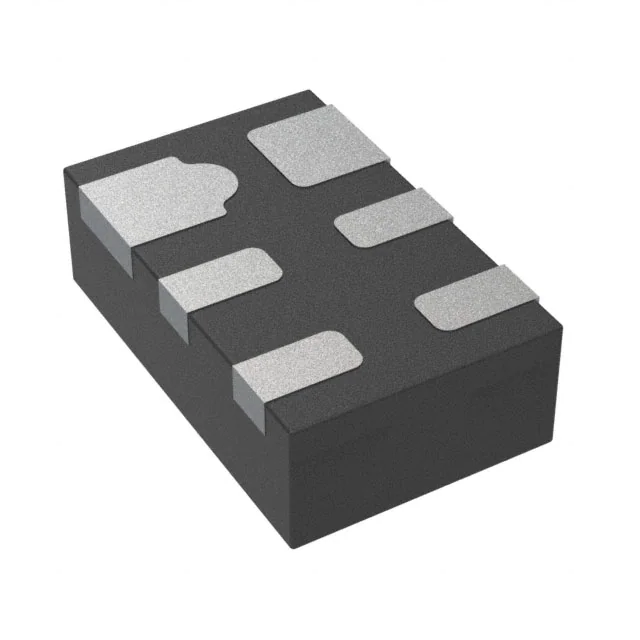

SP3400-02UTGTVS DIODE 5VWM 16VC 6UDFN |
8,036 |
|
Datasheet | 6-UFDFN | SP3400, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.5V | 16V | 8A (8/20µs) | - | Yes | - | 1pF @ 3GHz | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 6-µDFN (1.6x1) |
|
SMA6J33CATVS DIODE 33VWM 53.3VC DO214 TR |
7,267 |
|
Datasheet | DO-214AC, SMA | SMA6J | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMA6J24CA-TRTVS DIODE 24VWM 44.3VC SMA |
6,519 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 44.3V | 80A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ22ATVS DIODE 22VWM 35.5VC DO214AB |
3,846 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE24CATVS D5.4X7.5 20.5V 1500W BIDIR |
3,048 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 2 | 20.5V | 22.8V | 33.2V | 45A | 1500W (1.5kW) | Yes | General Purpose | 1750pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
SMAJ400ATVS DIODE 400VWM 648VC DO214AC |
36,767 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 400V | 447V | 648V | 1A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
P6SMB350ATVS SMB 300V 600W UNIDIR |
25,233 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 300V | 332V | 482V | 1.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMA6J15A-TRTVS DIODE 15VWM 27.7VC SMA |
14,803 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 27.7V | 123A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
TPD4E004DRYRTVS DIODE 5.5VWM 6SON |
14,419 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMCJ13ATVS DIODE 13VWM 21.5VC DO214AB |
14,389 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 69.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMF4L48ATVS DIODE 48VWM 77.4VC SOD123FL |
11,412 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
AQ05-02HTGTVS DIODE 5VWM 13VC SOT23-3 |
10,671 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 13V | 33A (8/20µs) | 500W | No | CAN | 290pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
ESDA6V1SC6TVS DIODE 5.25VWM SOT23-6 |
10,084 |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 5.25V | 6.1V | - | - | 400W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
TPSMB33ATVS DIODE 28.2VWM 45.7VC DO214AA |
7,221 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.3A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
TPSMB36CATVS DIODE 30.8VWM 49.9VC DO214AA |
7,091 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 12.2A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
