Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

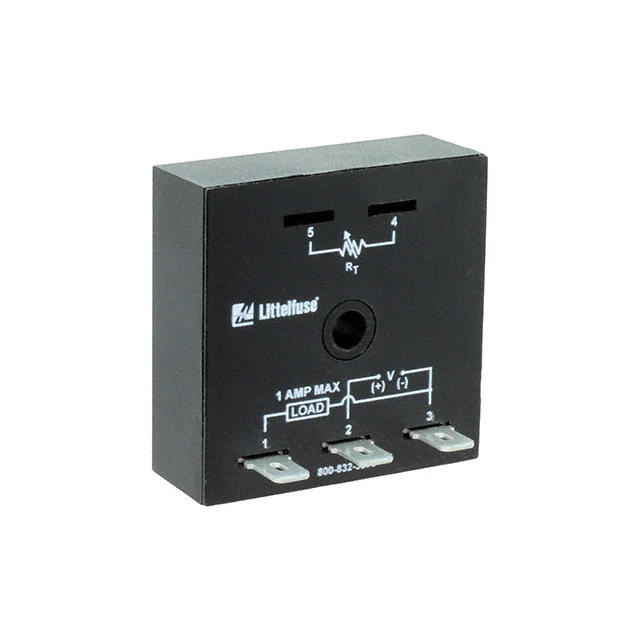

TS6116PRELAY TIME DELAY 6SEC CHAS MT |
0 |
|
Datasheet | TS6 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 6 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KSDS1115SPRELAY TIME DELAY 15 SEC CHAS MT |
0 |
|
Datasheet | KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
KRDI120RELAY TIME DELAY 10SEC 10A 125V |
0 |
|
Datasheet | KRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
KRDM430RELAY TIME DELAY 10SEC 10A 125V |
0 |
|
Datasheet | KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

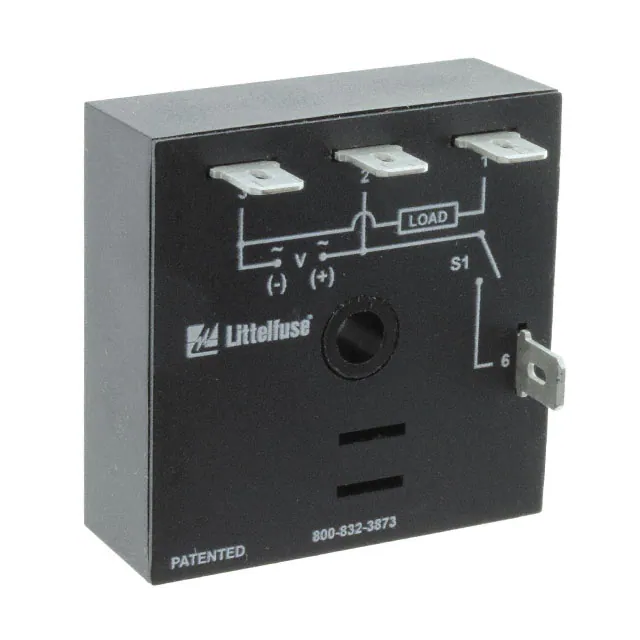

KSDB113MPRELAY TIME DELAY 3MIN CHAS MT |
1 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 3 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

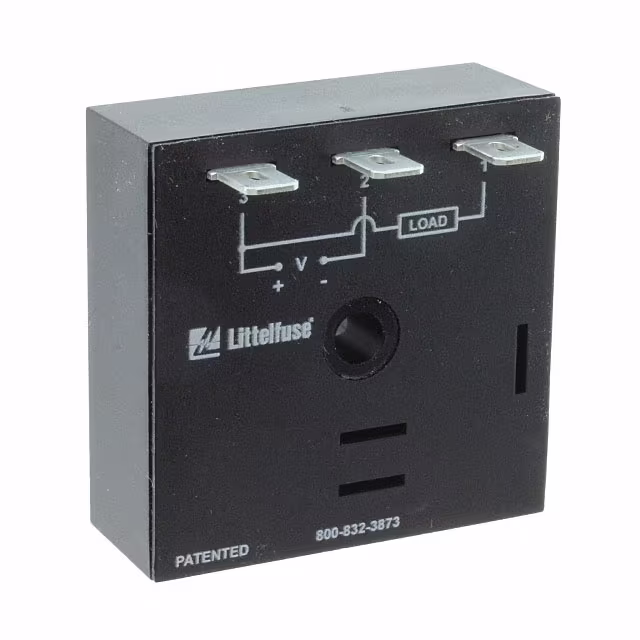

KSPSN13MIRELAY TIME DELAY 3MIN CHAS MT |
0 |
|
Datasheet | KSPS | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 3 Min | - | 12 ~ 120VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

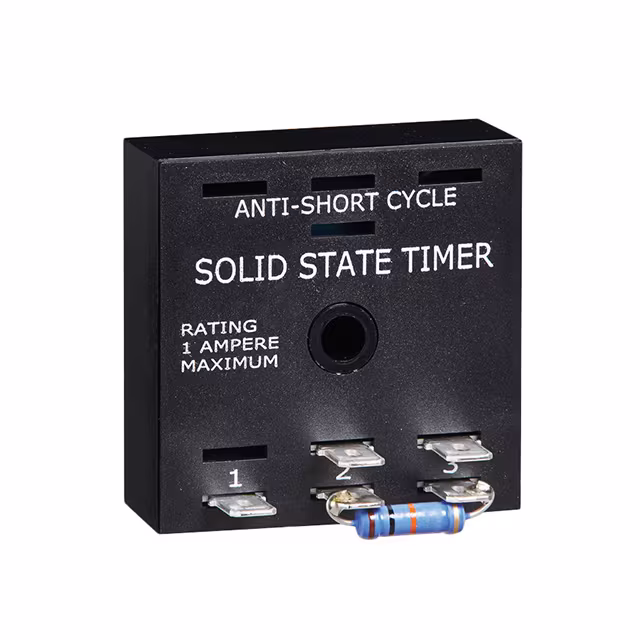

TSA141300RELAY TIME DELAY 5MIN CHAS MT |
0 |
|
Datasheet | TSA | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | - | Fixed, 5 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

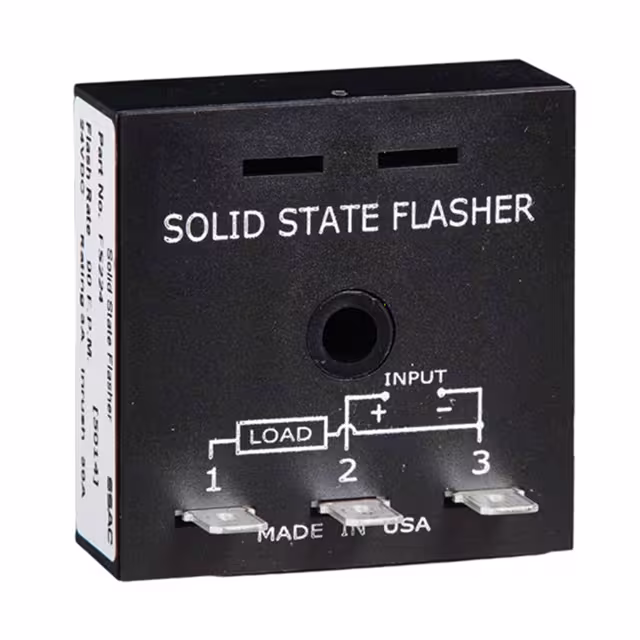

FS224RELAY TIME DELAY 90 FPM CHAS MT |
0 |
|
Datasheet | FS200 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 90 FPM | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

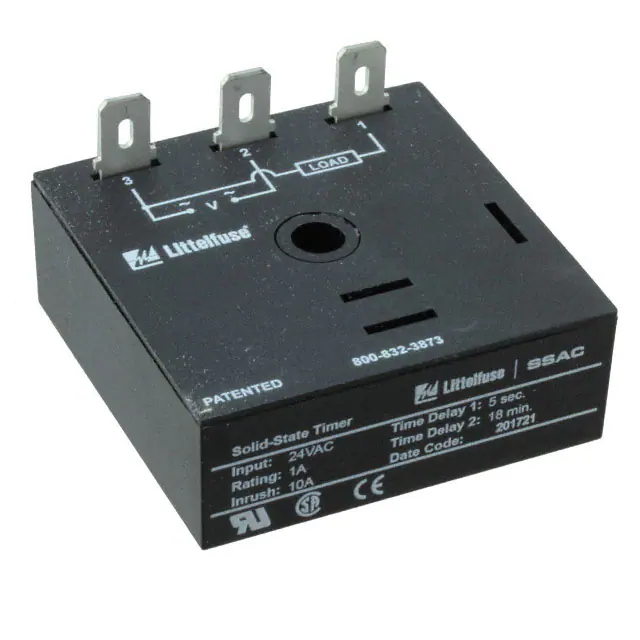

TSDR215SB18MRELAY TIME DELAY 18 MIN CHAS MT |
0 |
|
Datasheet | TSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 5 Sec, 18 Min | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSDR415SB18MRELAY TIME DELAY 18 MIN CHAS MT |
0 |
|
Datasheet | TSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 5 Sec, 18 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TSDS320NRELAY TIME DELAY 10SEC CHAS MT |
0 |
|
Datasheet | TSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

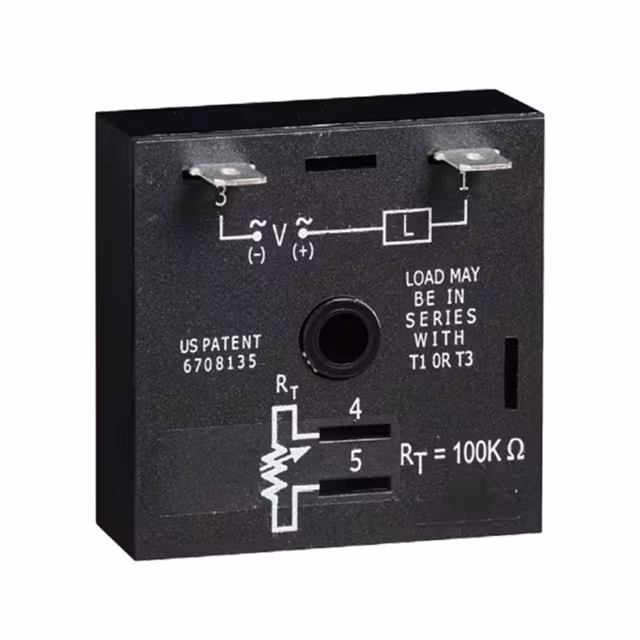

TSD1321RELAY TIME DELAY 100SEC CHAS MT |
0 |
|
Datasheet | TSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
KRDB120RELAY TIME DELAY 10SEC 10A 125V |
0 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

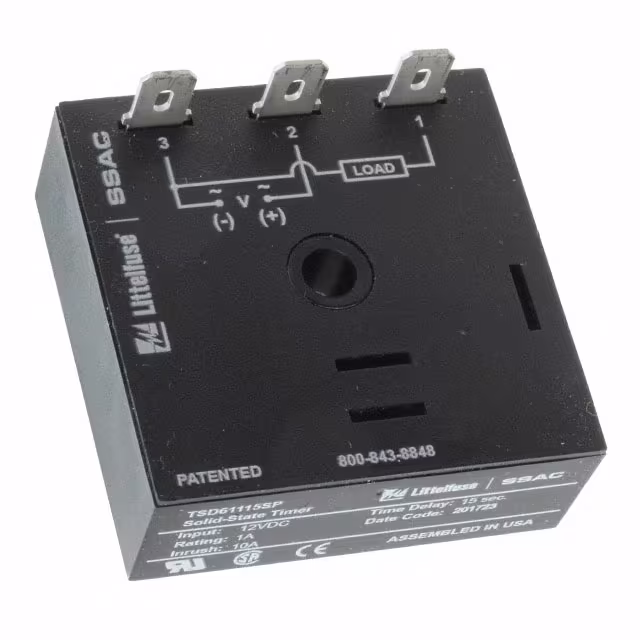

TSD61115SPRELAY TIME DELAY 15 SEC CHAS MT |
0 |
|
Datasheet | TSD | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

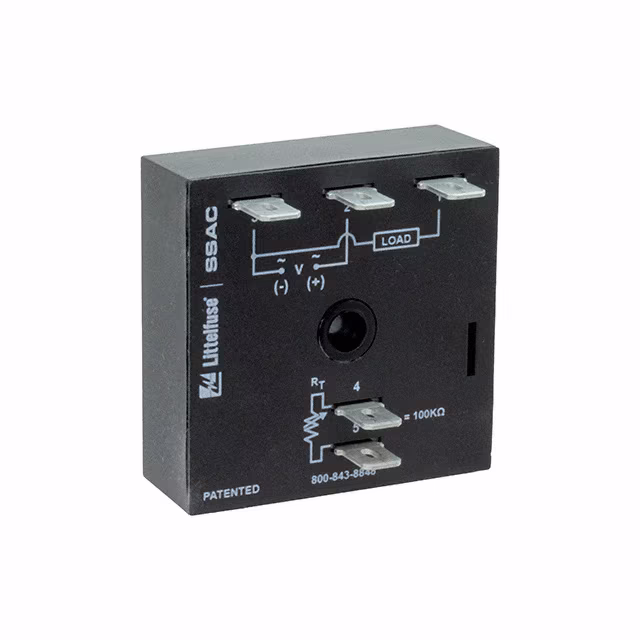

TSD6320PRELAY TIME DELAY 10SEC CHAS MT |
0 |
|
Datasheet | TSD | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.04 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

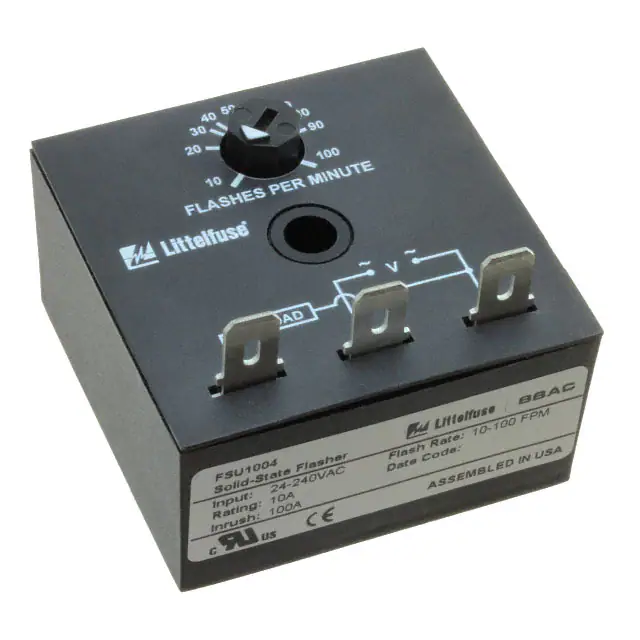

FSU1004RELAY TIME DELAY 100FPM CHAS MT |
0 |
|
Datasheet | FSU1000 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 10 FPM ~ 100 FPM | - | 24 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

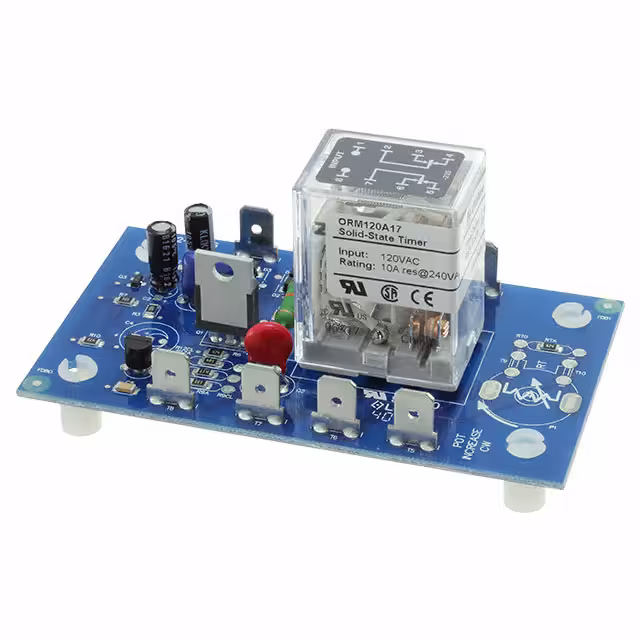

ORM120A17RELAY TIME DELAY 7SEC 10A 120V |
1 |
|
Datasheet | ORM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 7 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
HRDB121RELAY TIME DELAY 100SEC 30A 125V |
1 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
KRDS1135MRELAY TIME DELAY 35MIN 10A 125V |
1 |
|
Datasheet | KRDS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | Fixed, 35 Min | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KRDB421RELAY TIME DELAY 100SEC 10A 125V |
1 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
