Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS126RELAY TIME DELAY 75 FPM CHAS MT |
14 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|

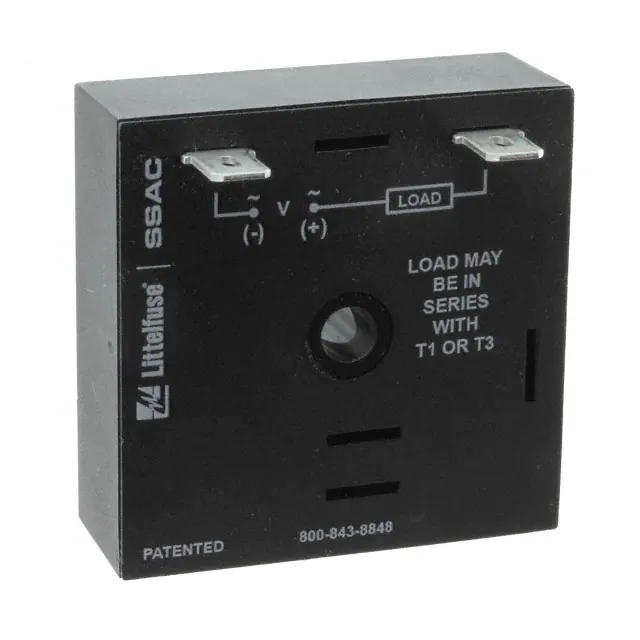

KSD11120SRELAY TIME DELAY 20 SEC CHAS MT |
3 |
|
Datasheet | KSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

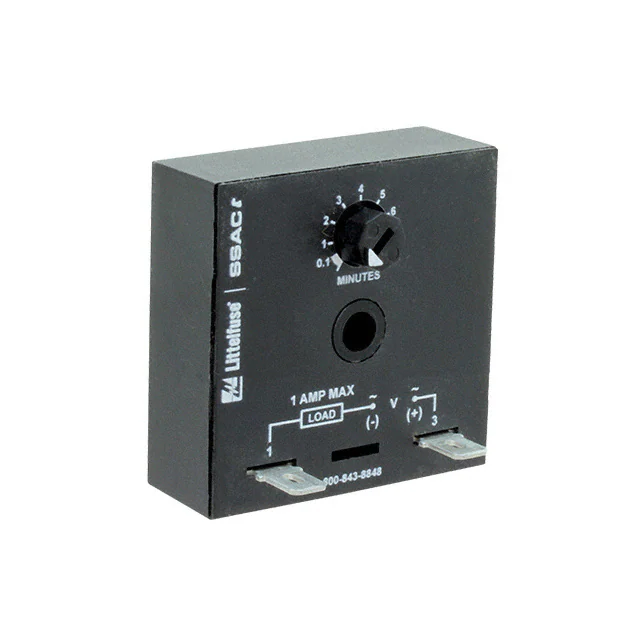

TMV8000RELAY TIME DELAY 8MIN CHAS MT |
14 |
|
Datasheet | TMV | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Min ~ 8 Min | - | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

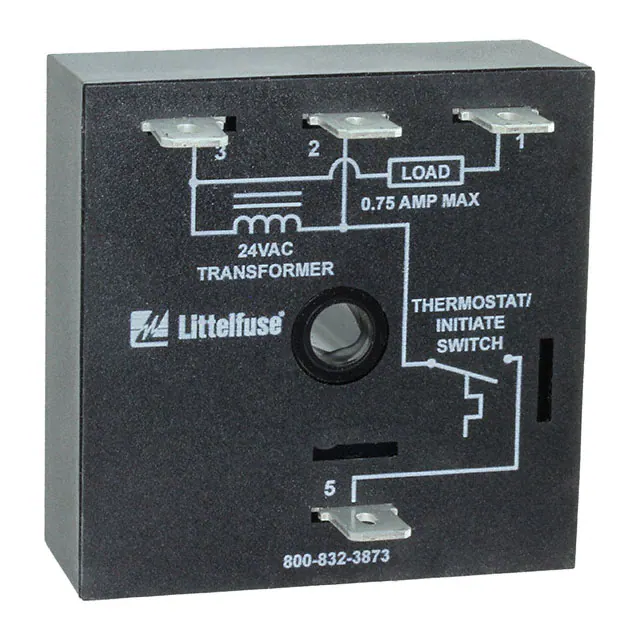

CT1S8RELAY TIME DELAY 1SEC 8SEC CHAS |
10 |
|
Datasheet | CT | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 1 Sec, 8 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

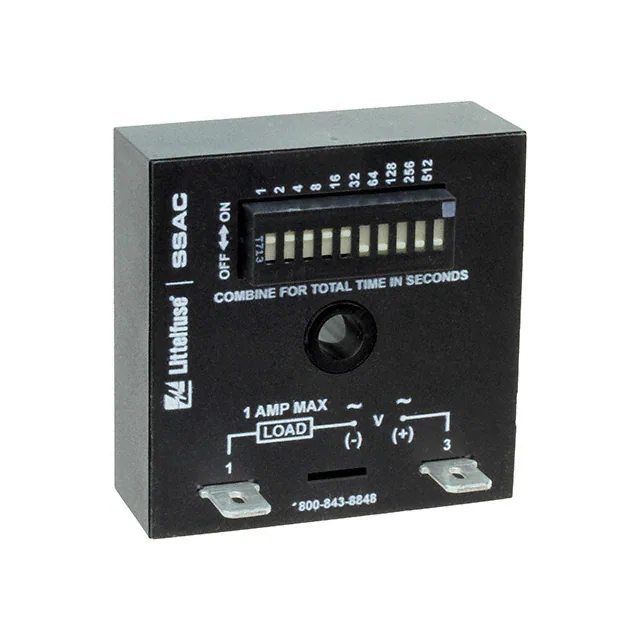

TDU3001ARELAY TIME DELAY 1023SEC CHAS MT |
5 |
|
Datasheet | TDU | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 100 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

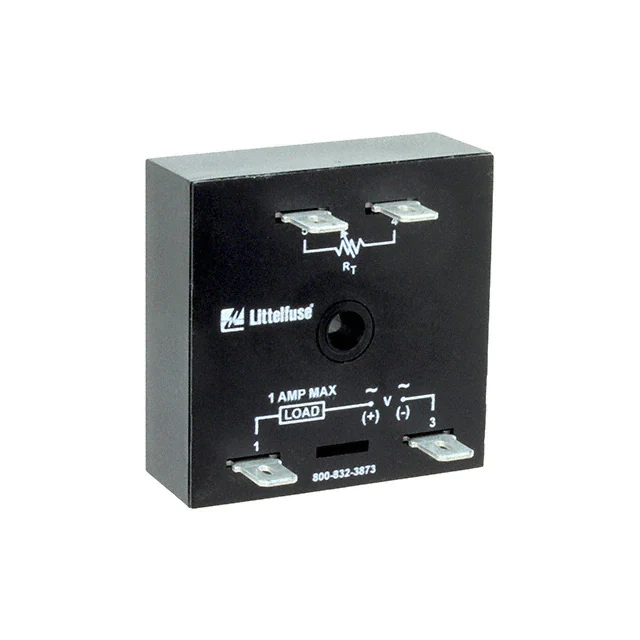

TS1422RELAY TIME DELAY 60SEC CHAS MT |
12 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

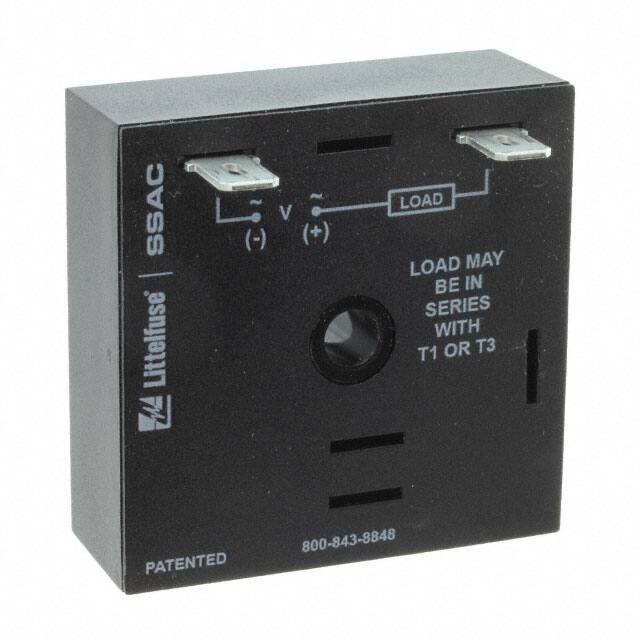

TS12130RELAY TIME DELAY 30SEC CHAS MT |
10 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

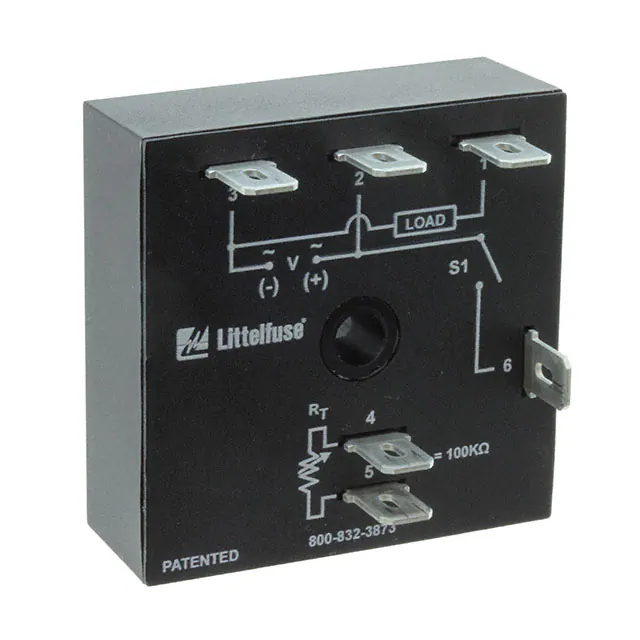

KSDS420RELAY TIME DELAY 10SEC CHAS MT |
5 |
|
Datasheet | KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

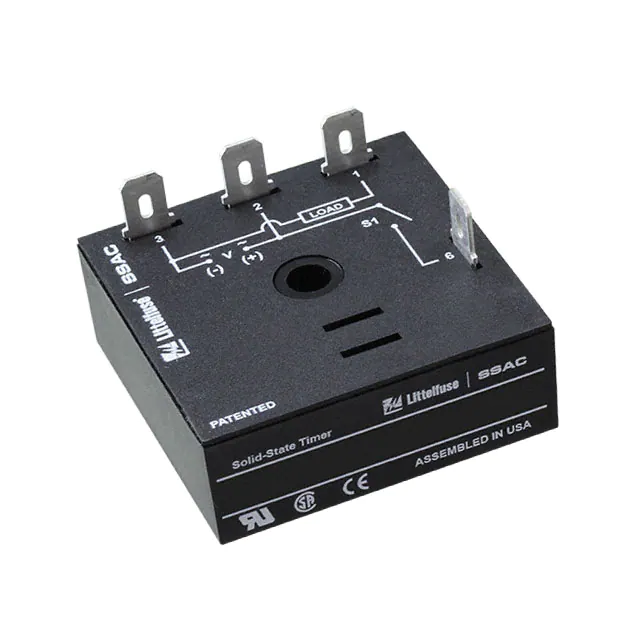

KSDB2115SRELAY TIME DELAY 15 SEC CHAS MT |
3 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

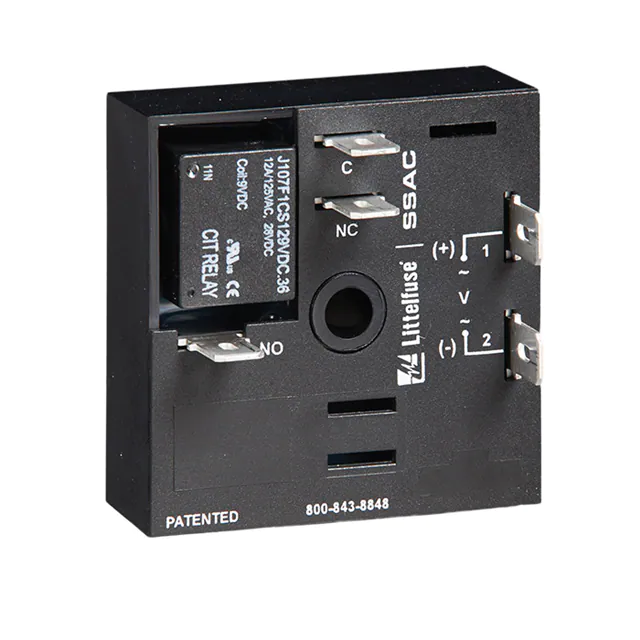

KRDM424RELAY TIME DELAY 100MIN 10A 125V |
9 |
|
Datasheet | KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

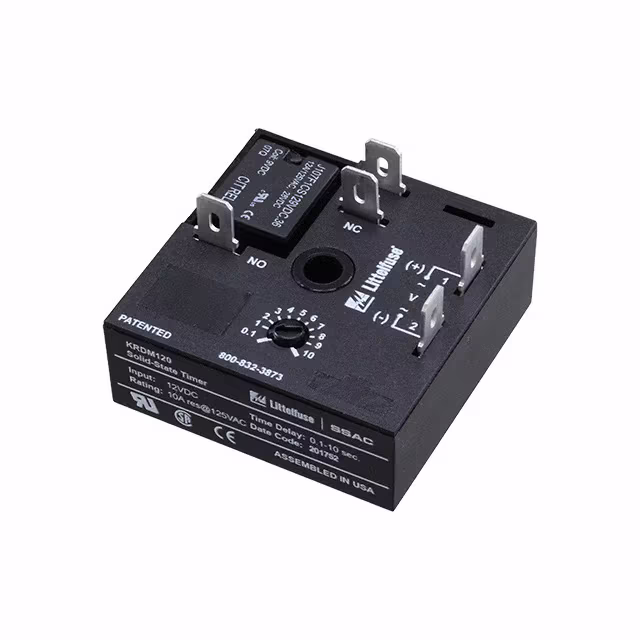

KRDM120RELAY TIME DELAY 10SEC 10A 125V |
3 |
|
Datasheet | KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

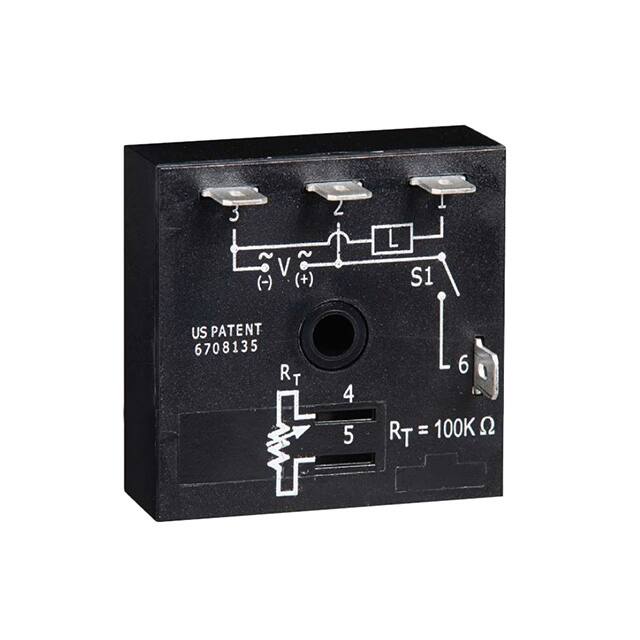

KSPSP22BRELAY TIME DELAY 100SEC CHAS MT |
9 |
|
Datasheet | KSPS | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 12 ~ 120VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

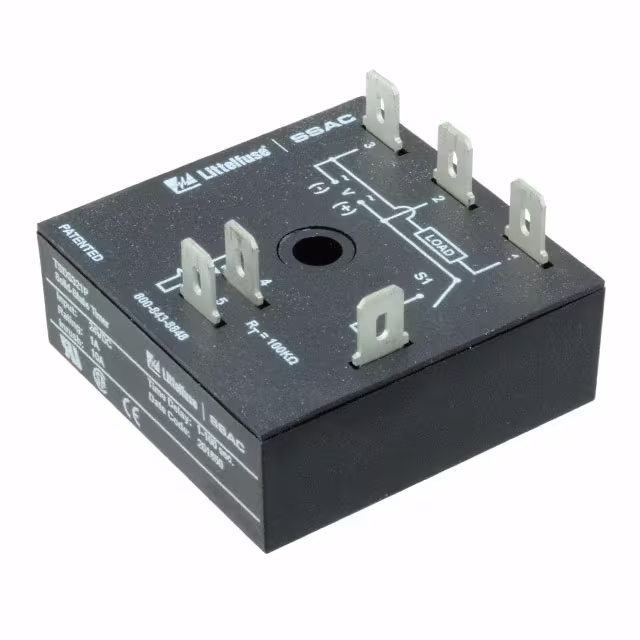

TSDB320PRELAY TIME DELAY 10SEC CHAS MT |
10 |
|
Datasheet | TSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

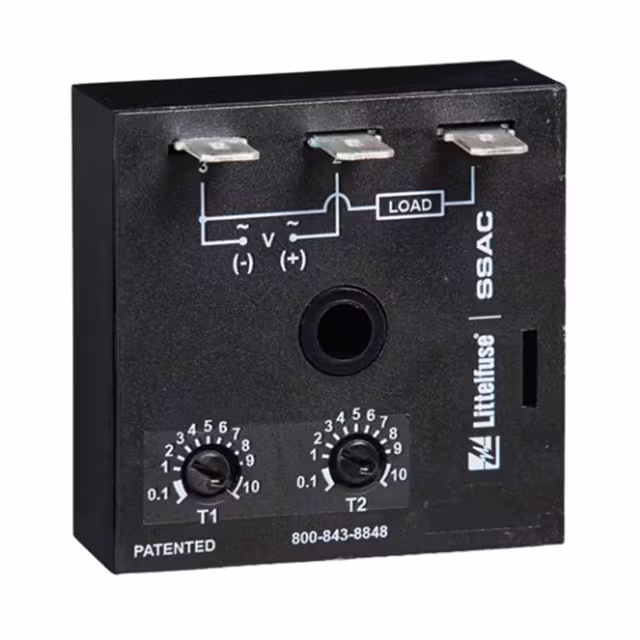

ESDR120A0PRELAY TIME DELAY 10SEC CHAS MT |
10 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

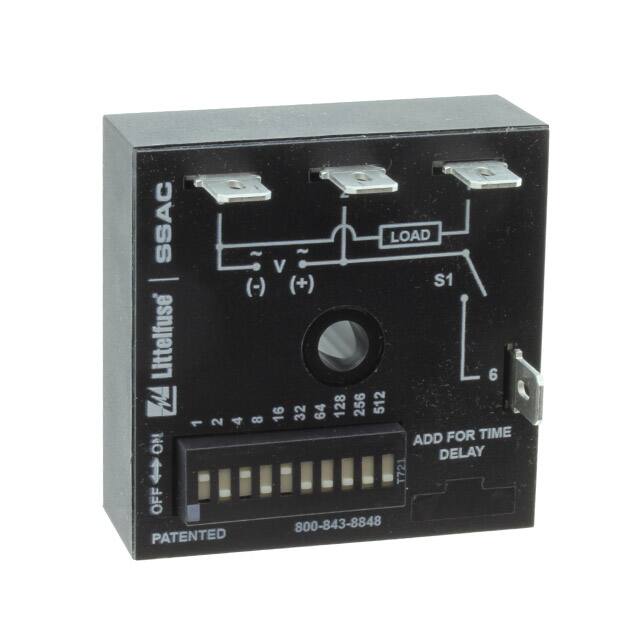

TDUB3000ARELAY TIME DELAY 1023SEC CHAS MT |
9 |
|
Datasheet | TDUB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 24 ~ 120VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
HRDB120RELAY TIME DELAY 10SEC 30A 125V |
10 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

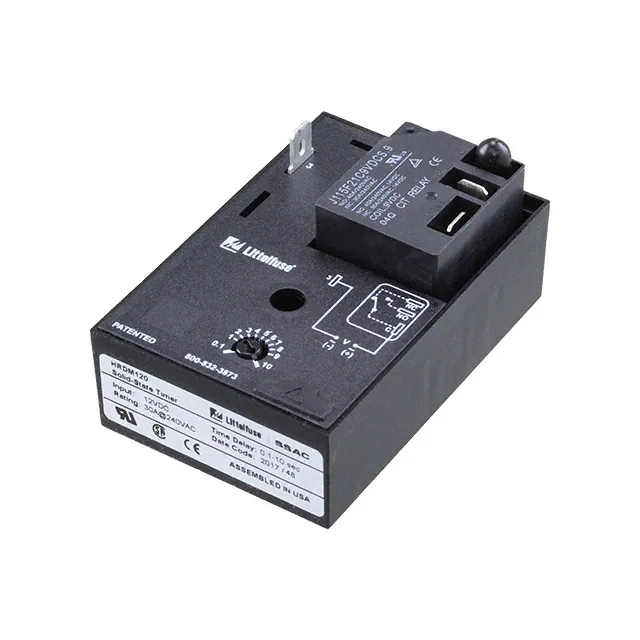

HRDM120RELAY TIME DELAY 10SEC 30A 125V |
10 |
|
Datasheet | HRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

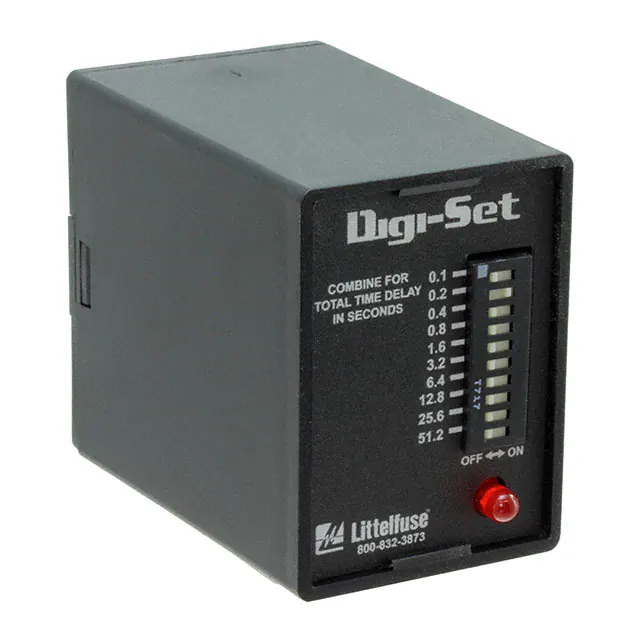

TDML120ALRELAY TIME DEL 102.3SEC 10A 120V |
3 |
|
Datasheet | TDML | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

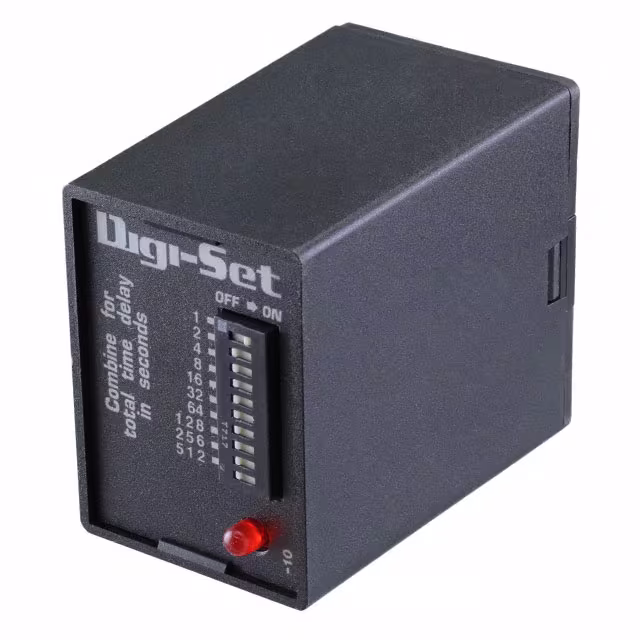

TDB120ALRELAY TIME DEL 1023SEC 10A 120V |
9 |
|
Datasheet | TDB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TRDU120A1RELAY TIME DELAY 1705HR 10A 120V |
11 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
