Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KRDB124RELAY TIME DELAY 100MIN 10A 125V |
0 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
HRDB117SRELAY TIME DELAY 7SEC 30A 125V |
0 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | Fixed, 7 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

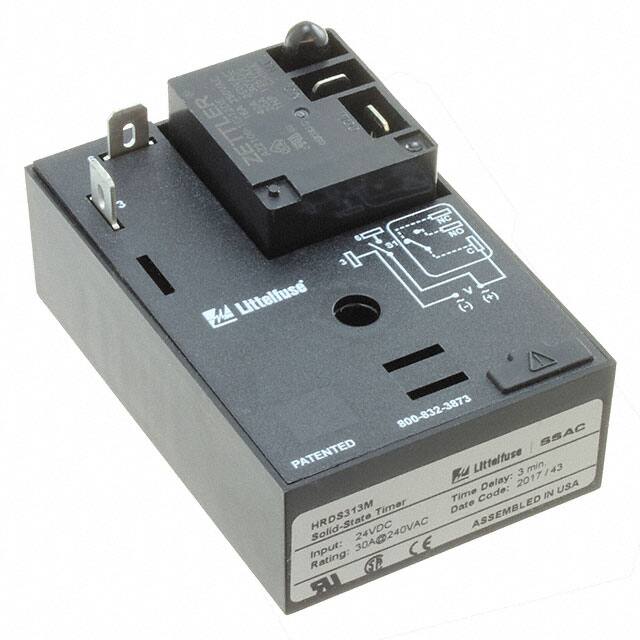

HRDS313MRELAY TIME DELAY 3MIN 30A 125V |
0 |
|
Datasheet | HRDS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | Fixed, 3 Min | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
HRDR121A4RRELAY TIME DELAY 100SEC 30A 125V |
0 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

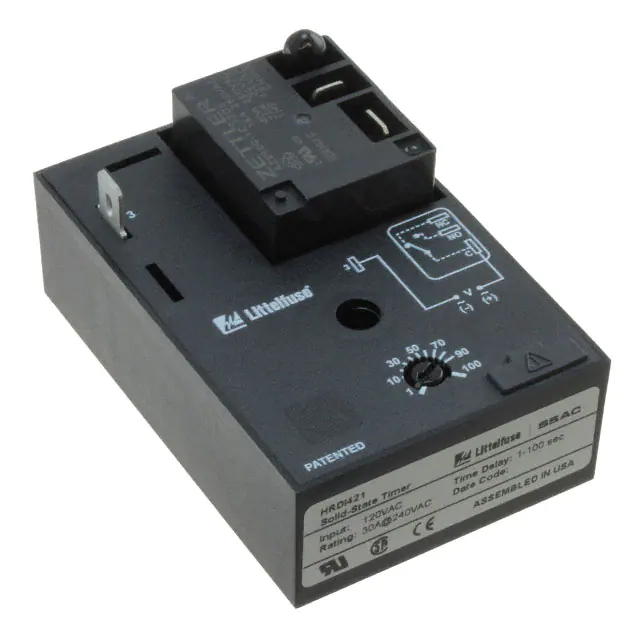

HRDI421RELAY TIME DELAY 100SEC 30A 125V |
1 |
|
Datasheet | HRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
HRDB223RELAY TIME DELAY 10MIN 30A 125V |
0 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.1 Min ~ 10 Min | 30A @ 125/240VAC | 24VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

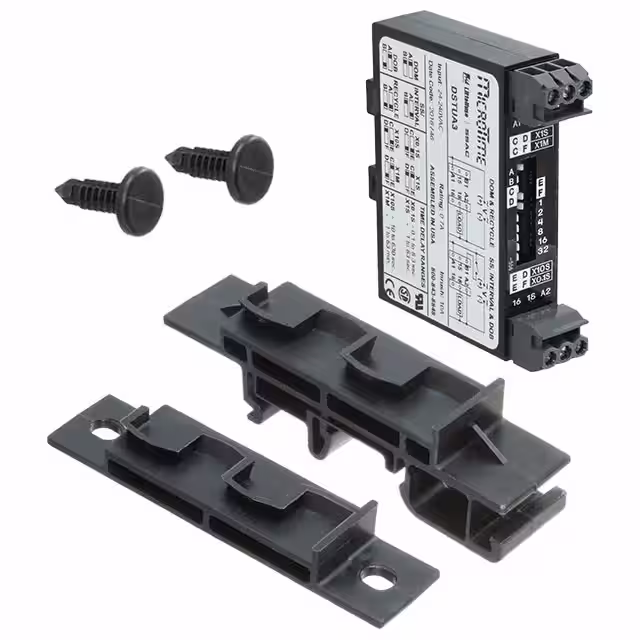

DSTUA3RELAY TIME DELAY 63MIN DIN RAIL |
0 |
|
Datasheet | DSTU | Bulk | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.1 Sec ~ 63 Min | - | 24 ~ 240VAC | Screw Terminal | DIP Switches | Input Voltage | - | - |
|

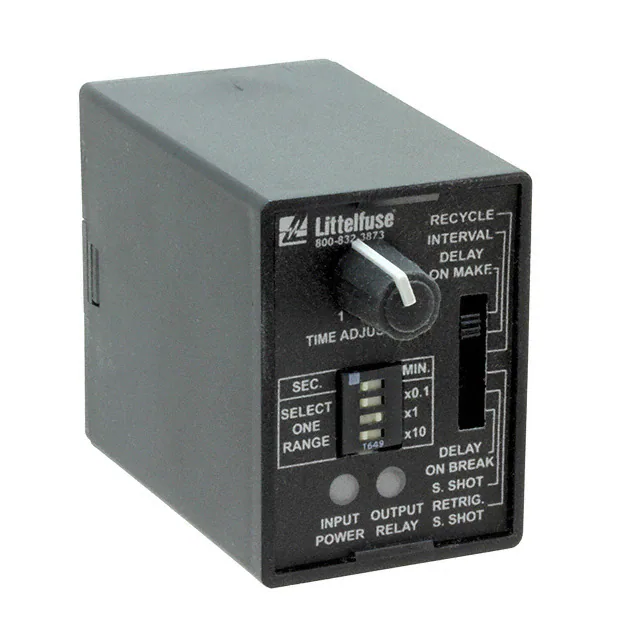

TRU2RELAY TIME DEL 1000MIN 10A 120V |
0 |
|
Datasheet | TRU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 1000 Min | 10A @ 120/240VAC | 19 ~ 264VAC, 19 ~ 30VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

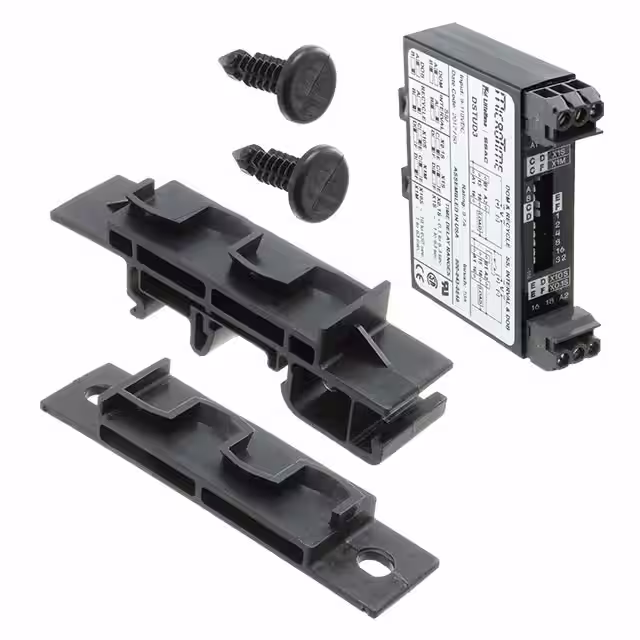

DSTUD3RELAY TIME DELAY 63MIN DIN RAIL |
1 |
|
Datasheet | DSTU | Bulk | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.1 Sec ~ 63 Min | - | 9 ~ 110VDC | Screw Terminal | DIP Switches | Input Voltage | - | - |
|
TDI120ALRELAY TIME DEL 1023SEC 10A 120V |
0 |
|
Datasheet | TDI | Bulk | Active | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

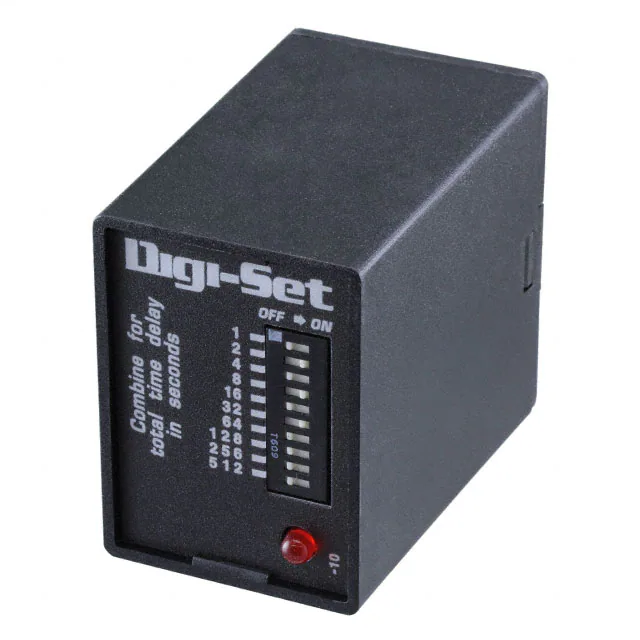

TDB120ALDRELAY TIME DEL 1023SEC 10A 120V |
0 |
|
Datasheet | TDB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

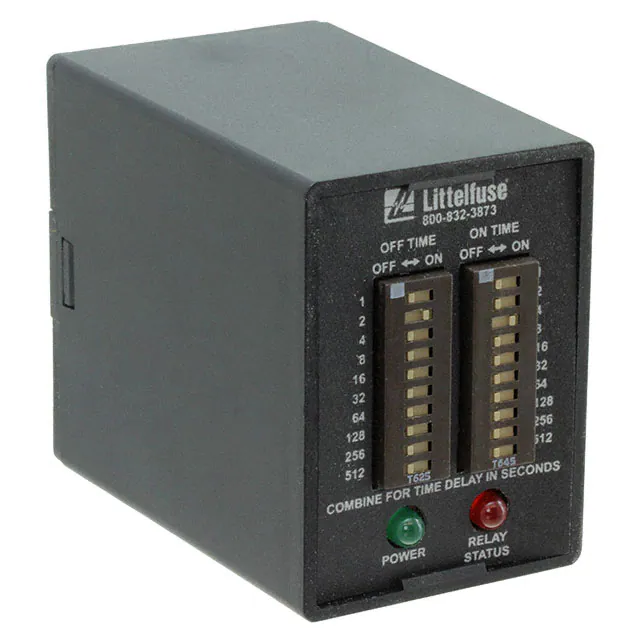

TDR4A22RELAY TIME DEL 1023SEC 10A 120V |
0 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR4A33RELAY TIME DEL 10230SEC 10A 120V |
0 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
TDS230ALRELAY TIME DEL 1023SEC 10A 120V |
1 |
|
Datasheet | TDS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 230VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TDR4A12RELAY TIME DEL 102.3SEC 10A 120V |
0 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
KRDI420RELAY TIME DELAY 10SEC 10A 125V |
4 |
|
Datasheet | KRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
HRDR331A1RELAY TIME DELAY 100SEC 30A 125V |
1 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
FA155RELAY TIME DELAY CHAS MT |
0 |
|
Datasheet | FA | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | - | - | 120VAC | Quick Connect - 0.250" (6.3mm) | - | Input Voltage | - | - |
|
FS126RC-45RELAY TIME DELAY 45FPM CHAS MT |
0 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 45 FPM | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|

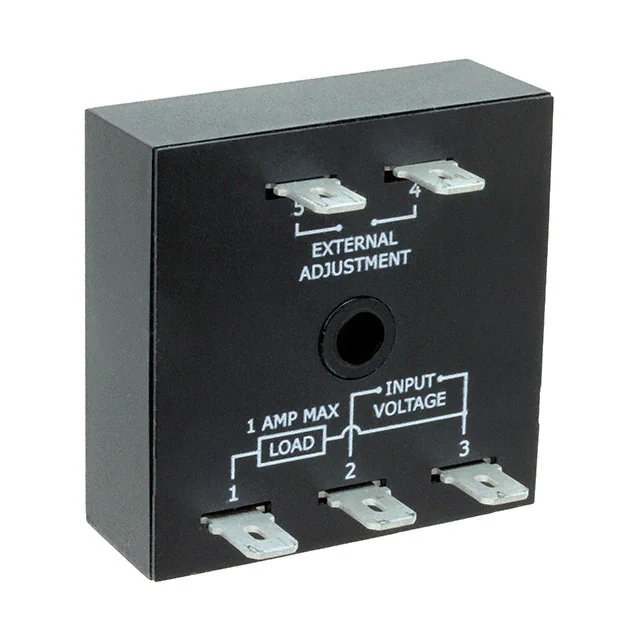

TS2223RELAY TIME DELAY 180SEC CHAS MT |
2 |
|
- |
TS2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 2 Sec ~ 180 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
