Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

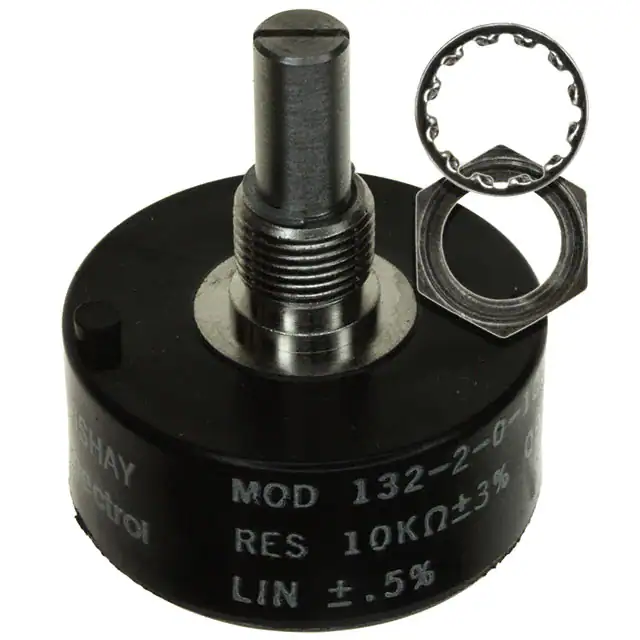

132B20103POT 10K OHM 2.75W WIREWOUND LIN |
25 |
|
Datasheet | 132 | Bulk | Active | 10k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

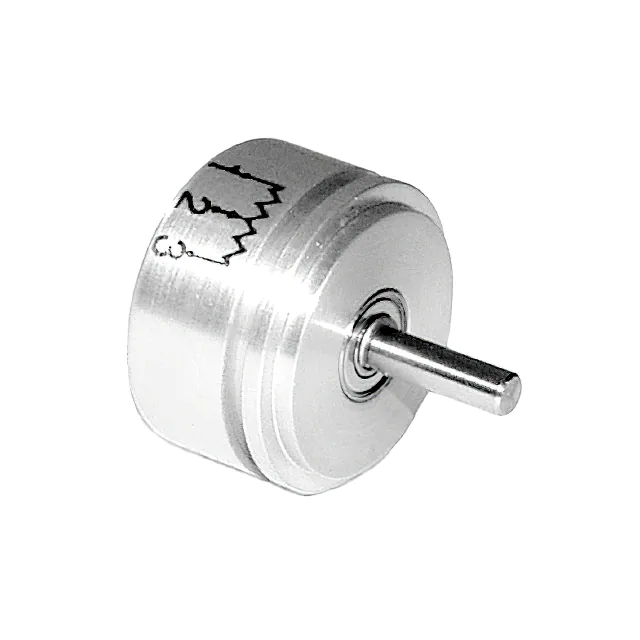

157S103MB9002POT 10K OHM 1W PLASTIC LINEAR |
24 |
|
Datasheet | 157 | Box | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | 3/8-32 | Servo Mount |
|

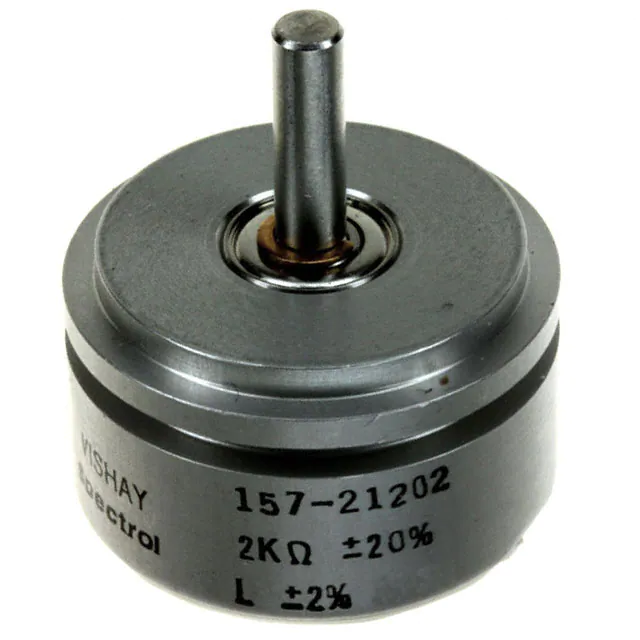

157S202MXPOT 2K OHM 1W PLASTIC LINEAR |
20 |
|
Datasheet | 157 | Bulk | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
860B1502POT 5K OHM 8W WIREWOUND LINEAR |
13 |
|
Datasheet | 860 | Box | Active | 5k | ±3% | 8W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
.jpg)
|
RT025AS1001KBPOT 1K OHM 25W WIREWOUND LINEAR |
2 |
|
Datasheet | RT25 | Bulk | Active | 1k | ±10% | 25W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
RT025AS4701KBPOT 4.7K OHM 25W WIREWOUND LIN |
5 |
|
Datasheet | RT25 | Bulk | Active | 4.7k | ±10% | 25W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P1004-16POT 1M OHM 1/4W WIREWOUND LINEAR |
53 |
|
Datasheet | P1004 | Bulk | Active | 1M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Wire Leads | Knurled and Slotted | - | - | - | Panel Mount |
|
14910F0GJSX10103KAPOT 10K OHM 1W CERMET LINEAR |
9 |
|
Datasheet | 149 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
PRV6SAABGYB25104KAPOT 100K OHM 1.5W CERMET LINEAR |
42 |
|
Datasheet | PRV6 | Box | Active | 100k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
PRV6SAABJYB25102KAPOT 1K OHM 1.5W CERMET LINEAR |
40 |
|
Datasheet | PRV6 | Box | Active | 1k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
PRV6SAABJYB25104KAPOT 100K OHM 1.5W CERMET LINEAR |
36 |
|
Datasheet | PRV6 | Box | Active | 100k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
PRV6SAABJYB25502KAPOT 5K OHM 1.5W CERMET LINEAR |
19 |
|
Datasheet | PRV6 | Box | Active | 5k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
|
PRV6SAABGYB25102KAPOT 1K OHM 1.5W CERMET LINEAR |
18 |
|
Datasheet | PRV6 | Box | Active | 1k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
PRV6SAABJXB25201KAPOT 200 OHM 1.5W CERMET LINEAR |
7 |
|
Datasheet | PRV6 | Box | Active | 200 | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
|
PRV6SAABBXB25252KAPOT 2.5K OHM 1.5W CERMET LINEAR |
7 |
|
Datasheet | PRV6 | Box | Active | 2.5k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.492" (12.50mm) | 0.125" (3.18mm) | - | Panel Mount |
|
|
14910A0BHSX10101KAPOT 100 OHM 1W CERMET LINEAR |
25 |
|
Datasheet | 149 | Box | Active | 100 | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Through Hole |
|
P11S1V0FLSY00472MAPOT 4.7K OHM 1W CERMET LINEAR |
43 |
|
Datasheet | P11S | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
|
14810A0BHSX10103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
22 |
|
Datasheet | 148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Through Hole |
|
|
14810A0BHSX10102KAPOT 1K OHM 1/2W PLASTIC LINEAR |
15 |
|
Datasheet | 148 | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Through Hole |
|
357B2202MAB251S22POT 2K OHM 1W PLASTIC LINEAR |
21 |
|
Datasheet | 357 | Box | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.866" (22.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
