Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

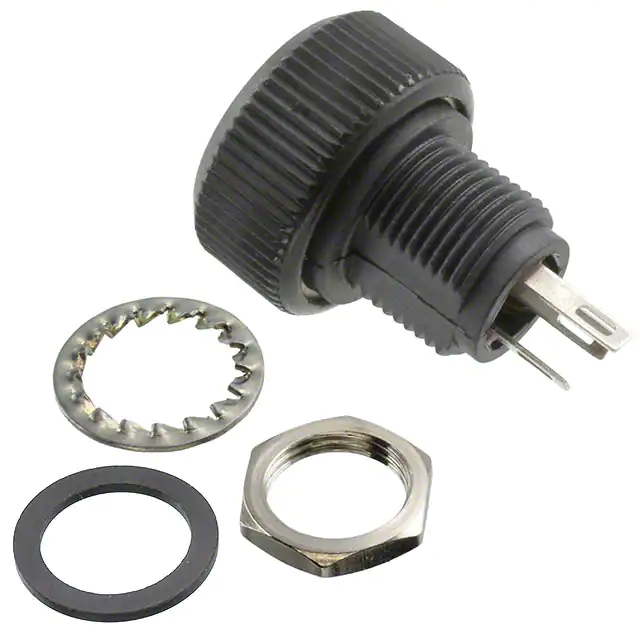

P16NP103MAB15POT 10K OHM 1W CERMET LINEAR |
551 |
|
Datasheet | P16 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP473MAB15POT 47K OHM 1W CERMET LINEAR |
268 |
|
Datasheet | P16 | Bulk | Active | 47k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

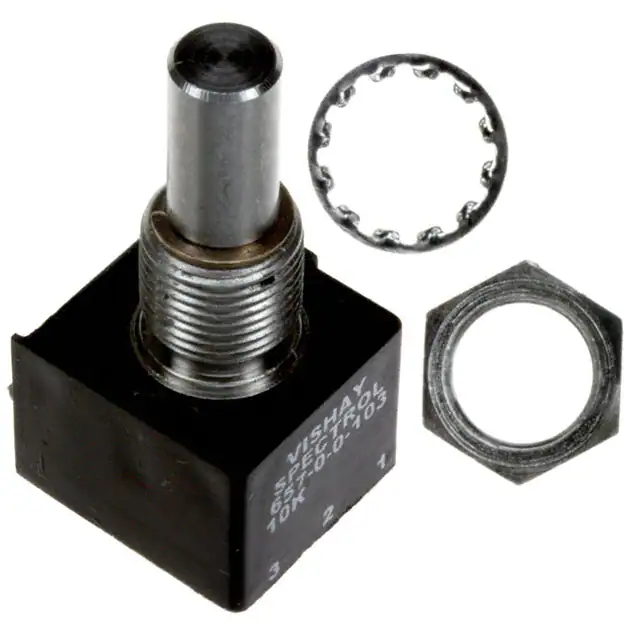

657BR0103POT 10K OHM 1W PLASTIC LINEAR |
232 |
|
Datasheet | 657 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 250° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
534B1502JCPOT 5K OHM 2W WIREWOUND LINEAR |
569 |
|
Datasheet | 534 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1103JCPOT 10K OHM 2W WIREWOUND LINEAR |
352 |
|
Datasheet | 534 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
533B1103JCPOT 10K OHM 1W WIREWOUND LINEAR |
127 |
|
Datasheet | 533 | Bulk | Active | 10k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
157S102MXPOT 1K OHM 1W PLASTIC LINEAR |
193 |
|
Datasheet | 157 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
P13SMNFGS103MAPOT 10K OHM 1.5W CERMET LINEAR |
200 |
|
Datasheet | P13SM | Bulk | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP472MAB15POT 4.7K OHM 1W CERMET LINEAR |
284 |
|
Datasheet | P16 | Bulk | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP222MAB15POT 2.2K OHM 1W CERMET LINEAR |
664 |
|
Datasheet | P16 | Bulk | Active | 2.2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP104MAB15POT 100K OHM 1W CERMET LINEAR |
297 |
|
Datasheet | P16 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
534B1102JLPOT 1K OHM 2W WIREWOUND LINEAR |
102 |
|
Datasheet | 534 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1104JCPOT 100K OHM 2W WIREWOUND LINEAR |
189 |
|
Datasheet | 534 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

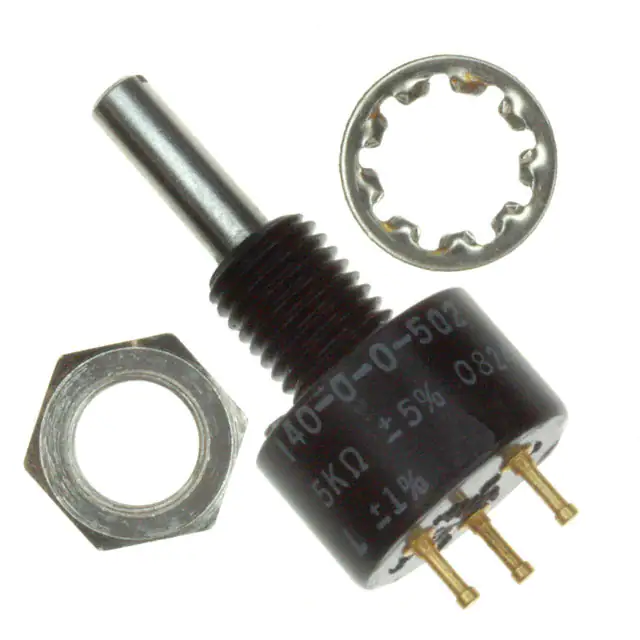

140B00502POT 5K OHM 2W WIREWOUND LINEAR |
39 |
|
Datasheet | 140 | Bulk | Active | 5k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.1248" (3.17mm) | 1/4-32 | Panel Mount |
|
P10YMAG104KB30POT 100K OHM 1/2W CERMET LINEAR |
182 |
|
Datasheet | P10 | Box | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
P10XXAI101KB30POT 100 OHM 1/2W CERMET LINEAR |
142 |
|
Datasheet | P10 | Box | Active | 100 | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
P10XXAI501KB30POT 500 OHM 1/2W CERMET LINEAR |
120 |
|
Datasheet | P10 | Box | Active | 500 | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
PRV6SAABGYB25503KAPOT 50K OHM 1.5W CERMET LINEAR |
115 |
|
Datasheet | PRV6 | Box | Active | 50k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
249BBHS0XB25503KAPOT 50K OHM 1W CERMET LINEAR |
162 |
|
Datasheet | 249 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P16NP105MAB15POT 1M OHM 1W CERMET LINEAR |
103 |
|
Datasheet | P16 | Bulk | Active | 1M | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
