Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11S1V0FLSY00223KAPOT 22K OHM 1W CERMET LINEAR |
138 |
|
Datasheet | P11S | Box | Active | 22k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

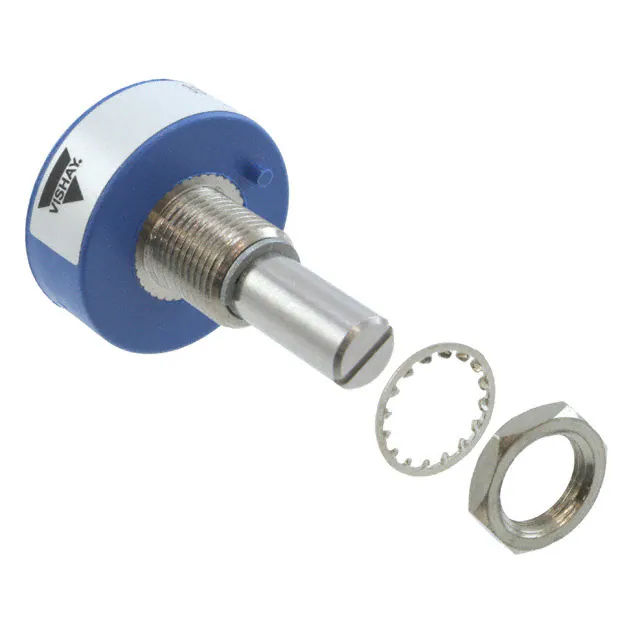

357B2103MAB251S22POT 10K OHM 1W PLASTIC LINEAR |
50 |
|
Datasheet | 357 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

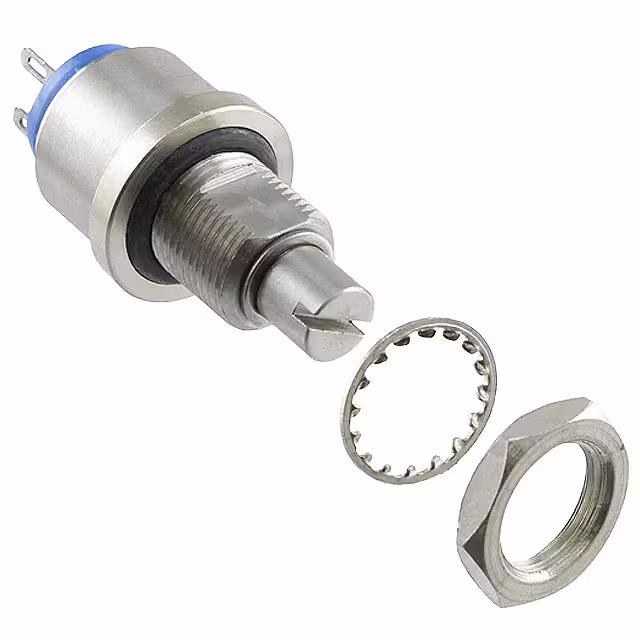

P13SMNFGS472MAPOT 4.7K OHM 1.5W CERMET LINEAR |
27 |
|
Datasheet | P13SM | Bulk | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P16NP102MAB15POT 1K OHM 1W CERMET LINEAR |
63 |
|
Datasheet | P16 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NM103MAB15POT 10K OHM 1W CERMET LINEAR |
71 |
|
Datasheet | P16 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
535B1502JCPOT 5K OHM 1.5W WIREWOUND LINEAR |
70 |
|
Datasheet | 535 | Bulk | Active | 5k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
860B1202POT 2K OHM 8W WIREWOUND LINEAR |
10 |
|
Datasheet | 860 | Box | Active | 2k | ±3% | 8W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
152S502POT 5K OHM 2W WIREWOUND LINEAR |
12 |
|
Datasheet | 152 | Box | Active | 5k | ±3% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 360° | Wirewound | Solder Lug | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | - | Servo Mount |
|
|
P16NP103MAB15F1POT 10K OHM 1W CERMET LINEAR |
78 |
|
Datasheet | P16 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
PRV6SAABGYB25103KAPOT 10K OHM 1.5W CERMET LINEAR |
50 |
|
Datasheet | PRV6 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
P11S1V0FGSY00103JAPOT 10K OHM 1W CERMET LINEAR |
33 |
|
Datasheet | P11S | Box | Active | 10k | ±5% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
.jpg)
|
P11S1V0FLSY00103KLPOT 10K OHM 1/2W CERMET LOG |
20 |
|
Datasheet | P11S | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
357B0502MAB251S22POT 5K OHM 1W PLASTIC LINEAR |
70 |
|
Datasheet | 357 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
534B1201JCPOT 200 OHM 2W WIREWOUND LINEAR |
40 |
|
Datasheet | 534 | Bulk | Active | 200 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1501JCPOT 500 OHM 2W WIREWOUND LINEAR |
28 |
|
Datasheet | 534 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1202JCPOT 2K OHM 2W WIREWOUND LINEAR |
22 |
|
Datasheet | 534 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B1203JCPOT 20K OHM 2W WIREWOUND LINEAR |
9 |
|
Datasheet | 534 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
P16NP103KAB15POT 10K OHM 1W CERMET LINEAR |
86 |
|
Datasheet | P16 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
536B102POT 1K OHM 2W WIREWOUND LINEAR |
57 |
|
Datasheet | 536 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P16NM103MAB15F1POT 10K OHM 1W CERMET LINEAR |
31 |
|
Datasheet | P16 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
