Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6624US/TRDIODE GEN PURP 990V 1A D-5A |
7,488 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 900 V | - | - | - | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
1N6624U/TRDIODE GP 990V 1A A SQ-MELF |
3,623 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 990 V | - | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
LSIC2SD120E30CCDIODE SIL CARB 1.2KV 44A TO247AD |
9,654 |
|
Datasheet | Gen2 | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 44A | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 920pF @ 1V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|

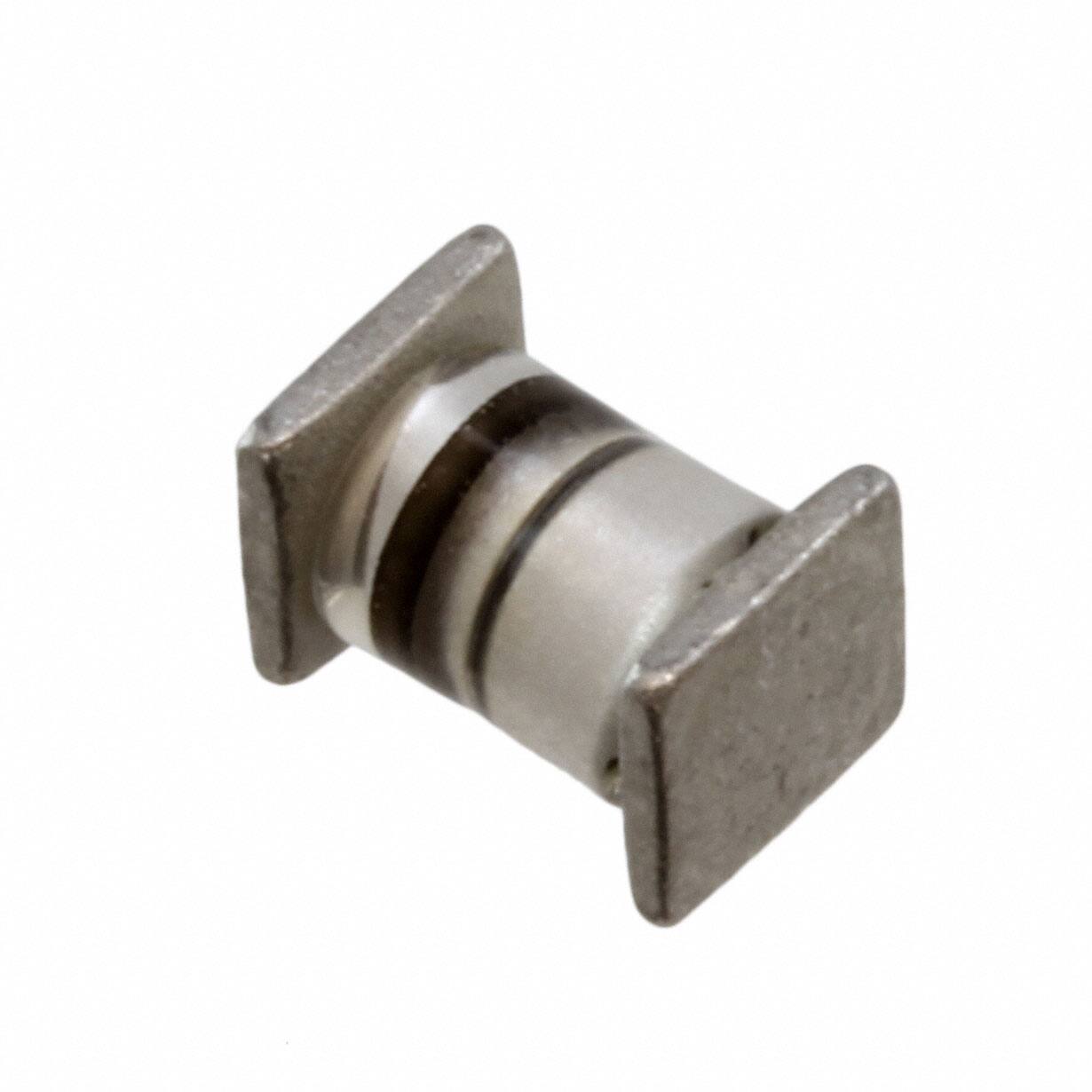

JAN1N6627USDIODE GEN PURP 440V 1.75A D-5B |
3,400 |
|
Datasheet | - | SQ-MELF, E | Bulk | Discontinued at Digi-Key | Standard | 440 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
JANTX1N6620US/TRDIODE GEN PURP 220V 2A D-5A |
2,039 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 220 V | 2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6630/TRDIODE GEN PURP 900V 3A E AXIAL |
5,997 |
|
- |
- | E, Axial | Tape & Reel (TR) | Active | Standard | 900 V | 3A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 990 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | E, Axial | -65°C ~ 175°C |
|
|
JANTX1N6620U/TRDIODE GP 220V 1.2A A SQ-MELF |
5,868 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 220 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 500 nA @ 220 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JANTX1N6626DIODE GEN PURP 220V 1.75A AXIAL |
3,151 |
|
Datasheet | - | E, Axial | Bulk | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | - | -65°C ~ 150°C |
|
|
1N6075/TRDIODE GEN PURP 150V 850MA |
9,702 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 850mA | 2.04 V @ 9.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 150 V | - | - | - | Through Hole | A, Axial | -65°C ~ 155°C |
|
|
JANTXV1N5807DIODE GEN PURP 50V 3A AXIAL |
5,059 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 50 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTXV1N5809DIODE GEN PURP 100V 3A AXIAL |
2,188 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTXV1N5811DIODE GEN PURP 150V 3A AXIAL |
9,762 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTXV1N5620USDIODE GEN PURP 800V 1A A SQ-MELF |
8,249 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
|
JANTXV1N5621USDIODE GEN PURP 800V 1A D-5A |
9,957 |
|
Datasheet | - | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | 20pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTXV1N5620US/TRDIODE GEN PURP 800V 1A A SQ-MELF |
7,038 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
|
|
JANTX1N6626/TRDIODE GEN PURP 220V 1.75A |
3,322 |
|
- |
- | E, Axial | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | - | -65°C ~ 150°C |
|
|
JANTXV1N5811/TRDIODE GEN PURP 150V 3A |
3,518 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTXV1N5809/TRDIODE GEN PURP 100V 3A |
3,098 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTXV1N5807/TRDIODE GEN PURP 50V 3A |
2,938 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 50 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | 65pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N6073DIODE GEN PURP 50V 850MA AXIAL |
3,397 |
|
Datasheet | - | A, Axial | Bulk | Discontinued at Digi-Key | Standard | 50 V | 850mA | 2.04 V @ 9.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 50 V | - | - | - | Through Hole | A, Axial | -65°C ~ 155°C |
