Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N6625US/TRDIODE GEN PURP 1.1KV 1A D-5A |
2,209 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 1100 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
9,328 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|

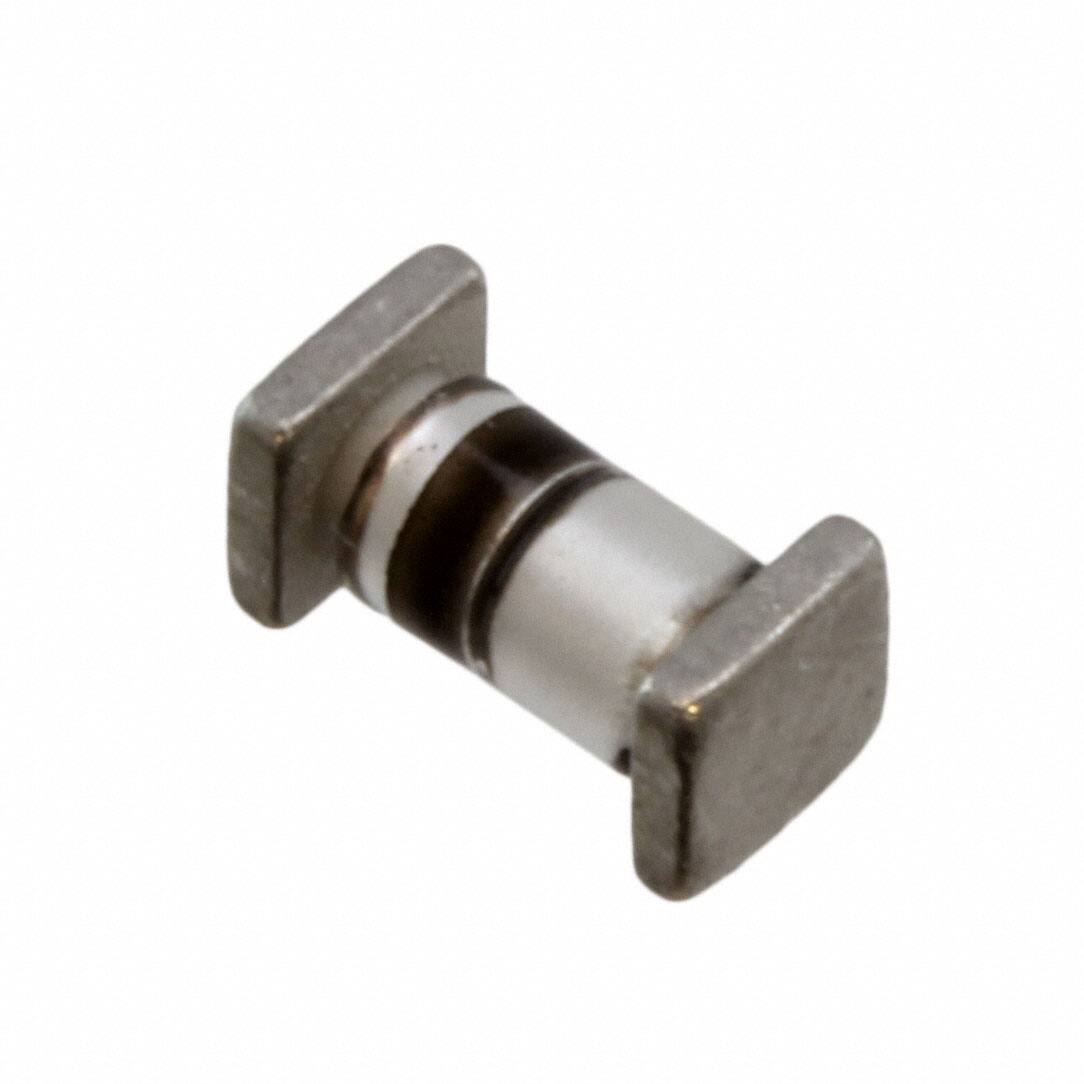

JAN1N6620USDIODE GEN PURP 220V 2A D-5A |
6,011 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 220 V | 2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6620UDIODE GEN PURP 200V 1.2A D-5A |
8,071 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N5190/TRDIODE GEN PURP 600V 3A |
4,324 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
|
|
JANTX1N5189/TRDIODE GEN PURP 500V 3A B |
3,409 |
|
- |
- | Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B | -65°C ~ 175°C |
|
|
JAN1N6625US/TRUFR,FRR |
2,071 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6624US/TRUFR,FRR |
6,128 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 900 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 900 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JANTXV1N3595AUSDIODE GP 125V 150MA DO213AA |
3,752 |
|
- |
- | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 2 nA @ 125 V | - | Military | MIL-PRF-19500/241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N6621US/TRDIODE GEN PURP 75V 200MA D-5A |
5,479 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 2.8pF @ 1.5V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
JAN1N6626US/TRDIODE GEN PURP 220V 1.75A D-5B |
6,141 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JAN1N6622US/TRDIODE GEN PURP 660V 1.2A D-5A |
4,267 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 660 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 660 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JAN1N6627US/TRDIODE GEN PURP 440V 1.75A D-5B |
8,914 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JAN1N6626U/TRDIODE GP 220V 1.75A SQ-MELF |
5,771 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6624U/TRDIODE GP 990V 1A A SQ-MELF |
8,112 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 990 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
5,246 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6622U/TRDIODE GP 660V 1.2A A SQ-MELF |
7,895 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 660 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 500 nA @ 660 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6621U/TRDIODE GP 440V 1.2A A SQ-MELF |
5,737 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 440 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 500 nA @ 440 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6627U/TRDIODE GP REV 400V 4A E-MELF |
3,002 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 400 V | 4A | - | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 400 V | - | Military | MIL-PRF-19500/590 | Surface Mount | E-MELF | - |
|
|
JANTXV1N5415USDIODE GEN PURP 50V 3A D-5B |
3,801 |
|
Datasheet | - | SQ-MELF, E | Bulk | Discontinued at Digi-Key | Standard | 50 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 50 V | - | Military | MIL-PRF-19500/411 | Surface Mount | D-5B | -65°C ~ 175°C |
