PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGRF600-2PTC RESET FUSE 16V 6A RADIAL |
3,498 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.7 A | 100 A | 3.5 s | 9.5 mOhms | 28 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.724" (18.40mm) | - | 0.199" (5.05mm) |
|
250R120ZRPTC RESET FUSE 60V 120MA RADIAL |
8,268 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
AHRF450-2PTC RESET FUSE 16V 4.5A RADIAL |
4,847 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.614" (15.60mm) | - | 0.200" (5.08mm) |
|
VLR170FPTC RESET FUSE 12V 1.7A STRAP |
5,431 |
|
Datasheet | Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.866" L x 0.146" W (22.00mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
VTP170XSFPTC RESET FUSE 16V 1.7A STRAP |
2,780 |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | - | - | - | -40°C ~ 85°C | - | - | - | User Defined | 0.862" L x 0.201" W (21.90mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
|
AGRF900-2PTC RESET FUSE 16V 9A RADIAL |
4,059 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 6 s | 4.1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
|
AHRL550PTC RESET FUSE 5.5A 16V RAD |
9,953 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 5.5 A | 11 A | 50 A | 6 s | 12 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" L x 0.118" W (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
|
AHRL1500PTC RESET FUSE 15A 16V RAD |
3,590 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 15 A | 30 A | 100 A | 18 s | 2.9 mOhms | 4.3 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.724" L x 0.142" W (18.40mm x 3.60mm) | 1.039" (26.40mm) | - | 0.400" (10.15mm) |
|
LSP380PTC RESET FUSE 16V 3.8A |
9,687 |
|
Datasheet | Strap | PolySwitch®, LSP | Bag | Active | Polymeric | 16V | 3.8 A | 8 A | 50 A | 5 s | 13 mOhms | 37 mOhms | 21 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | User Defined | 0.787" L x 0.205" W (20.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
TRF600-150SPTC RESET FUSE 250V 150MA RADIAL |
9,993 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
AGRF1100PTC RESET FUSE 16V 11A RADIAL |
2,903 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 11 A | 20.3 A | 100 A | 7.5 s | 3.3 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.199" (5.05mm) |
|
TRF600-150-RB-B-0.5PTC RESET FUSE 250V 150MA RADIAL |
81 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
TSL250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
8,317 |
|
Datasheet | 2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | 0.146" (3.70mm) | - | - |
|
|
AHRL1200PTC RESET FUSE 12A 16V RAD |
7 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 12 A | 24 A | 100 A | 12.5 s | 3.5 mOhms | 5.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.921" (23.40mm) | - | 0.400" (10.15mm) |
|
1210L350/12SLYRPTC RESET FUSE 6V 3.5A 1210 |
4,409 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|

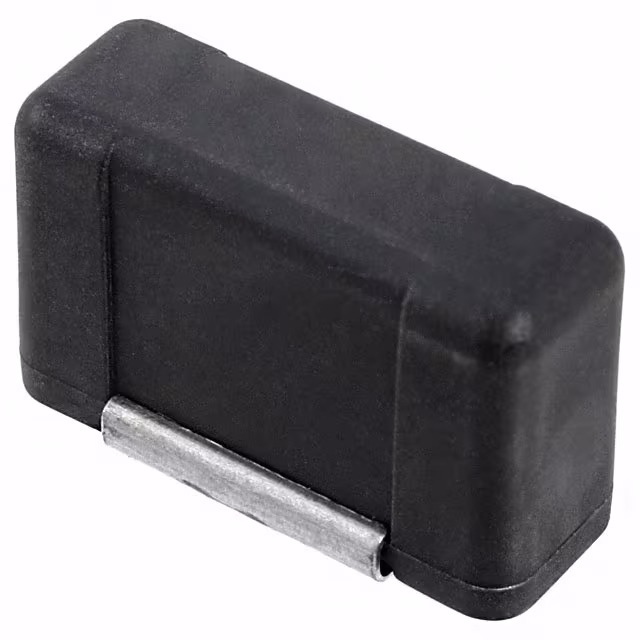

TS600-200F-RA-B-0.5-2PTC RESET FUSE 60V 200MA 2SMD |
6,772 |
|
Datasheet | 2-SMD | PolySwitch®, TS600 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 200 mA | 400 mA | 3 A | 10 s | 4 Ohms | 13.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.742" L x 0.297" W (18.85mm x 7.55mm) | - | 0.484" (12.30mm) | - |
|
RUSBF185PTC RESET FUSE 16V 1.85A RADIAL |
9,831 |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.199" (5.05mm) |
|
RXEF020-APPTC RESET FUSE 72V 200MA RADIAL |
78 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|
TRF250-090UTPTC RESET FUSE 60V 90MA RADIAL |
6,800 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Obsolete | Polymeric | 60V (250V Int) | 90 mA | 180 mA | 3 A | - | 8 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|
|
SMD1812P075TSAPTC RESET FUSE 13.2V 750MA 1812 |
3,768 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.025" (0.63mm) | - |
