PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLR175LFPTC RESET FUSE 12V 1.75A STRAP |
3,920 |
|
Datasheet | Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 1.201" L x 0.122" W (30.50mm x 3.10mm) | - | 0.032" (0.80mm) | - |
|

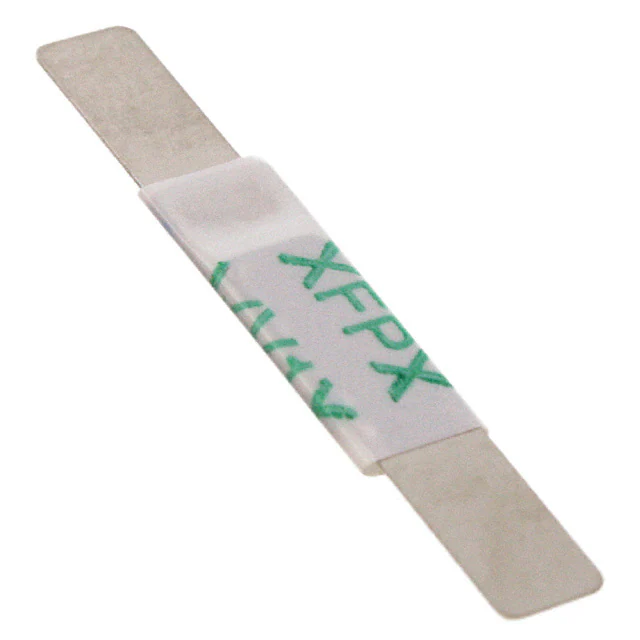

VTP175FPTC RESET FUSE 16V 1.75A STRAP |
8,057 |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.75 A | 3.6 A | 100 A | 5 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.874" L x 0.146" W (22.20mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
RGEF700-1PTC RESET FUSE 16V 7A RADIAL |
7 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
AGRF500PTC RESET FUSE 16V 5A RADIAL |
2,710 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 5 A | 9.4 A | 100 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|
AHRF450PTC RESET FUSE 16V 4.5A RADIAL |
2 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
AHRF600PTC RESET FUSE 16V 6A RADIAL |
2,768 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 6 A | 12 A | 100 A | 6.5 s | 10 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
RXEF090-APPTC RESET FUSE 72V 900MA RADIAL |
2,207 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.622" (15.80mm) | - | 0.199" (5.05mm) |
|
LR4-600XFPTC RESET FUSE 20V 6A STRAP |
3,129 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bulk | Active | Polymeric | 20V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.638" L x 0.283" W (41.60mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|
RGEF300KPTC RESET FUSE 16V 3A RADIAL |
16 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
SMD250F/15-2920-2PTC RESET FUSE 15V 2.5A 2SMD |
7,742 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 2.5 A | 5 A | 40 A | 10 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
72R135XFPTC RESET FUSE 72V 1.35A RADIAL |
7,634 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 72R | Bulk | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.122" T (13.58mm x 3.10mm) | 0.780" (19.80mm) | - | 0.201" (5.10mm) |
|
RHEF400-2PTC RESET FUSE 16V 4A RADIAL |
6,258 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.199" (5.05mm) |
|
RGEF600KPTC RESET FUSE 16V 6A RADIAL |
6,509 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.709" (18.00mm) | - | 0.199" (5.05mm) |
|
VTP110FPTC RESET FUSE 16V 1.1A STRAP |
5,170 |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.1 A | 2.7 A | 100 A | 5 s | 38 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.008" L x 0.114" W (25.60mm x 2.90mm) | - | 0.028" (0.70mm) | - |
|
|
RGEF600K-APPTC RESET FUSE 16V 6A RADIAL |
5,644 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.709" (18.00mm) | - | 0.199" (5.05mm) |
|
2920L260PRPTC RESET FUSE 6V 2.6A 2920 |
2,706 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 40 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
AHRF1100PTC RESET FUSE 16V 11A RADIAL |
3,348 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 11 A | 21.2 A | 100 A | 11 s | 4.8 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.400" (10.15mm) |
|

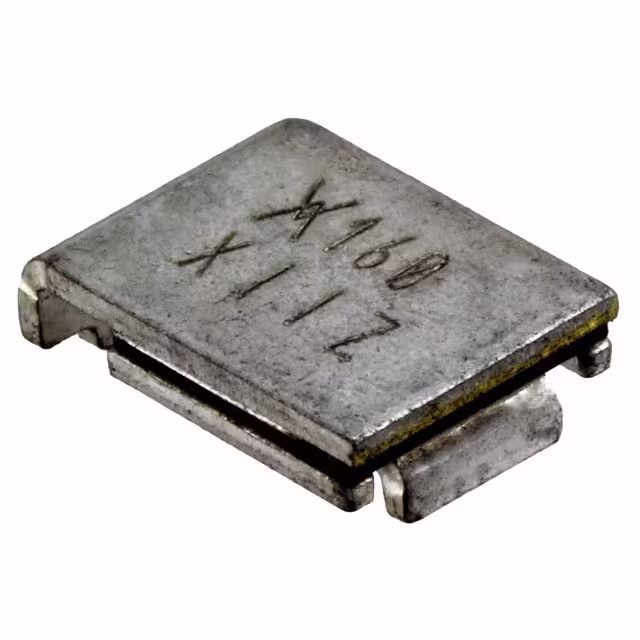

SMDH160-2PTC RESET FUSE 16V 1.6A 2SMD |
25 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 70 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
TRF250-183-2PTC RESET FUSE 100V 183MA RADIAL |
5,073 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.295" Dia x 0.161" T (7.50mm x 4.10mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
TRF250-120US-2PTC RESET FUSE 60V 120MA RADIAL |
16 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
