PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-120T-R1-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
28 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
250R145ZRPTC RESET FUSE 60V 145MA RADIAL |
9,512 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|

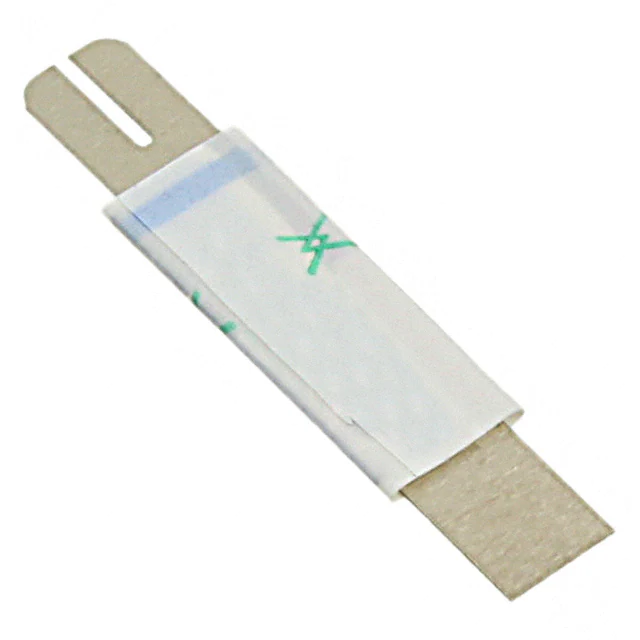

LR4-260SFPTC RESET FUSE 15V 2.6A STRAP |
9,327 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 15V | 2.6 A | 5.8 A | 100 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | - | - |
|
AGRF800PTC RESET FUSE 16V 8A RADIAL |
14 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
TRF250-184PTC RESET FUSE 100V 184MA RADIAL |
4,719 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 184 mA | 1 A | 10 A | 1.3 s | 1.2 Ohms | 3.1 Ohms | - | 0°C ~ 85°C | - | - | - | Through Hole | 0.303" Dia x 0.181" T (7.70mm x 4.60mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
RXEF375KPTC RESET FUSE 72V 3.75A RADIAL |
7,924 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.035" Dia x 0.118" T (26.30mm x 3.00mm) | 1.224" (31.10mm) | - | 0.400" (10.15mm) |
|
RGEF1400-1PTC RESET FUSE 16V 14A RADIAL |
57 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.114" W (23.50mm x 2.90mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
|
RGEF1200-2PTC RESET FUSE 16V 12A RADIAL |
6,087 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
16R800GFPTC RESET FUSE 16V 8A RADIAL |
6,196 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 16R | Bulk | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
LVR125K-240PTC RESET FUSE |
11 |
|
Datasheet | Radial, Disc | LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | 253 mOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia (21.20mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
TRF600-250PTC RESET FUSE 250V 250MA RADIAL |
2,888 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bulk | Active | Polymeric | 250V (600V Int) | 250 mA | 850 mA | 3 A | 1 s | 1 Ohms | 7 Ohms | 4.3 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.591" L x 0.181" W (15.00mm x 4.60mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
SMDCH125F/24-02PTC RESET FUSE 24V 1.25A 2920 |
9,413 |
|
Datasheet | 2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 24V | 1.25 A | 2.5 A | 20 A | 500 ms | - | - | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.055" (1.40mm) | - |
|
TS600-400F-2PTC RESET FUSE 60V 400MA 2SMD |
7,765 |
|
Datasheet | 2-SMD | PolySwitch®, TS600 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 400 mA | 1 A | 60 A | 14 s | 500 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.742" L x 0.305" W (18.85mm x 7.75mm) | - | 0.484" (12.30mm) | - |
|
RXEF065SPTC RESET FUSE 72V 650MA RADIAL |
7,624 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.571" (14.50mm) | - | 0.199" (5.05mm) |
|
RUSBF120PTC RESET FUSE 6V 1.2A RADIAL |
4,826 |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 6V | 1.2 A | 2 A | 40 A | 500 ms | 70 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
VLP175UAFPTC RESET FUSE 16V 1.75A STRAP |
7,260 |
|
Datasheet | Strap | PolySwitch®, VLP | Bulk | Active | Polymeric | 16V | 1.75 A | 3.9 A | 60 A | 5 s | 23 mOhms | 82 mOhms | - | - | - | - | - | User Defined | - | 0.028" (0.70mm) | - | - |
|
RUSBF135PTC RESET FUSE 16V 1.35A RADIAL |
3,822 |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 112 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
RUSBF160PTC RESET FUSE 16V 1.6A RADIAL |
4 |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
RGEF400KPTC RESET FUSE 16V 4A RADIAL |
3,329 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
RUEF160SPTC RESET FUSE 30V 1.6A RADIAL |
37 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bulk | Active | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
