Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5315-F5CYMT TRLOW VOLTAGE DUAL 300 MILLAMPLDO |
1,990 |
|
Datasheet | - | 10-UFDFN, 10-TMLF® | Bulk | Active | Positive | Fixed | 2 | 5.5V | 1.5V, 1.3V, 1V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 12 µA | 12 µA | 65dB ~ 40dB (1kHz ~ 20kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-TMLF® (2x2) |
|
LM7912CTLM79 3-TERMINAL, 1.5A NEGATIVE V |
460 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LP38692MP-2.5LP38692 1A LOW DROPOUT CMOS LINE |
16,000 |
|
Datasheet | - | TO-261-5, TO-261AB | Bulk | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 1.3V @ 1A | 1A | - | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
LP3879SD-1.0/NOPBLP3879 MICROPOWER 800MA LOW NOIS |
5,195 |
|
Datasheet | - | 8-WDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 6V | 1V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
L78MS05JSMP-A-DLM-EL78MS05 - POWER MANAGEMENT SPECI |
2,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLE4470GSIC REG LINEAR FIXED POS LDO REG |
366 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 2 | 45V | 5V, (5V), Tracking | 20V | 0.5V @ 100mA, 0.6V @ 200mA | 180mA, 350mA | 500 µA | 15 mA | 60dB (20Hz ~ 20kHz), 60dB (20Hz ~ 20kHz) | Enable, Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
TLE42672GATMA2CTTLE4267 - LINEAR VOLTAGE REGULAT |
335 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 400mA | 400mA | 4 mA | 80 mA | 54dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-1 |
|
TPS79428DGNRTPS794 ULTRALOW-NOISE, HIGH-PSRR |
4,000 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.21V @ 250mA | 250mA | 220 µA | - | 65dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS79433QDCQRQ1FIXED POSITIVE LDO REGULATOR, 3. |
4,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIC37301-1.8WR TR3.0AMP, LOW-VOLTAGE MICROCAP LDO |
4,052 |
|
Datasheet | - | SPAK-5 (5 Leads + Tab) | Bulk | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.5V @ 3A | 3A | - | 50 mA | - | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | S-PAK-5 |
|
TLE42672GATMA2TLE4267-2G - LINEAR VOLTAGE REGU |
42,202 |
|
Datasheet | OPTIREG™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Bulk | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 400mA | 400mA | 4 mA | 80 mA | 54dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-1 |
|
NCV4274ADT33RKGFixed Positive Standard Regulato |
21,096 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 1.27V @ 250mA | 400mA | 250 µA | 45 mA | 60dB (100Hz) | - | Load Dump, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
MIC3775-1.8YMM750 MA MICROCAP LOW-VOLTAGE LOW- |
7,719 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.5V @ 750mA | 750mA | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
NCV86601BDT50RKGFixed Positive LDO Regulator, 5V |
9,337 |
|
- |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
MIC5209-3.0YM500MA LOW-NOISE LDO REGULATOR |
1,320 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.6V @ 500mA | 500mA | 170 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TLE4299GMV33XUMA2TLE42994 - LINEAR VOLTAGE REGULA |
127,500 |
|
Datasheet | OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 45V | 3.3V | - | - | 150mA | 105 µA | - | 66dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
LP2986IM-5.0LP2986 MICROPOWER, 200 MA ULTRA |
6,365 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 200mA | 200mA | 150 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MIC5209-2.5YUIC REG LINEAR 2.5V 500MA TO263-5 |
9,980 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.6V @ 500mA | 500mA | 170 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
MIC5209-1.8YU500MA LOW-NOISE LDO REGULATOR |
9,807 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.6V @ 500mA | 500mA | 170 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|

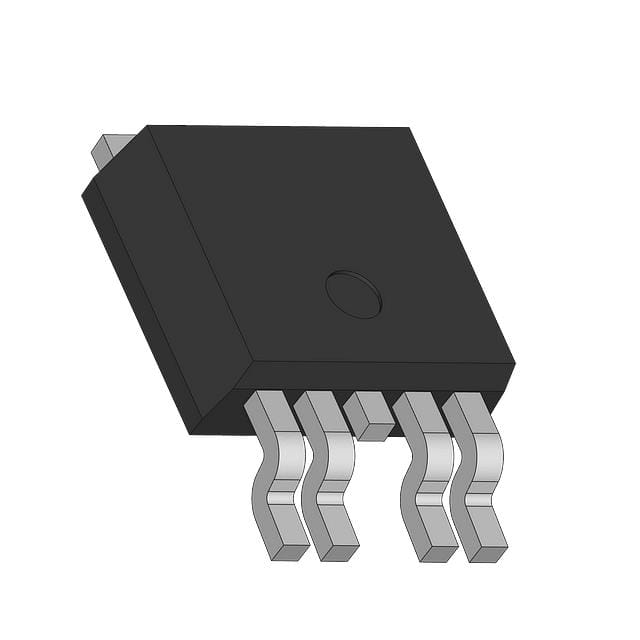

TPS7A6050QKVUQ1TPS7A60-Q1 300-MA 40-V LOW-DROPO |
822 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Bulk | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 300mA | 40 µA | - | 60dB ~ 30dB (100Hz ~ 150kHz) | Enable, Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C | - | - | Surface Mount | TO-252-5 |
