Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

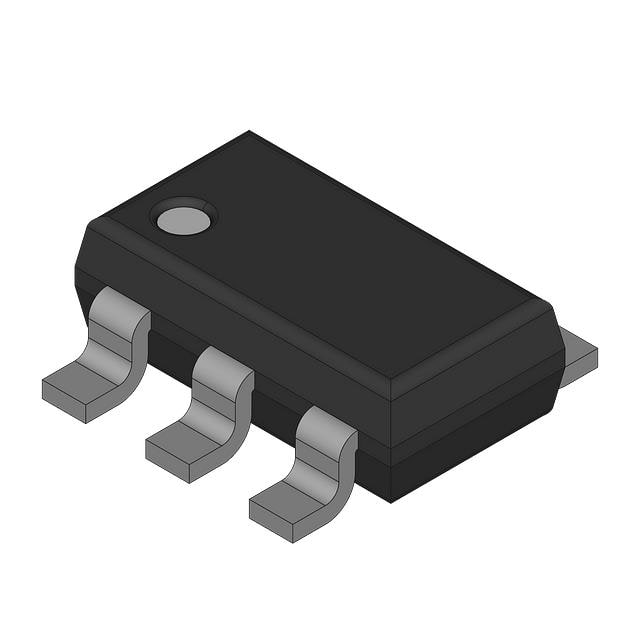

MIC5301-2.5YD5 TRSINGLE, 150 MICRO AMP ULDO |
12,213 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.1V @ 150mA | 150mA | 120 µA | - | 75dB ~ 50dB (1kHz ~ 20kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
NCV8154MN300300TBGLDO REGULATOR, 300 MA, LOW DROPO |
3,000 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Bulk | Active | Positive | Fixed | 2 | 5.25V | 3V, 3V | - | -, - | 300mA, 300mA | 100 µA | 200 µA | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
MIC5318-1.3YD5 TRHIGH PERFORMANCE 300 MA MICROCAP |
2,995 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Active | Positive | Fixed | 1 | 6V | 1.3V | - | - | 300mA | 150 µA | - | 75dB ~ 55dB @ 1kHz ~ 20kHz | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
RP103K121D-TR-FFRP103K - Low Noise 150mA LDO Reg |
30,000 |
|
Datasheet | RP103x | 4-UDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.62V @ 150mA | 150mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | DFN(PL)1010-4 |
|
SCD7815BTGSCD7815BTG - SCD7815 - 1.5A, Wid |
11,142 |
|
- |
- | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1A | - | - | 58dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
UA79M08CKVURG3UA79M 0.5-A, -25-V, NEGATIVE LIN |
10,950 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Negative | Fixed | 1 | -25V | -8V | - | 1.1V @ 5mA | 500mA | - | - | 59dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
MIC5306-2.5YD5IC REG LIN 2.5V 150MA TSOT23-5 |
7,171 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 150mA | 150mA | 25 µA | - | 62dB ~ 35dB (10Hz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
KA7908TUFIXED NEGATIVE STANDARD REGULATO |
5,000 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -8V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCV7809BTGLINEAR VOLTAGE REGULATOR, 1 A VO |
3,250 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 9V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 61dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCP4687DSN28T1GNCP4687 - LINEAR VOLTAGE REGULAT |
3,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FAN2502S25XFIXED POSITIVE LDO REGULATOR, 2. |
18,000 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MIC5301-1.3YMT TRSINGLE, 150 MICRO AMP ULDO |
16,329 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.1V @ 150mA | 150mA | 120 µA | - | 75dB ~ 50dB (1kHz ~ 20kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
|
MIC5318-2.6YMT TRHIGH PERFORMANCE 300 MA MICROCAP |
15,000 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 6V | 2.6V | - | - | 300mA | 150 µA | - | 75dB ~ 55dB @ 1kHz ~ 20kHz | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|
L78LR05EL-TL-ELINEAR REGULATOR |
4,200 |
|
Datasheet | - | 5-SSIP | Bulk | Active | Positive | Fixed | 1 | 20V | 5V | - | 2.2V @ 40mA | 150mA | - | - | 79dB (120Hz) | Reset | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Through Hole | - |
|
TL780-15CKTEFIXED POSITIVE STANDARD REGULATO |
3,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4625HSN33T1GNCP4625 - LINEAR VOLTAGE REGULAT |
180,480 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.85V @ 300mA | 300mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
LP5990TM-3.6/NOPBLP5990 MICROPOWER 200MA LOW-DROP |
32,000 |
|
Datasheet | - | 4-WFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.25V @ 200mA | 200mA | 75 µA | - | 55dB (10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA (0.9x0.9) |
|
FAN2503S33XCMOS LOW DROPOUT VOLTAGE REGULAT |
9,000 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
KA78M05TUFIXED POSITIVE STANDARD REGULATO |
1,472 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TL750M10CKTETL750M 750-MA, 26-V LOW DROPOUT |
7,000 |
|
Datasheet | - | TO-252-4, DPAK (3 Leads + Tab) | Bulk | Active | Positive | Fixed | 1 | 26V | 10V | - | 0.6V @ 750mA | 750mA | - | - | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | 3-PowerFLEX™ |
