Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REG101UA-3IC REG LINEAR 3V 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 10V | 3V | - | 0.13V @ 100mA | 100mA | 500 µA | 650 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LX8211-00ISE-TRIC REG LIN POS ADJ 150MA SOT23-5 |
9,909 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.175V | 5.6V | 0.4V @ 150mA | 150mA | 220 µA | - | 50dB (120Hz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPS7325QPWIC REG LINEAR 2.5V 500MA 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | 0.6V @ 500mA | 500mA | - | 550 µA | 53dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP |
|
ADP3303ARZ-3.2IC REG LINEAR 3.2V 200MA 8SOIC |
9,065 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 12V | 3.2V | - | 0.4V @ 200mA | 200mA | 400 µA | 4 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|

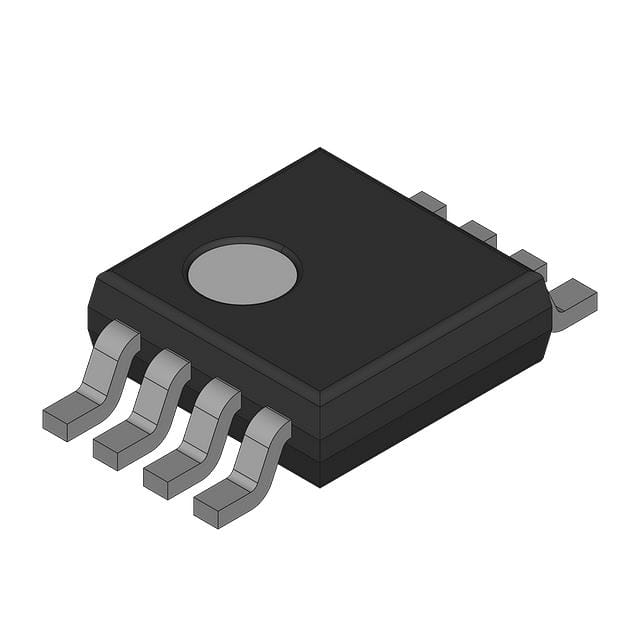

LP2966IMM-3325-TIIC REG LINEAR FIXED POS LDO 2OUT |
5,000 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Positive | Fixed | 2 | 7V | 3.3V, 2.5V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
|
ADP3301AR-3-REELIC REG LINEAR 3V 100MA 8SOIC |
4,800 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 12V | 3V | - | 0.2V @ 100mA | 100mA | 300 µA | 2 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MIC37100-2.5WS-TRIC REG LINEAR 2.5V 1A SOT223-3 |
2,540 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 1A | 1A | - | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
LP2983IM5X-1.0/NOPBIC REG LINEAR 1V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1V | - | - | 150mA | 95 µA | 2 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
ADP3303ARZ-2.7IC REG LINEAR 2.7V 200MA 8SOIC |
1,579 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 12V | 2.7V | - | 0.4V @ 200mA | 200mA | 400 µA | 4 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MC7812CD2TR4IC REG LINEAR 12V 1A D2PAK |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
ADP3301AR-3.3-REELIC REG LINEAR 3.3V 100MA 8SOIC |
290 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.2V @ 100mA | 100mA | 300 µA | 2 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
BA09TIC REG LINEAR 9V 1A TO220FP |
139 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Not For New Designs | Positive | Fixed | 1 | 25V | 9V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
TPS7348QPIC REG LINEAR 4.85V 500MA 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Fixed | 1 | 10V | 4.85V | - | 0.15V @ 500mA (Typ) | 500mA | - | 550 µA | 53dB ~ 50dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | 8-PDIP |
__2.jpg)
|
LF33CDT-TRYIC REG LINEAR 3.3V 500MA DPAK |
3,505 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 1.3V @ 500mA | 500mA | 2 mA | 12 mA | 80dB ~ 65dB (120Hz ~ 65dB) | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
NCV8504PW33R2GIC REG LINEAR 3.3V 400MA 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | - | 400mA | 150 µA | 45 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
LP38691DT-3.3LP38691 500MA LOW DROPOUT CMOS L |
2,179 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.55V @ 500mA | 500mA | 100 µA | - | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 |
|
TPS76725QDRIC REG LINEAR 2.5V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
REG102UA-AIC REG LIN POS ADJ 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 2.5V | 5.5V | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
UPC29M12T-E1-AZIC REG LINEAR FIXED LDO REG |
12,506 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPC29M12HB-AZIC REG LINEAR FIXED LDO REG |
8,388 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
