Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPC29M33T-E1-AYIC REG LINEAR FIXED LDO REG |
1,960 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPC29M33AHF-AZIC REG LINEAR FIXED LDO REG |
1,485 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS715A01DRBTIC REG LINEAR POS ADJ 80MA 8SON |
1,268 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 24V | 1.2V | 15V | 1.12V @ 80mA | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
NCV8505D2T25GIC REG LINEAR 2.5V 400MA D2PAK-7 |
1,150 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Positive | Fixed | 1 | 45V | 2.5V | - | - | 400mA | 350 µA | 45 mA | - | Enable, Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
|
NCV8505D2TADJR4IC REG LIN POS ADJ 400MA D2PAK-7 |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 45V | 1.3V | 44.4V | 0.6V @ 400mA | 400mA | 350 µA | 45 mA | - | Enable, Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
UPC29M33HF-AZIC REG LINEAR FIXED LDO REG |
488 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS715A33DRVTIC REG LINEAR 3.3V 80MA 6WSON |
190 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 1.12V @ 80mA | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
ADP1706ARDZ-0.75R7IC REG LINEAR 0.75V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.75V | - | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | 70dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|

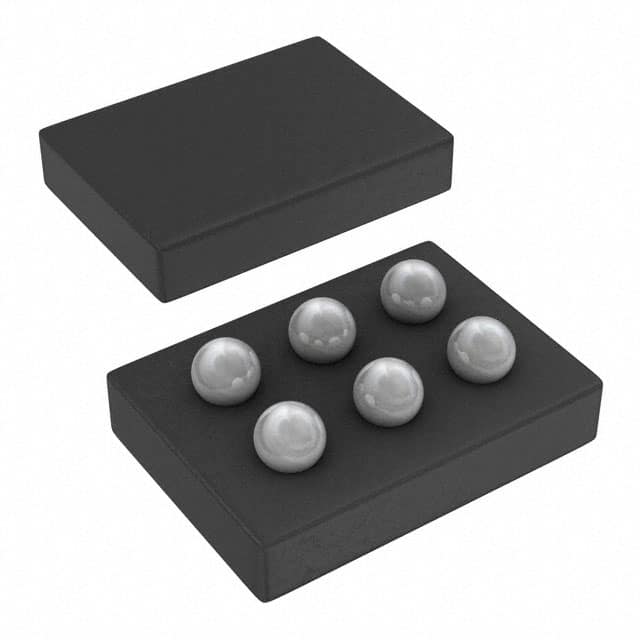

TPS71828-28YZCTIC REG LINEAR 2.8V 200MA 6DSBGA |
20 |
|
Datasheet | - | 6-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V | - | 0.4V @ 200mA | 200mA | 160 µA | 250 µA | 63dB ~ 44dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|
LP2951CMIC REG LIN POS ADJ 100MA 8SOIC |
27,295 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (5V) | 29V | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ADP1706ARDZ-1.1-R7IC REG LINEAR 1.1V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
NCV612SQ30T1GIC REG LINEAR 3V 100MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.38V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
ADP1706ARDZ-0.9-R7IC REG LINEAR 0.9V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
LM340-10KCIC REG LINEAR 1 OUTPUT BIPOLAR |
3,002 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADP1706ARDZ-0.8-R7IC REG LINEAR 0.8V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
NCV612SQ18T1GIC REG LINEAR 1.8V 100MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.56V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
CS8156YTVA5GIC REG LIN 12V/5V TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 2 | 26V | 12V, 5V | - | 1V @ 750mA, 0.6V @ 100mA | 750mA, 100mA | 50 µA | 250 mA | 70dB (120Hz) | Enable | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Vertical |
|
PAM3131BECRIC REG LINEAR POS ADJ 3A 8SO |
771 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.9V | 3.3V | 0.3V @ 3A | 3A | 150 µA | 1 mA | 64dB ~ 58db (100Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-SO-EP |
|
BA178M24TIC REG LINEAR 24V 500MA TO220FP |
383 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Not For New Designs | Positive | Fixed | 1 | 33V | 24V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 55dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
ADP1713AUJZ-0.85R7IC REG LDO 0.85V 0.3A TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Cut Tape (CT) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.85V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 72dB (1kHz) | Enable, Bypass | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
