Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1827-ADJE/ETIC REG LIN POS ADJ 1.5A 5DDPAK |
190 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
MCP1827S-1202E/ABIC REG LINEAR 1.2V 1.5A TO220-3 |
105 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS73701DRVTIC REG LINEAR POS ADJ 1A 6WSON |
1,804 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | 0.5V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
,TO-226_straightlead.jpg)
|
TL750L08CLPIC REG LINEAR 8V 150MA TO92-3 |
1,370 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 26V | 8V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|

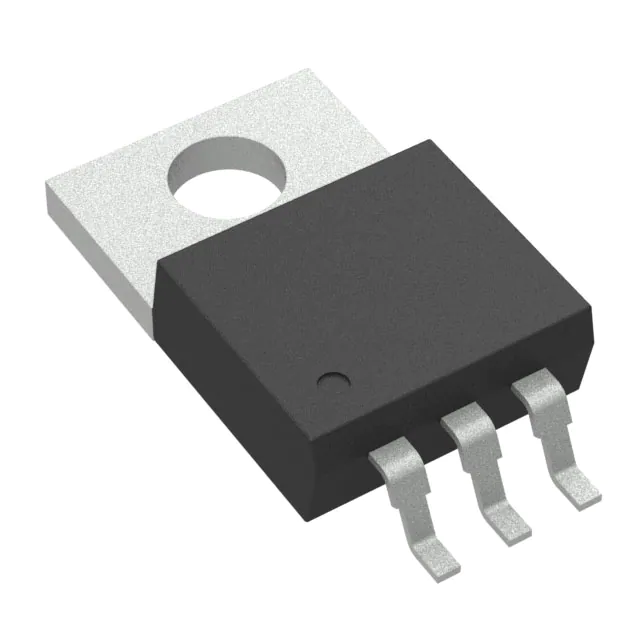

LM2940T-5.0/LF08IC REG LINEAR 5V 1A TO220-3 |
2,316 |
|
Datasheet | - | TO-220-3 Formed Leads | Tube | Active | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-220-3 |
|
NCV8187AMLE180TCG1.2A LDO REGULATOR, LOW DROPOUT |
2,215 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.335V @ 1.2A | 1.2A | 45 µA | - | 75dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-DFNW (3x3) |
|
MIC39100-2.5WS-TRIC REG LINEAR 2.5V 1A SOT223-3 |
2,615 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.63V @ 1A | 1A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
MIC5319-3.0YD5-TRIC REG LINEAR 3V 500MA TSOT23-5 |
2,228 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.4V @ 500mA | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
MIC37102YM-TRIC REG LINEAR POS ADJ 1A 8SOIC |
2,080 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.24V | 6V | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC39100-1.8WS-TRIC REG LINEAR 1.8V 1A SOT223-3 |
1,368 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.63V @ 1A | 1A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MIC5201-4.8YS-TRIC REG LIN 4.8V 200MA SOT223-3 |
932 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 4.8V | - | 0.4V @ 150mA | 150mA | 400 µA | 2 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
MIC37102YMIC REG LINEAR POS ADJ 1A 8SOIC |
353 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable | 1 | 6V | 1.24V | 6V | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC39100-1.8WSIC REG LINEAR 1.8V 1A SOT223-3 |
216 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.63V @ 1A | 1A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MIC39100-2.5WSIC REG LINEAR 2.5V 1A SOT223-3 |
159 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.63V @ 1A | 1A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
NCV8161BSN300T1GIC REG LINEAR 3V 450MA 5TSOP |
38,549 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.33V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
TPS7B6333QPWPRQ1IC REG LIN 3.3V 300MA 16HTSSOP |
6,462 |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 300mA | 300mA | 42 µA | 98 µA | 60dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Current | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
TPS7B7050QPWPRQ1IC REG LINEAR 5V 300MA 16HTSSOP |
5,966 |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 300mA | 300mA | 29.6 µA | - | 60dB ~ 40dB (100Hz ~ 100kHz) | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
LP38690DTX-2.5/NOPBIC REG LINEAR 2.5V 1A TO252-3 |
4,798 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 1.3V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
TPS76918QDBVRG4Q1IC REG LINEAR 1.8V 100MA SOT23-5 |
2,161 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.8V | - | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TPS7B7033QPWPRQ1IC REG LIN 3.3V 300MA 16HTSSOP |
1,990 |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 300mA | 300mA | 29.6 µA | - | 60dB ~ 40dB (100Hz ~ 100kHz) | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
