Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1722-5012H/S7XIC DUAL LDO 5.0V/12VOUT SOIC |
132 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 12V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
TPS73201QDRBRQ1IC REG LIN POS ADJ 250MA 8SON |
9,306 |
|
Datasheet | TPS732xx | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.2V (1.2V) | 5.5V | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SON (3x3) |
|
TPS72218DBVTIC REG LINEAR 1.8V 50MA SOT23-5 |
510 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPS78510QKVURQ1AUTOMOTIVE, 1-A, HIGH-ACCURACY, |
4,955 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.915V @ 1A | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
|
TPS78550QKVURQ1AUTOMOTIVE, 1-A, HIGH-ACCURACY, |
2,372 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.425V @ 1A | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
BA178M15FP-E2IC REG LINEAR 15V 500MA TO252-3 |
2,031 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 15V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 60dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Surface Mount | TO-252 |
|
|
BA178M09FP-E2IC REG LINEAR 9V 500MA TO252-3 |
1,912 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 9V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 67dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Surface Mount | TO-252 |
|
|
TPS78512QKVURQ1AUTOMOTIVE, 1-A, HIGH-ACCURACY, |
1,502 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.755V @ 1A | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
|
TPS78518QKVURQ1AUTOMOTIVE, 1-A, HIGH-ACCURACY, |
1,382 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.54V @ 1A | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
__2.jpg)
|
LD29150DT18RIC REG LINEAR 1.8V 1.5A DPAK |
2,351 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.8V | - | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TLS850C2TEV50ATMA1OPTIREG LINEAR |
4,348 |
|
Datasheet | OPTIREG™ | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 500mA | 30 µA | 42 µA | 60dB (100Hz) | Reset Output | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5 |
|

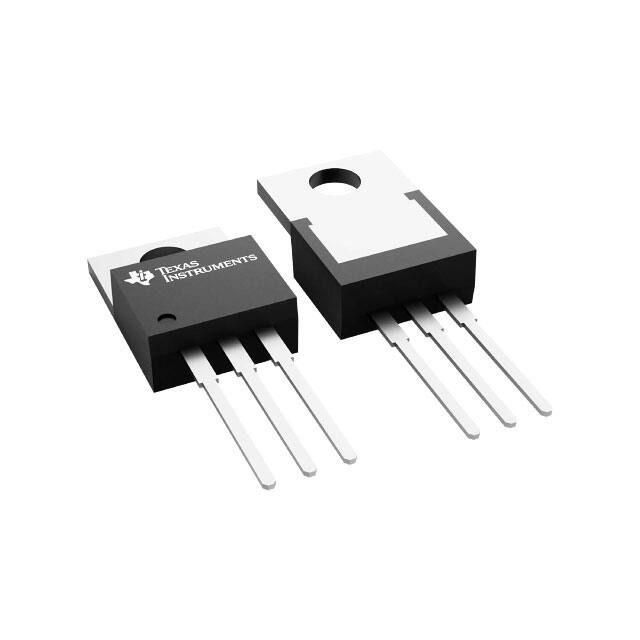

LM317T/LF01IC REG LIN POS ADJ 1.5A TO220-3 |
578 |
|
Datasheet | - | TO-220-3, Formed Leads | Tube | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | 10 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-220-3, LF01 |
|
|
TPS76928DBVTIC REG LINEAR 2.8V 100MA SOT23-5 |
814 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.8V | - | 0.25V @ 100mA | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
BD33IA5MEFJ-ME2IC REG LINEAR 3.3V 500MA 8HTSOP |
15,495 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.9V @ 500mA | 500mA | 0.25 mA | 700 µA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
LM1117DT-1.8/NOPBIC REG LINEAR 1.8V 800MA TO252-3 |
3,886 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
BD00IA5MEFJ-ME2IC REG LIN POS ADJ 500MA 8HTSOP |
2,823 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 4.5V | 0.9V @ 500mA | 500mA | 0.25 mA | 700 µA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
LM1117DT-2.5/NOPBIC REG LINEAR 2.5V 800MA TO252-3 |
882 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
TL750L08CDRIC REG LINEAR 8V 150MA 8SOIC |
2,259 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 8V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MIC37101-2.5YMIC REG LINEAR 2.5V 1A 8SOIC |
543 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
NCV8718AMTADJTBGIC REG LIN POS ADJ 300MA 6WDFN |
9,672 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 24V | 1.2V | 5V | - | 300mA | 8 µA | 300 µA | 70dB ~ 35dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
