Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AAT2606IWO-4-T1IC REG LIN POS PROG 300MA 14DFN |
0 |
|
Datasheet | TPMIC™ | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Programmable | 6 | 5.5V | 0.6V | 3.7V | 0.5V @ 250mA | 300mA | 55 µA | - | 68dB (10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 14-TDFN (3x3) |
|
MCP1792T-4102H/CBVAOAUTOMOTIVE VOLTAGE REG 4.1V |
0 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LT-1080/TRTEMPERATURE COMPENSATED |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SLVGMHC4851ADTR2GLDO REGULATOR, ULTRA-LOW NOISE, |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCV8163ASN500T1GLDO 300 MA AD 3.3V ULTRA-LOW NOI |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
NCV59748MN1ADJTBGIC REG LINEAR POS ADJ 1.5A 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.165V @ 1.5A | 1.5A | 2 mA | - | 75dB ~ 30dB (1kHz ~ 300kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCP186AMN330TAGMOSFET N/P-CH |
0 |
|
- |
- | 12-VDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.145V @ 1A | 1A | 140 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 12-DFN (4x4) |
|
AP2213D-3.3G1IC REG LINEAR 3.3V 500MA TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
MCP1811BT-020/HCAIC REG LINEAR 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|

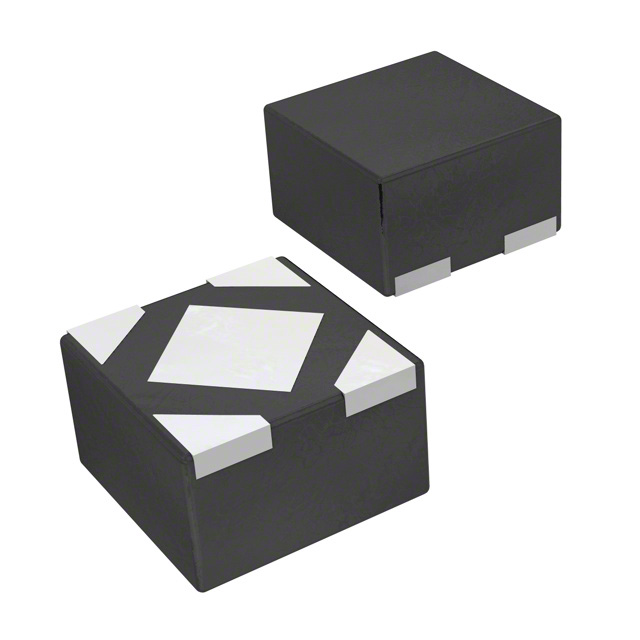

MCP1711T-20I/5XIC REG LINEAR 2.0V 150MA 4UQFN |
0 |
|
Datasheet | Ripple Blocker™ | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 1.2V @ 150mA | 150mA | 1.5 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UQFN (1x1) |
|
MCP1810T-36I/TTIC REG LINEAR 150MA SOT23 |
0 |
|
- |
Ripple Blocker™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.28V @ 100mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
MCP1811BT-012/HCAIC REG LINEAR 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811BT-030/HCAIC REG LINEAR 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812BT-040/HCAIC REG LINEAR 300MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1810T-21I/J8AIC REG LINEAR 150MA 8VDFN |
0 |
|
- |
Ripple Blocker™ | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.38V @ 150mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 8-VDFN (2x2) |
|
|
MCP1811BT-018/HCAIC REG LINEAR 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
MCP1711T-20I/OTIC REG LINEAR 2.0V 150MA SOT23-5 |
0 |
|
Datasheet | Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 1.2V @ 150mA | 150mA | 1.5 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP1812AT-040/HCAIC REG LINEAR 300MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-040/HCAIC REG LINEAR 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812AT-033/HCAIC REG LINEAR 300MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
