Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG117IG-883BIC REG LINEAR POS ADJ 1.5A TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
TLF2931GV50IC REG LINEAR FIXED LDO REG |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | - | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
MC78L05ACDR2GHIC REG LINEAR 5V 100MA 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 1.7V @ 40mA | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
UPC2905BT-E2-AZIC REG LINEAR FIXED LDO REG |
0 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AZ1117T-1.8E1IC REG LINEAR 1.8V 1A TO220-3 |
0 |
|
- |
AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 1.8V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
AZ1117T-2.85E1IC REG LINEAR 2.85V 1A TO220-3 |
0 |
|
- |
AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AZ2940D-1.8G1IC REG LINEAR 1.8V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 1.8V | - | 0.75V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940TF-5.0G1IC REG LINEAR 5V 1A TO220F-3 |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 5V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
AZ2940D-3.3E1IC REG LINEAR 3.3V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940D-3.3G1IC REG LINEAR 3.3V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|

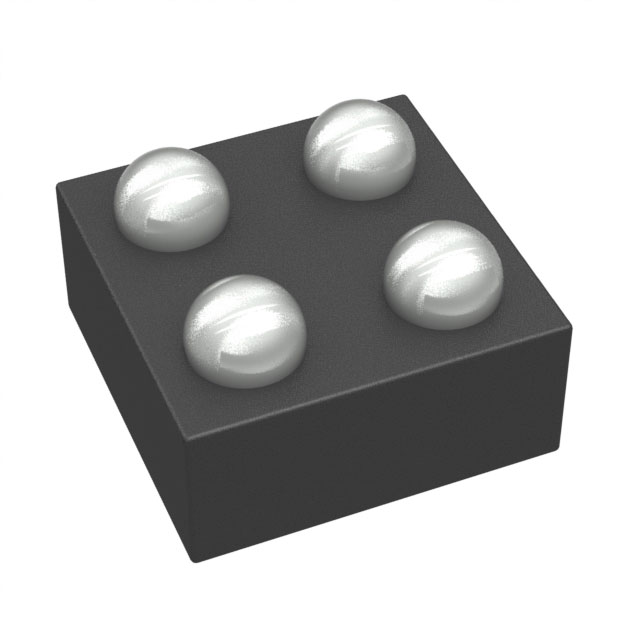

LP5911A033YKGRIC REG LINEAR SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LT1962EMS8-1.5#TRMIC REG LINEAR 1.5V 300MA 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.43V @ 300mA | 300mA | 75 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
LT3029HMSEIC REG LINEAR POS ADJ 16MSOP |
0 |
|
- |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable | 2 | 20V | 1.215V | 19.5V | 0.46V @ 500mA | 500mA, 500mA | 150 µA | 16 mA | 67dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT3050MPMSEIC REG LIN POS ADJ 100MA 12MSOP |
0 |
|
- |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.55V @ 100mA | 100mA | 90 µA | 5.2 mA | 85dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
LT1965EMS8EIC REG LINEAR POS ADJ 1.1A 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.2V | 19.5V | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
LT3015MPMSE#TRIC REG LIN NEG ADJ 1.5A 12MSOP |
0 |
|
- |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Negative | Adjustable | 1 | -30V | -1.22V | -29.5V | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT3085MPMS8E#TRIC REG LIN POS ADJ 500MA 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 500mA | 500mA | 10.1 µA | 1 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
LT3015MPMSE-5IC REG LINEAR -5V 1.5A 12MSOP |
0 |
|
- |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Obsolete | Negative | Fixed | 1 | -30V | -5V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT1962EMS8-1.5#TRMPBFIC REG LINEAR 1.5V 300MA 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 0.43V @ 300mA | 300mA | 75 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
LTC3026EMSEIC REG LIN POS ADJ 1.5A 10MSOP |
0 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 3.5V, 5.5V | 0.4V | 2.6V | 0.25V @ 1.5A | 1.5A | - | - | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
