Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN80L22RMSIC REG LINEAR 2.2V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 2.2V | - | - | 150mA | 5 mA | - | 69dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L25RMSIC REG LINEAR 2.5V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 2.5V | - | - | 150mA | 5 mA | - | 68dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L30RMSIC REG LINEAR 3V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 3V | - | - | 150mA | 5 mA | - | 68dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L33RMSIC REG LINEAR 3.3V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 3.3V | - | - | 150mA | 5 mA | - | 67dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L34RMSTXIC REG LINEAR 3.4V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 3.4V | - | - | 150mA | 5 mA | - | 66dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L50RMSIC REG LINEAR 5V 150MA MINI-5D |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 5V | - | - | 150mA | 5 mA | - | 64dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|

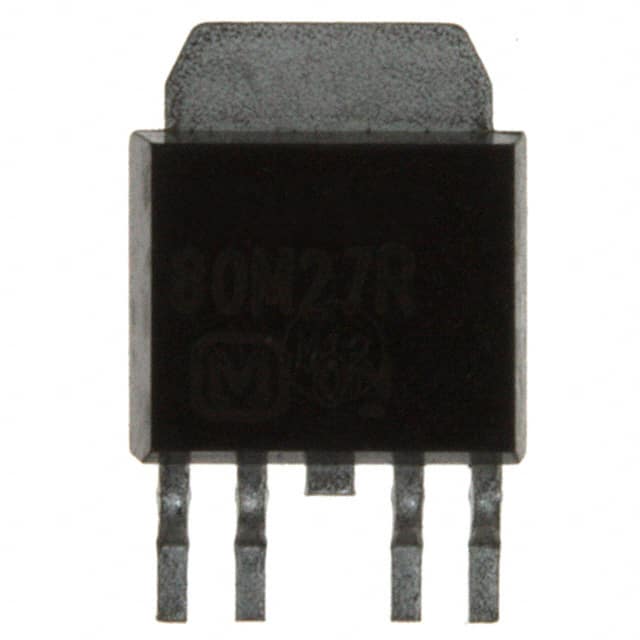

AN80M27RSPIC REG LINEAR 2.7V 500MA SP-5SUA |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Bulk | Obsolete | Positive | Fixed | 1 | 14V | 2.7V | - | - | 500mA | 3 mA | - | 58.8dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -30°C ~ 85°C | - | - | Surface Mount | SP-5SUA |
|
AN78L18MIC REG LINEAR 18V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 3.5 mA | - | 46dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
AN78M05NSPIC REG LINEAR 5V 500MA SP3SUA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 500mA | 6 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SP-3SUA |
|
|
AN78M05NSPE1IC REG LINEAR 5V 500MA SP3SUA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 500mA | 6 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SP-3SUA |
|
|
AN78M08NSPIC REG LINEAR 8V 500MA SP3SUA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SP-3SUA |
|
|
AN79L07MIC REG LINEAR -7V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -7V | - | - | 100mA | 5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 100°C | - | - | Surface Mount | 3-HSIP |
|
|
AN79L18MIC REG LINEAR -18V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -18V | - | - | 100mA | 5 mA | - | 50dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 100°C | - | - | Surface Mount | 3-HSIP |
|
|
AN79L18ME1IC REG LINEAR -18V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -35V | -18V | - | - | 100mA | 5 mA | - | 50dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 100°C | - | - | Surface Mount | 3-HSIP |
|
|
AN79L20ME1IC REG LINEAR -20V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -40V | -20V | - | - | 100mA | 5 mA | - | 49dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 100°C | - | - | Surface Mount | 3-HSIP |
|
FAN1086M25IC REG LINEAR 2.5V 1.5A TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 7.5V | 2.5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
LM337TIC REG LIN NEG ADJ 1.5A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM350TIC REG LINEAR POS ADJ 3A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 33V | - | 3A | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM7805CTIC REG LINEAR 5V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM78L05ACZIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
