Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

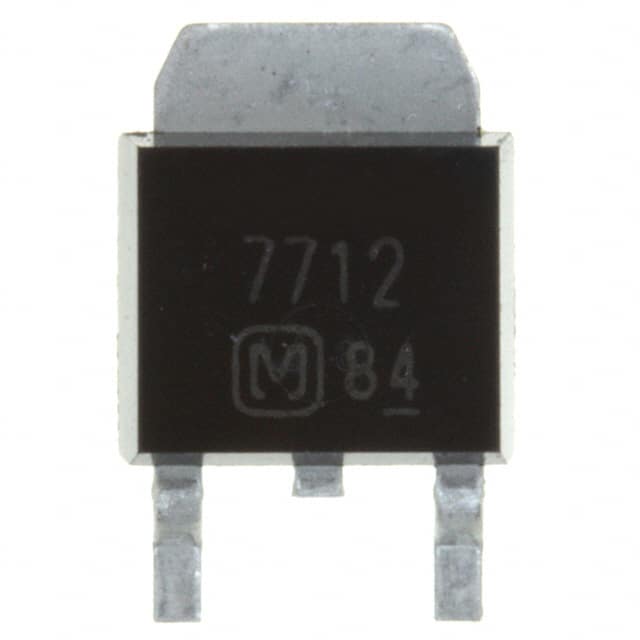

AN7712SPIC REG LINEAR 12V 1.2A SP3SUA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 23V | 12V | - | - | 1.2A | 5 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 25°C ~ 125°C | - | - | Surface Mount | SP-3SUA |
|

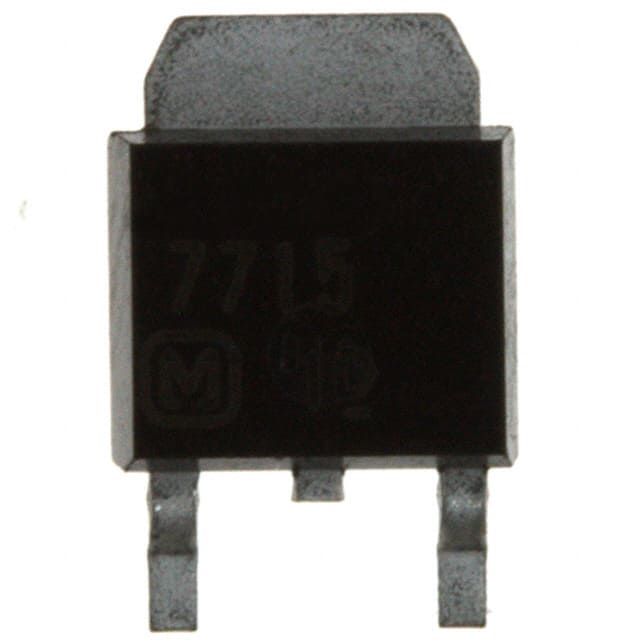

AN7715SPIC REG LINEAR 15V 1.2A SP3SUA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 26.5V | 15V | - | - | 1.2A | 5 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 25°C ~ 125°C | - | - | Surface Mount | SP-3SUA |
|
AN77L03MIC REG LINEAR 3V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 13.62V | 3V | - | - | 100mA | 5 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L03M-E1IC REG LINEAR 3V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13.62V | 3V | - | - | 100mA | 5 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L035M-E1IC REG LINEAR 3.5V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.14V | 3.5V | - | - | 100mA | 5 mA | - | 69dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L04MIC REG LINEAR 4V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 14.66V | 4V | - | - | 100mA | 5 mA | - | 69dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L05MIC REG LINEAR 5V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 15.7V | 5V | - | - | 100mA | 5 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L05M-E1IC REG LINEAR 5V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15.7V | 5V | - | - | 100mA | 5 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L06MIC REG LINEAR 6V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 16.74V | 6V | - | - | 100mA | 5 mA | - | 66dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L08MIC REG LINEAR 8V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 18.82V | 8V | - | - | 100mA | 5 mA | - | 63dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L09MIC REG LINEAR 9V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 19.86V | 9V | - | - | 100mA | 5 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L10MIC REG LINEAR 10V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 20.9V | 10V | - | - | 100mA | 5 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN77L10M-E1IC REG LINEAR 10V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20.9V | 10V | - | - | 100mA | 5 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -30°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L05MIC REG LINEAR 5V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 100mA | 3 mA | - | 57dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L05ME1IC REG LINEAR 5V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 100mA | 3 mA | - | 57dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L06MIC REG LINEAR 6V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | - | 100mA | 3 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L07MIC REG LINEAR 7V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 7V | - | - | 100mA | 3 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L08MIC REG LINEAR 8V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 100mA | 3 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L09MIC REG LINEAR 9V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | - | 100mA | 3 mA | - | 53dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
|
|
AN78L10MIC REG LINEAR 10V 100MA 3HSIP |
0 |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 10V | - | - | 100mA | 3 mA | - | 52dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
