Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3063MPDCB#TRMPBFIC REG LINEAR POS ADJ 200MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 19V | 0.53V @ 200mA | 200mA | - | - | 85dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 150°C | - | - | Surface Mount | 8-DFN (2x3) |
|
LT1963AET-1.8#30PBFIC REG LIN 1.8V 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1963AET-2.5#30PBFIC REG LIN 2.5V 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1963AET-3.3#30PBFIC REG LIN 3.3V 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|

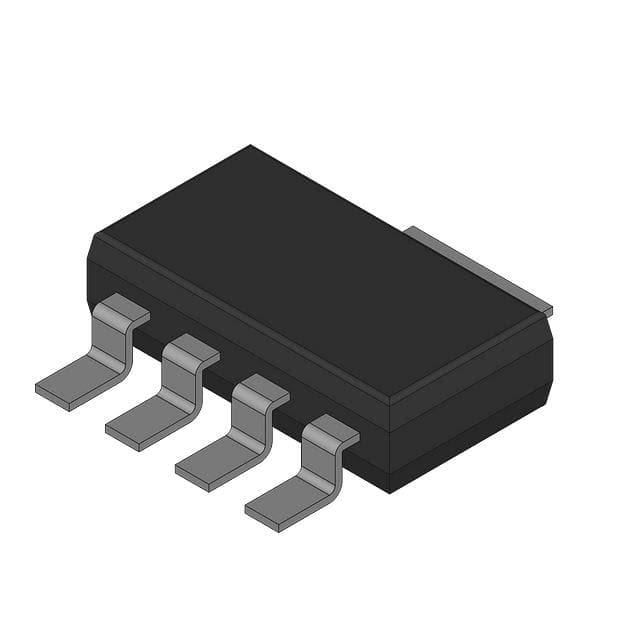

LP3961EMP-3.3IC REG LIN 3.3V 800MA SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LT3063MPMS8E#TRPBFIC REG LIN POS ADJ 200MA 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 19V | 0.53V @ 200mA | 200mA | - | - | 85dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 150°C | - | - | Surface Mount | 8-MSOP-EP |
|
LT3091ER#TRPBFIC REG LIN NEG ADJ 1.5A 7DDPAK |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.525V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-7 |
|
TLF12500AUMA1IFX POWERSTAGE/DRIVER |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LT3045IDD-1#TRPBFIC REG LIN POS PROG 500MA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.45V @ 500mA | 500mA | 20 µA | 25 mA | 117dB ~ 53dB (120Hz ~ 10MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|
MIC49300-0.9WRIC REG LINEAR 0.9V 3A SPAK-5 |
0 |
|
Datasheet | - | SPAK-5 (5 Leads + Tab) | Tube | Active | Positive | Fixed | 1 | 6.5V | 0.9V | - | 0.4V @ 3A | 3A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-SPAK |
|
|
MIC49300-1.5WRIC REG LINEAR 1.5V 3A SPAK-5 |
0 |
|
Datasheet | - | SPAK-5 (5 Leads + Tab) | Tube | Active | Positive | Fixed | 1 | 6.5V | 1.5V | - | 0.4V @ 3A | 3A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-SPAK |
|
LT3030EFE#TRPBFIC REG LINEAR POS ADJ 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 19.5V | 0.48V @ 250mA, 0.48V @ 750mA | 250mA, 750mA | - | - | 60dB ~ 50dB (120Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP-EP |
|
LT3030EUFD#TRPBFIC REG LINEAR POS ADJ 28QFN |
0 |
|
Datasheet | - | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 19.5V | 0.48V @ 250mA, 0.48V @ 750mA | 250mA, 750mA | - | - | 60dB ~ 50dB (120Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
.jpg)
|
MIC37501-1.5WR-TRIC REG LINEAR 1.5V 5A SPAK-7 |
0 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | - | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
|
MIC37501-1.65WR-TRIC REG LINEAR 1.65V 5A SPAK-7 |
0 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.65V | - | - | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
|
MIC37501-3.3WR-TRIC REG LINEAR 3.3V 5A SPAK-7 |
0 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 5A | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
|
MIC37502WR-TRIC REG LINEAR POS ADJ 5A SPAK-7 |
0 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.24V | 5.5V | 0.5V @ 5A | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
BD3571HFP-TRIC REG LINEAR 5V 500MA HRP-5 |
0 |
|
Datasheet | - | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 36V | 5V | - | 0.48V @ 200mA | 500mA | 30 µA | 50 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | HRP-5 |
|
|
BD3575HFP-TRIC REG LIN POS ADJ 500MA HRP-5 |
0 |
|
Datasheet | - | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable | 1 | 36V | 2.8V | 12V | 0.48V @ 200mA | 500mA | 30 µA | 50 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | HRP-5 |
|
LT3022IMSE-1.2#TRPBFIC REG LINEAR 1.2V 1A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.2V | - | 0.285V @ 1A | 1A | 3.5 mA | 36 mA | 66dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
