Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3065EMSE-3.3#TRPBFIC REG LINEAR 3.3V 500MA 12MSOP |
0 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.51V @ 500mA | 500mA | 110 µA | 25 mA | 71dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
TPS70145PWPRG4IC REG LINEAR 3.3V/1.2V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 6V | 3.3V, 1.2V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS70148PWPRG4IC REG LINEAR 3.3V/1.5V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 6V | 3.3V, 1.5V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS70202PWPRG4IC REG LINEAR POS ADJ 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 2 | 6V | 1.22V | 5.5V | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS70251PWPRG4IC REG LINEAR 3.3V/1.8V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 6V | 3.3V, 1.8V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1KHz), 50dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
TPS73630DBVTIC REG LINEAR 3V 400MA SOT23-5 |
1 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 400mA | 400mA | 550 µA | 1 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCV8774DT33RKGIC REG LINEAR 3.3V 350MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.875V @ 350mA | 350mA | 22 µA | 23 µA | 54dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
NCV8774DT50RKGIC REG LINEAR 5V 350MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.875V @ 350mA | 350mA | 22 µA | 23 µA | 54dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
LP2989IM-1.8IC REG LINEAR 1.8V 500MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
L4925PD013TRIC REG LINEAR 5V 500MA POWERSO20 |
0 |
|
Datasheet | - | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 500mA | 500mA | 360 µA | 20 mA | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PowerSO-20 |
|

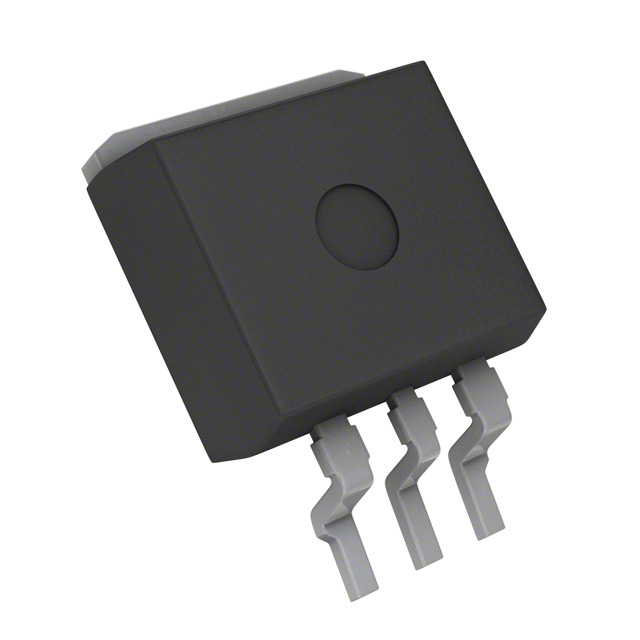

BD750L2FP2-CE2IC REG LINEAR 5V 200MA TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.7V @ 200mA | 200mA | 15 µA | - | 60dB (120Hz) | - | Over Current, Thermal Shutdown | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-263-3F |
|
TLE4268GSXUMA2IC REG LINEAR 5V 150MA DSO8-16 |
0 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 150mA | 150mA | 450 µA | 20 mA | - | Reset, Watchdog | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-16 |
|
LT3014BHVIDD#TRPBFIC REG LINEAR POS ADJ 20MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 80V | 1.22V | 60V | 0.57V @ 20mA | 20mA | 20 µA | 1 mA | 70dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT3014HVIDD#TRPBFIC REG LINEAR POS ADJ 20MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 80V | 1.22V | 60V | 0.57V @ 20mA | 20mA | 20 µA | 1 mA | 70dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
TPS75833KTTRG3IC REG LIN 3.3V 3A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.3V @ 3A | 3A | 200 µA | - | 62dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS74901RGWTG4IC REG LINEAR POS ADJ 3A 20VQFN |
0 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.28V @ 3A | 3A | - | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|
LP2989AILD-1.8/NOPBIC REG LINEAR 1.8V 500MA 8WSON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
LP2989ILD-1.8/NOPBIC REG LINEAR 1.8V 500MA 8WSON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
MIC5236-3.3YMM-TRIC REG LINEAR 3.3V 150MA 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.5V @ 150mA | 150mA | 30 µA | 5 mA | - | Enable | Load Dump, Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
LT1965EDD-1.5#TRPBFIC REG LINEAR 1.5V 1.1A 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
