Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC68400-0.8YML TRIC REG LINEAR 0.8V 3A 16MLF |
0 |
|
Datasheet | - | 16-VQFN Exposed Pad, 16-MLF® | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V or Tracking | - | 0.5V @ 3A | 3A | - | - | - | Enable, Power On Reset, Power Sequencing | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MLF® (4x4) |
|
|
MIC68400-1.0YML TRIC REG LIN 1V 3A 16MLF |
0 |
|
Datasheet | - | 16-VQFN Exposed Pad, 16-MLF® | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V or Tracking | - | 0.5V @ 3A | 3A | - | - | - | Enable, Power On Reset, Power Sequencing | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MLF® (4x4) |
|
|
MIC68400-1.5YML TRIC REG LIN 1.5V 3A 16MLF |
0 |
|
Datasheet | - | 16-VQFN Exposed Pad, 16-MLF® | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V or Tracking | - | 0.5V @ 3A | 3A | - | - | - | Enable, Power On Reset, Power Sequencing | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MLF® (4x4) |
|
|
MIC68400-2.5YML-TRIC REG LIN 2.5V 3A 16MLF |
0 |
|
Datasheet | - | 16-VQFN Exposed Pad, 16-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.5V or Tracking | - | 0.5V @ 3A | 3A | - | - | - | Enable, Power On Reset, Power Sequencing | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MLF® (4x4) |
|
LMS1585AIS-1.5IC REG LIN 1.5V 5A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.4V @ 5A | 5A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
REG103GA-5/2K5G4IC REG LINEAR 5V 500MA SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 0.28V @ 500mA | 500mA | 0.7 mA | 1.3 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
BA3259HFP-TRIC REG LIN POS ADJ 1A/1A HRP-5 |
0 |
|
Datasheet | - | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable (Fixed) | 2 | 14V | 0.8V (3.3V) | 3.3V | 1.3V @ 1A, 1.3V @ 1A | 1A, 1A | 3 mA | 5 mA | 52dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 85°C | - | - | Surface Mount | HRP-5 |
|
LM317AMDTXIC REG LIN POS ADJ 1.5A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
REG104GA-A/2K5G4IC REG LINEAR POS ADJ 1A SOT223 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 15V | 1.295V | 5.5V | 0.48V @ 1A | 1A | 0.7 mA | 1.8 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
BA05SFP-E2IC REG LINEAR 5V 1A TO252-5 |
0 |
|
- |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
TPS76701QPWPG4IC REG LIN POS ADJ 1A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 10V | 1.5V | 5.5V | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76725QPWPG4IC REG LINEAR 2.5V 1A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76730QPWPG4IC REG LINEAR 3V 1A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3V | - | 0.68V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76733QPWPG4IC REG LINEAR 3.3V 1A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3.3V | - | 0.58V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|

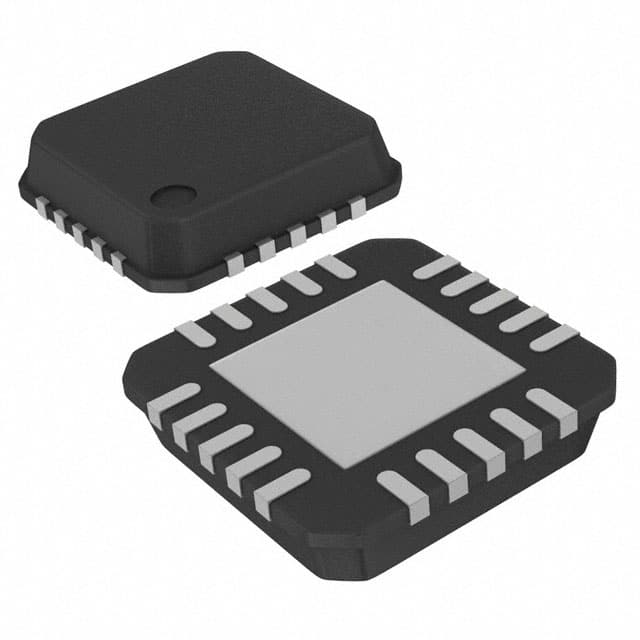

TPS7A5301WQRTKRQ1IC REG LINEAR POS ADJ 3A 20QFN |
0 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.15V | 0.515V @ 3A | 3A | - | - | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 20-QFN (4x4) |
|
|
TPS75301QPWPRQ1IC REG LIN POS ADJ 1.5A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5V | 1.5V | 5V | 0.30V @ 1.5A | 1.5A | 125 µA | - | 63dB (100Hz) | Enable, Power Good, Reset Output | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
|
TPS75315QPWPRQ1IC REG LINEAR 1.5V 1.5A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5V | 1.5V | - | 0.30V @ 1.5A | 1.5A | 125 µA | - | 63dB (100Hz) | Enable, Power Good, Reset Output | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
|
TPS75325QPWPRQ1IC REG LINEAR 2.5V 1.5A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5V | 2.5V | - | - | 1.5A | 125 µA | - | 60dB (100Hz) | Enable, Power Good, Reset Output | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
CS8141YN14IC REG LINEAR 5V 500MA 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1.5V @ 500mA | 500mA | - | - | 75dB (120Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
TLE4275GNTMA1IC REG LINEAR 5V 450MA TO263-5-1 |
0 |
|
Datasheet | OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 450mA | 200 µA | 22 mA | 60dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5-1 |
