Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC7815CD2TR4IC REG LINEAR 15V 1A D2PAK |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|

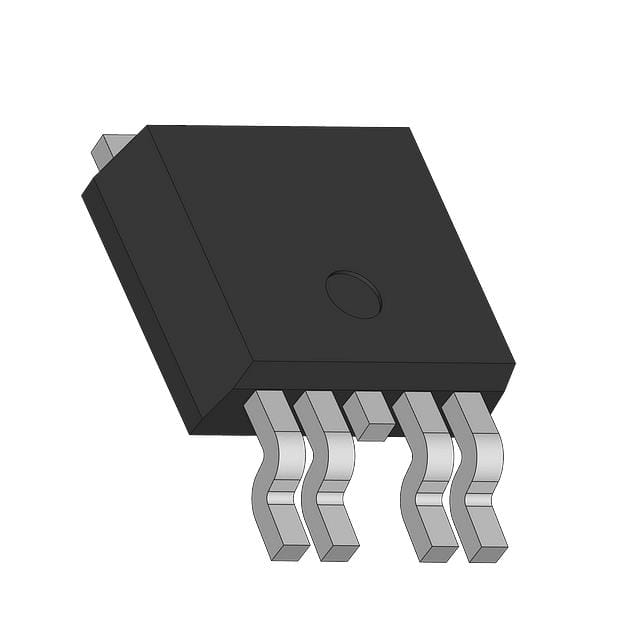

IFX1963TEVATMA1IC REG LIN POS ADJ 1.5A TO252-5 |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.21V | 19.45V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 130 mA | 67dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-5-13 |
|
TLE4264GHTSA1IC REG LINEAR 5V 100MA SOT223-4 |
0 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | 15 mA | 54dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
TLE4264GHTMA1IC REG LINEAR 5V 100MA SOT223-4 |
0 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | 15 mA | 54dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
LP38852MR-ADJIC REG LIN POS ADJ 1.5A 8SO |
0 |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.18V @ 1.5A | 1.5A | 300 µA | 9 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
L4938ND013TRIC REG LINEAR POS ADJ 20SO |
0 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 2 | 25V | 5V, Tracking | - | 0.4V @ 50mA, 0.6V @ 500mA | 50mA, 500mA | - | - | - | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 20-SO |
|
LM3940ISX-3.3IC REG LIN 3.3V 1A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 3.3V | - | 0.2V @ 100mA | 1A | - | - | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LMS1587CS-1.5IC REG LIN 1.5V 3A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.3V @ 3A | 3A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
TLE4266GHTMA1IC REG LINEAR 5V 120MA SOT223-4 |
0 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 120mA | 400 µA | 15 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
REG101UA-2.8/2K5G4IC REG LINEAR 2.8V 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.8V | - | 0.13V @ 100mA | 100mA | 500 µA | 650 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LP2953IM-3.3IC REG LIN POS ADJ 250MA 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.23V (3.3V) | 29V | 0.8V @ 250mA | 250mA | 170 µA | 33 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
NCV59301DS50R4GIC REG LINEAR 5V 3A D2PAK-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13.5V | 5V | - | 0.5V @ 3A | 3A | - | - | - | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
LP3875EMPX-ADJIC REG LIN POS ADJ 1.5A SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.22V | 6.4V | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
LP3965EMPX-2.5IC REG LINEAR 2.5V 1.5A SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
LP3965EMPX-3.3IC REG LINEAR 3.3V 1.5A SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
TPS79330YZQTIC REG LINEAR 3V 200MA 5DSBGA |
0 |
|
Datasheet | - | 5-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 200mA | 200mA | 220 µA | - | 70dB ~ 43dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
LP38690SD-ADJIC REG LINEAR POS ADJ 1A 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.25V | 9V | 1.6V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x3) |
|
MIC3775-2.5YMM-TRIC REG LINEAR 2.5V 750MA 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 750mA | 750mA | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
LM2940CS-15IC REG LIN 15V 1A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 15V | - | 0.8V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
TPS7150QPWRG4IC REG LINEAR 5V 500MA 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.23V @ 500mA | 500mA | 350 µA | 460 µA | 55dB ~ 52dB (120Hz) | Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP |
