Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ST3L01K7RIC REG LINEAR 2.6V/3.3V/8V 7SPAK |
0 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 3 | 5.25V | 2.6V, 3.3V, 8V | - | 1.9V @ 1.2A, 1.4V @ 1A, 2.2V @ 200mA | 1.2A, 1A, 200mA | 10 mA | 20 mA | 30dB (100Hz ~ 100kHz) (MIN), 30dB (100Hz ~ 100kHz) (MIN), 40dB (100Hz ~ 100kHz) (MIN) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
TPS70758PWPRIC REG LINEAR 3.3V/2.5V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.14V @ 250mA, - | 250mA, 125mA | 230 µA | - | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
MC7805BDTRKIC REG LINEAR 5V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 68dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
MCP1710T-33I/LZIC REG LINEAR 3.3V 200MA 8VDFN |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.45V @ 200mA | 200mA | 20 nA | - | 22dB (100Hz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (2x2) |
|
|
MCP1710T-30I/LZIC REG LINEAR 3V 200MA 8VDFN |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.45V @ 200mA | 200mA | 20 nA | - | 22dB (100Hz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (2x2) |
|
MCP1755T-3302E/OTVAOIC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.5V @ 300mA | 300mA | 100 µA | 400 µA | 80dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MCP1792T-3302H/DBVAOIC REG LIN 3.3V 100MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 55V | 3.3V | - | 1.2V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
|
MCP1792T-5002H/DBVAOIC REG LINEAR 5V 100MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 55V | 5V | - | 0.25V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | Shutdown | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
NCV317BD2TIC REG LIN POS ADJ 1.5A D2PAK-3 |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
|
TPS77701PWPRG4IC REG LIN POS ADJ 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 5.5V | - | 750mA | 125 µA | - | 60dB (1kHz) | Enable, Power Good, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
REG113NA-3/3KG4IC REG LINEAR 3V 400MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3V | - | 0.41V @ 400mA | 400mA | 500 µA | 1 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS76901QDBVRQ1IC REG LIN POS ADJ 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.2V | 5.5V | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TPS76930QDBVRQ1IC REG LINEAR 3V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3V | - | 0.23V @ 100mA | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
BH25RB1WGUT-E2IC REG LIN 2.5V 150MA 4VCSP60N1 |
0 |
|
Datasheet | - | 4-WFBGA, CSPBGA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.15V @ 100mA | 150mA | 72 µA | - | 63dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-VCSP60N1 (1x1.04) |
|
|
BH31RB1WGUT-E2IC REG LIN 3.1V 150MA 4VCSP60N1 |
0 |
|
Datasheet | - | 4-WFBGA, CSPBGA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.15V @ 100mA | 150mA | 72 µA | - | 63dB (1kHz) | ON/OFF | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-VCSP60N1 (1x1.04) |
|
|
BH33RB1WGUT-E2IC REG LIN 3.3V 150MA 4VCSP60N1 |
0 |
|
Datasheet | - | 4-WFBGA, CSPBGA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 100mA | 150mA | 72 µA | - | 63dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-VCSP60N1 (1x1.04) |
|
LP38511TJ-1.8/NOPBIC REG LIN 1.8V 800MA TO263 THIN |
0 |
|
Datasheet | - | TO-263-5 Thin | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.26V @ 800mA | 800mA | 3.5 µA | 13 mA | 73dB ~ 70dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 Thin |
|
TPS735285DRVRIC REG LINEAR 2.85V 500MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.85V | - | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
ISL9021AIRUFZ-T7AIC REG LINEAR 2.5V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|

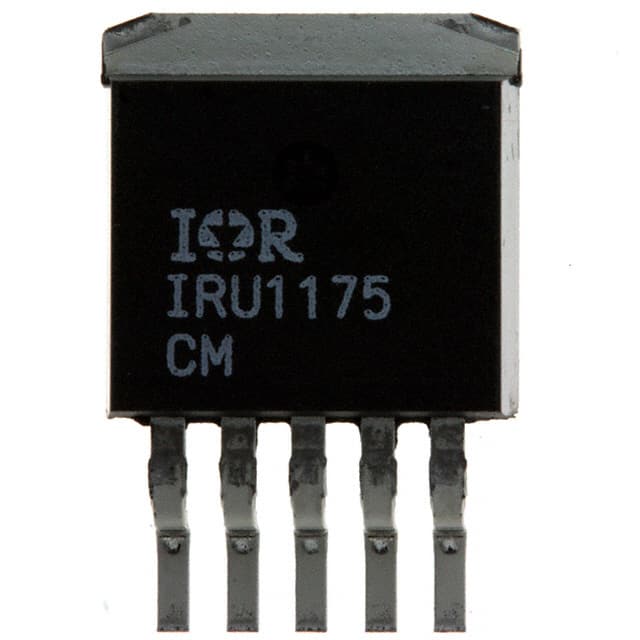

IRU1175CMTRIC REG LIN POS ADJ 7.5A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.25V | 5.5V | 1.3V @ 7.5A | 7.5A | 10 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
