LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-0782DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-078x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | - | 10mA | 0.06mcd ~ 1.17mcd | 635nm | 573mW |
|
|
HDSP-0784DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-078x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment, Hexadecimal | Common Anode | Red | - | 10mA | 0.06mcd ~ 1.17mcd | 635nm | 573mW |
|
HPDL-1414DISP 16SEG 0.11" QUAD RED 12DIP |
0 |
|
Datasheet | - | 12-DIP | Bag | Obsolete | - | 4 | 0.791" H x 0.689" W x 0.240" D (20.10mm x 17.50mm x 6.10mm) | 0.11" (2.85mm) | 16-Segment, Alphanumeric | Serial Input | Red | - | - | 1mcd | 655nm | 450mW |
|
|
HDSP-3603DISPLAY 7SEG 0.3" SGL GRN 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 10 Leads | Tube | Obsolete | - | 1 | 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 2.7mcd | 566nm | 105mW |
|
|
5082-7616DISP 7SEG 0.3" OV/FL RED 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 12 Leads | Bag | Obsolete | - | +/-1 (overflow) | 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) | 0.30" (7.62mm) | 7-Segment | Universal | Red | 2.1V | 20mA | 0.8mcd | 635nm | 105mW |
|
5082-7656DISP 7SEG 0.43" OV/FL RED 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 12 Leads | Tube | Obsolete | - | +/-1 (overflow) | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Universal | Red | 2.1V | 20mA | 1.12mcd | 635nm | 105mW |
|
LF-301MKDISPLAY 7SEG 0.31" SGL GRN 10SMD |
0 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 10mcd | 563nm | 60mW |
|
LF-301VADISPLAY 7SEG 0.31" SGL RED 10SMD |
0 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 10mcd | 650nm | 40mW |
|
|
LF-301VKDISPLAY 7SEG 0.31" SGL RED 10SMD |
0 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 10mcd | 650nm | 40mW |
|
|
HDSP-3905DISPLAY 7-SEG 0.8" SGL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP | Tube | Obsolete | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Red | 2.6V | 100mA | 7mcd | 635nm | 105mW |
|
LA-301XBDISPLAY 7SEG 0.31" SGL YLW 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.209", 5.30mm) | Bulk | Obsolete | - | 1 | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Yellow | 2.05V | 10mA | 90mcd | 589nm | 65mW |
|
LB-302MFDISPLAY 7SEG 0.3" DBL GRN 10DIP |
0 |
|
- |
- | 10-DIP (0.400", 10.16mm) | Bulk | Obsolete | - | 2 | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 9mcd | 563nm | 60mW |
|
LB-402DNDISPLAY 7-SEG 0.4" DBL ORG 18DIP |
0 |
|
Datasheet | - | 18-DIP | Bulk | Obsolete | - | 2 | 0.709" H x 0.945" W x 0.276" D (18.00mm x 24.00mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Orange | 2V | 10mA | 10mcd | 610nm | 40mW |
|
|
LB-302MPDISPLAY 7SEG 0.3" DBL GRN 10DIP |
0 |
|
- |
- | 10-DIP (0.400", 10.16mm) | Bulk | Obsolete | - | 2 | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 9mcd | 563nm | 60mW |
|
|
LB-302VPDISPLAY 7-SEG 0.3" DBL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.400", 10.16mm) | Bulk | Obsolete | - | 2 | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 6.3mcd | 650nm | 50mW |
.JPG)
|
LB-602BA2DISPLAY 7SEG 0.56" DBL BLU 18DIP |
0 |
|
Datasheet | - | 18-DIP | Bulk | Obsolete | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Anode | Blue | 3.6V | 10mA | 56mcd | 470nm | 42mW |
|
|
LA-301XLDISPLAY 7SEG 0.31" SGL YLW 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.209", 5.30mm) | Bulk | Obsolete | - | 1 | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Cathode | Yellow | 2.05V | 10mA | 90mcd | 589nm | 65mW |
|

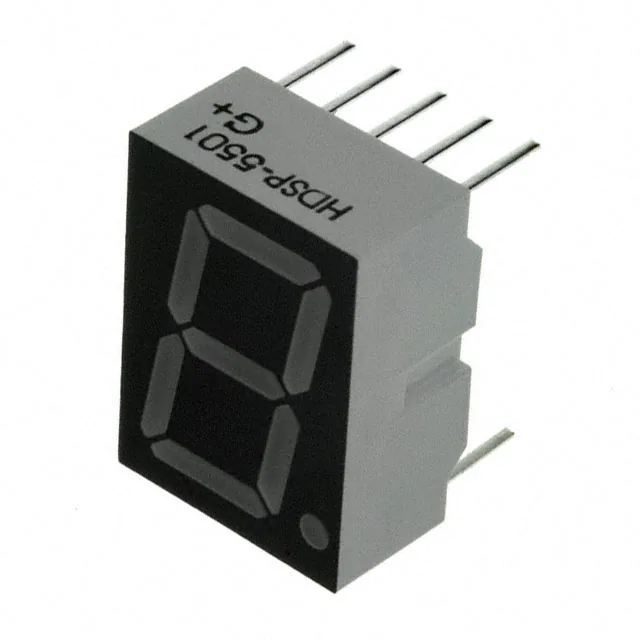

HDSP-5501-GH000DISPLAY 7SEG 0.56" SGL RED 10DIP |
0 |
|
Datasheet | HDSP-550x | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 2.8mcd | 635nm | 105mW |
|

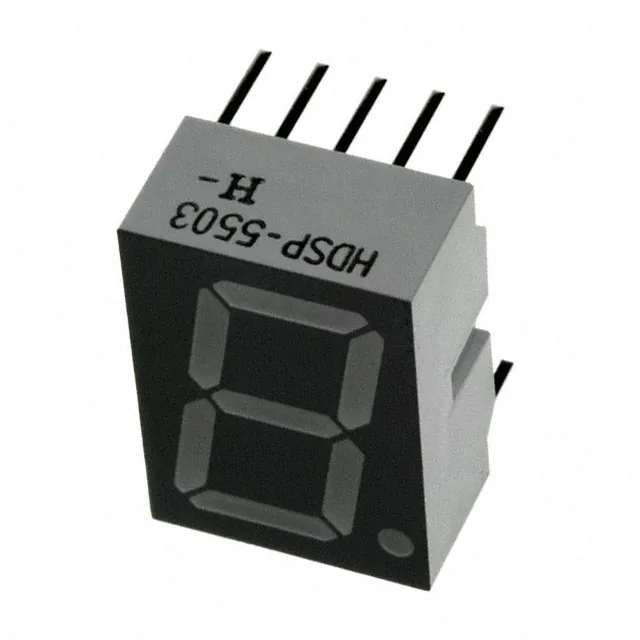

HDSP-5503-GH000DISPLAY 7SEG 0.56" SGL RED 10DIP |
0 |
|
Datasheet | HDSP-550x | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 2.8mcd | 635nm | 105mW |
|
|
HDSP-301ADISPLAY 7-SEG 0.4" SGL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.300", 7.62mm) | Bulk | Obsolete | - | 1 | 0.504" H x 0.382" W x 0.276" D (12.80mm x 9.70mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.8V | 20mA | 0.45mcd | 660nm | 37mW |
