LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-U111-GI000LED |
0 |
|
Datasheet | HDSP-Uxxx | 10-DIP (0.209", 5.30mm) | Bulk | Active | - | - | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.6mcd | 645nm | 37mW |
|
|
MDA6110CDISP 14SEG 0.54" DBL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Anode | Red | 2.1V | 20mA | 1.4mcd | 697nm | 40mW |
|
|
HDSP-4203DISPLAY 7-SEG 0.8" SGL YLW 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Bulk | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Yellow | 2.6V | 100mA | 7mcd | 583nm | 105mW |
|
|
LBP-602YK2DISPLAY 7SEG 0.56" DBL YLW 18DIP |
0 |
|
Datasheet | LBP-602 A/K2 | 18-DIP (0.600", 15.24mm) | Bulk | Not For New Designs | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Yellow | 1.9V | 10mA | 450mcd | 590nm | 896mW |
|
LF-301MADISPLAY 7SEG 0.31" SGL GRN 10SMD |
0 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 10mcd | 563nm | 60mW |
|
|
MDA6410CDISP 14SEG 0.54" DBL GRN 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Anode | Green | 2.1V | 20mA | 5mcd | 570nm | 70mW |
|

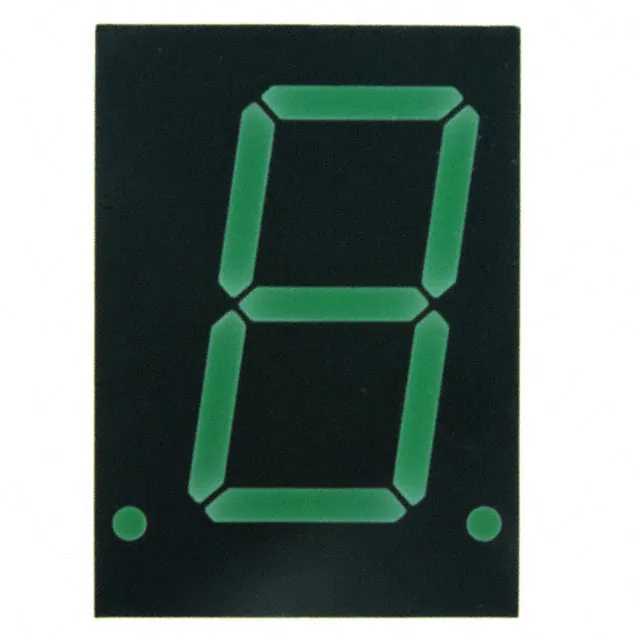

HDSP-8603DISPLAY 7SEG 0.8" SGL GRN 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Tube | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 1.5mcd | 566nm | 105mW |
|
|
MSQC6410CDISP 7SEG 0.56" QUAD GRN 36DIP |
0 |
|
Datasheet | - | 36-DIP Module (0.600", 15.24mm) | Bulk | Obsolete | - | 4 | 0.673" H x 1.500" W x 0.315" D (17.10mm x 38.10mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2mcd | 565nm | 75mW |
|

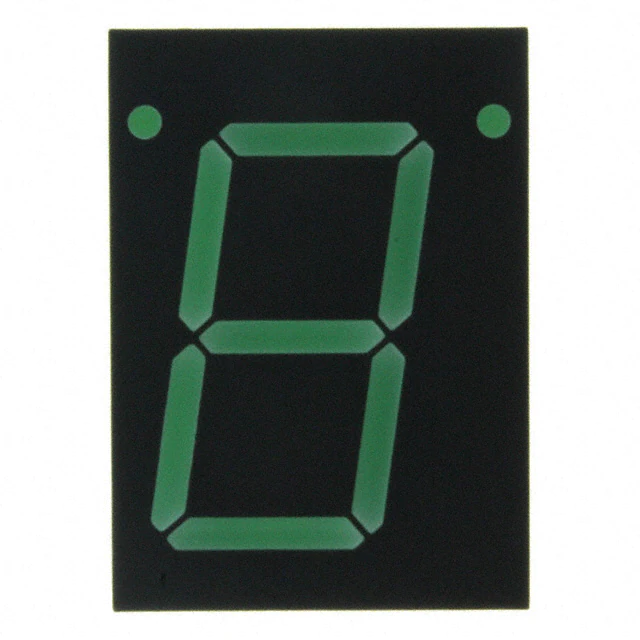

HDSP-8601DISPLAY 7SEG 0.8" SGL GRN 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Tube | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 1.5mcd | 566nm | 105mW |
|
LB-402MNDISPLAY 7SEG 0.4" DBL GRN 18DIP |
0 |
|
Datasheet | - | 18-DIP | Bulk | Active | - | 2 | 0.709" H x 0.945" W x 0.276" D (18.00mm x 24.00mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 25mcd | 563nm | 60mW |
|
|
HDSP-K113DISPLAY 7SEG 0.56" DBL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
|
|
HDSP-4201DISPLAY 7-SEG 0.8" SGL YLW 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Bulk | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Yellow | 2.6V | 100mA | 7mcd | 583nm | 105mW |
|
|
MSQ6110CDISP 7SEG 0.56" QUAD RED 36DIP |
0 |
|
Datasheet | - | 36-DIP Module (0.600", 15.24mm) | Bulk | Obsolete | - | 4 | 0.752" H x 1.988" W x 0.315" D (19.10mm x 50.50mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 0.7mcd | 697nm | 40mW |
|
|
MSQ6410CDISP 7SEG 0.56" QUAD GRN 36DIP |
0 |
|
Datasheet | - | 36-DIP Module (0.600", 15.24mm) | Bulk | Obsolete | - | 4 | 0.752" H x 1.988" W x 0.315" D (19.10mm x 50.50mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 70mW |
|
|
MSQ6411CDISP 7SEG 0.56" QUAD GRN 12DIP |
0 |
|
Datasheet | - | 12-DIP | Bulk | Obsolete | - | 4 | 0.752" H x 1.988" W x 0.315" D (19.10mm x 50.50mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 70mW |
|
|
MSQ6440CDISP 7-SEG 0.56" QUAD GRN 36DIP |
0 |
|
Datasheet | - | 36-DIP Module (0.600", 15.24mm) | Bulk | Obsolete | - | 4 | 0.752" H x 1.988" W x 0.315" D (19.10mm x 50.50mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 70mW |
|
|
MSQ6911CDISP 7SEG 0.56" QUAD RED 12DIP |
0 |
|
Datasheet | - | 12-DIP | Bulk | Obsolete | - | 4 | 0.752" H x 1.988" W x 0.315" D (19.10mm x 50.50mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 2.2mcd | 635nm | 70mW |
|
LB-302VFDISPLAY 7-SEG 0.3" DBL RED 10DIP |
0 |
|
- |
- | 10-DIP (0.400", 10.16mm) | Bulk | Obsolete | - | 2 | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 6.3mcd | 650nm | 50mW |
|
HDSP-N101DISPLAY 7-SEG 0.8" SGL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Bulk | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.5mcd | 645nm | 37mW |
|
HDSP-N153DISPLAY 7-SEG 0.8" SGL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 12 Leads | Bulk | Active | - | 1 | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Red | 1.8V | 20mA | 14mcd | 645nm | 96mW |
