LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA-101VADISPLAY 7-SEG 1" SGL RED 20DIP |
3 |
|
Datasheet | LA-101AK | 20-DIP (1.200", 30.50mm) | Bulk | Obsolete | - | 1 | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 1.00" (25.40mm) | 7-Segment | Common Anode | Red | 4V | 10mA | 10mcd | 650nm | 640mW |
|
MANF280CDISPLAY 7-SEG 4" SGL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (4.210", 107.00mm) | Bulk | Obsolete | - | 1 | 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) | 4.00" (101.60mm) | 7-Segment | Common Cathode | Red | 9V | 20mA | 9mcd | 660nm | 100mW |
|
LB-602BK2DISPLAY 7SEG 0.56" DBL BLU 18DIP |
0 |
|
Datasheet | - | 18-DIP | Bulk | Last Time Buy | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Blue | 3.6V | 10mA | 56mcd | 470nm | 42mW |
|

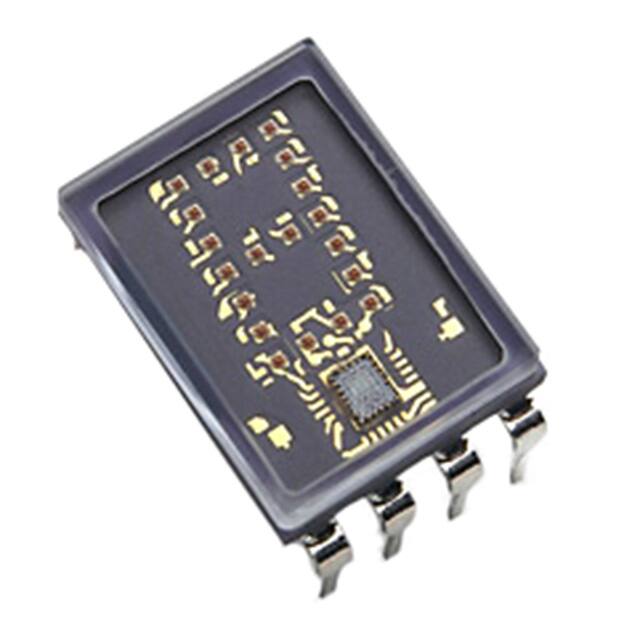

HDSP-0861DISPLAY 7-SEG 0.29" SGL YLW 8DIP |
0 |
|
Datasheet | HDSP-086x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Yellow | - | 120mA | 0.22mcd ~ 2.39mcd | 583nm | 963mW |
|
HDSP-0860DISPLAY 7-SEG 0.29" SGL YLW 8DIP |
0 |
|
Datasheet | HDSP-086x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Yellow | - | 120mA | 0.22mcd ~ 2.39mcd | 583nm | 963mW |
|
|
HDSP-0961DISPLAY 7SEG 0.29" SGL GRN 8DIP |
0 |
|
Datasheet | HDSP-096x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Green | - | 10mA | 0.30mcd ~ 2.63mcd | 568nm | 963mW |
|
HDSP-0772DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-077x | 8-DIP (0.600", 15.20mm) | Tray | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment, Hexadecimal | Common Anode | Red | - | 10mA | 0.26mcd ~ 1.82mcd | 635nm | 963mW |
|
|
HDSP-0771DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-077x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | - | 10mA | 0.26mcd ~ 1.82mcd | 635nm | 963mW |
|
HDSP-0863DISP 7SEG 0.29" OV/FL YLW 8DIP |
0 |
|
Datasheet | HDSP-086x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | +/-1 (overflow) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Yellow | 1.9V | 8mA | 0.22mcd ~ 2.39mcd | 583nm | 237mW |
|

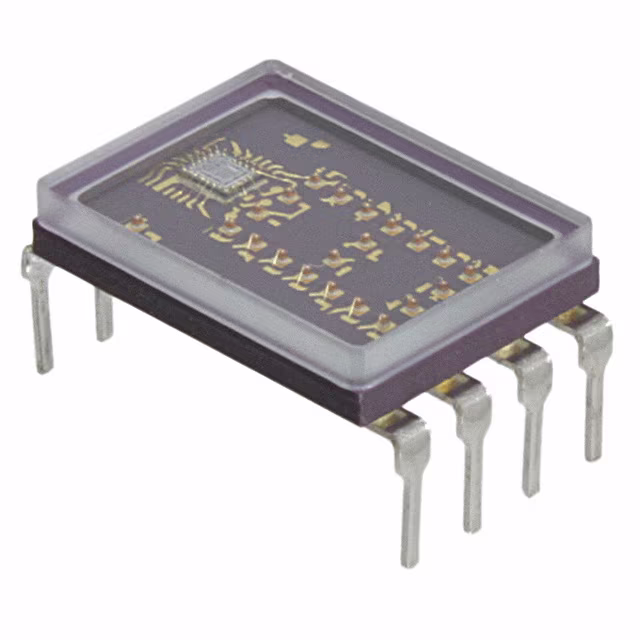

HDSP-0960DISPLAY 7SEG 0.29" SGL GRN 8DIP |
0 |
|
Datasheet | HDSP-096x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Green | - | 10mA | 1.1mcd | 568nm | 963mW |
|
|
HDSP-0963DISP 7SEG 0.29" OV/FL GRN 8DIP |
0 |
|
Datasheet | HDSP-096x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | +/-1 (overflow) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Green | 1.85V | 8mA | 0.30mcd ~ 2.63mcd | 568nm | 282mW |
|
|
HDSP-0763DISP 7SEG 0.29" OV/FL RED 8DIP |
0 |
|
Datasheet | HDSP-076x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | +/-1 (overflow) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | 1.75V | 10mA | 0.06mcd ~ 1.17mcd | 635nm | 573mW |
|
|
HDSP-0960-GGA00GRN NUM DISP RDP/BCD DECODER |
0 |
|
- |
HDSP-076x | 8-DIP (0.600", 15.20mm) | Bulk | Obsolete | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Green | - | 8mA | 1.1mcd | 568nm | 963mW |
|
HDSP-0883DISP 7SEG 0.29" OV/FL YLW 8DIP |
0 |
|
Datasheet | HDSP-088x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | +/-1 (overflow) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Yellow | 1.9V | 8mA | 0.22mcd ~ 2.39mcd | 583nm | 282mW |
|
|
HDSP-0783DISP 7SEG 0.29" OV/FL RED 8DIP |
0 |
|
Datasheet | HDSP-078x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | +/-1 (overflow) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | 1.75V | 10mA | 0.06mcd ~ 1.17mcd | 635nm | 573mW |
|
|
HDSP-0981DISPLAY 7SEG 0.29" SGL GRN 8DIP |
0 |
|
Datasheet | HDSP-098x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Green | - | 10mA | 0.30mcd ~ 2.63mcd | 568nm | 963mW |
|
|
HDSP-0884DISPLAY 7-SEG 0.29" SGL YLW 8DIP |
0 |
|
Datasheet | HDSP-088x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment, Hexadecimal | Common Anode | Yellow | - | 10mA | 0.22mcd ~ 2.39mcd | 583nm | 963mW |
|
|
HDSP-0881DISPLAY 7-SEG 0.29" SGL YLW 8DIP |
0 |
|
Datasheet | HDSP-088x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Yellow | - | 10mA | 0.22mcd ~ 2.39mcd | 583nm | 963mW |
|
|
HDSP-0792DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-079x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | - | 10mA | 0.26mcd ~ 1.82mcd | 635nm | 963mW |
|
|
HDSP-0791DISPLAY 7-SEG 0.29" SGL RED 8DIP |
0 |
|
Datasheet | HDSP-079x | 8-DIP (0.600", 15.20mm) | Bulk | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | - | 10mA | 0.26mcd ~ 1.82mcd | 635nm | 963mW |
