Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0508.500MX6PFUSE CERM 500MA 600VAC/VDC 3AB |
2,455 |
|
Datasheet | 508 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 600 V | 600 V | Fast Blow | 10kA | 0.259 | CE, cULus | -55°C ~ 125°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0273001.HFUSE BRD MNT 1A 125VAC/VDC RAD |
1,621 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 10kA | 0.0648 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
027301.5HFUSE BRD MT 1.5A 125VAC/VDC RAD |
359 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 10kA | 0.16 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273.250HFUSE BOARD MNT 250MA 125VAC/VDC |
218 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0064 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0977002.MXPFUSE CERM 2A 500VAC 450VDC 5X20 |
488 |
|
Datasheet | 977 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 17.0 | CE, PSE, SEMKO | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0273.750HFUSE BOARD MNT 750MA 125VAC/VDC |
198 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 10kA | 0.09 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0253001.MFUSE BRD MNT 1A 125VAC/VDC AXIAL |
749 |
|
Datasheet | PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, PSE, QPL, TUV, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0253002.MFUSE BRD MNT 2A 125VAC/VDC AXIAL |
693 |
|
Datasheet | PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.405 | CCC, CSA, PSE, QPL, TUV, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0977016.MXPFUSE CERM 16A 500VAC 450VDC 5X20 |
346 |
|
Datasheet | 977 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 16 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 725.0 | CE, PSE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0298040.UXTFUSE AUTO 40A 32VDC AUTO LINK |
123 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | - | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298060.ZXBFUSE AUTO 60A 32VDC AUTO LINK |
556 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 60 A | - | 32 V | Slow Blow | 2kA | - | UL | -40°C ~ 125°C | - | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0508.315MXEPFUSE CERM 315MA 1KVAC 1000VDC |
1,062 |
|
Datasheet | 508 | Bulk | Active | Through Hole | Cartridge, Ceramic | 315 mA | 1 kV | 1000 V | Fast Blow | 10kA | 0.071 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
|
0298080.ZXBFUSE AUTO 80A 32VDC AUTO LINK |
183 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 2kA | - | UL | -40°C ~ 125°C | Red | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298040.ZXBFUSE AUTO 40A 32VDC AUTO LINK |
156 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | 2kA | - | UL | -40°C ~ 125°C | - | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|

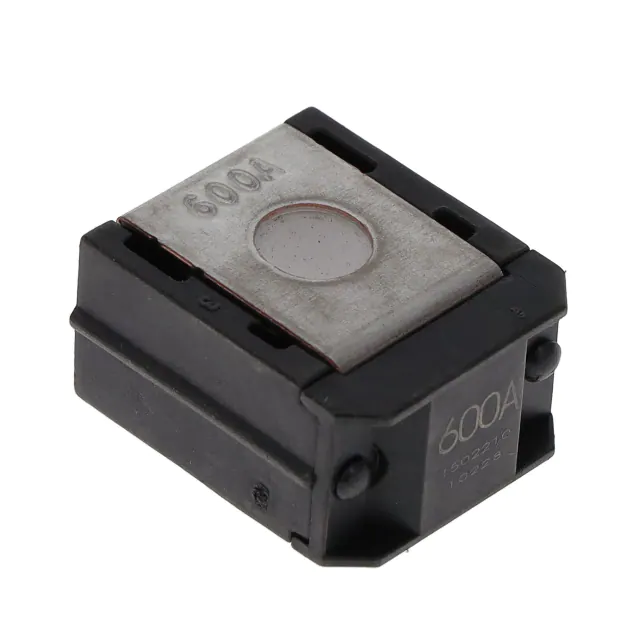

3298600.ZXSTAFUSE AUTO 600A 32VDC MODULE |
337 |
|
Datasheet | ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 600 A | - | 32 V | - | 2kA | 3000000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
3298500.ZXSTAFUSE AUTO 500A 32VDC MODULE |
285 |
|
Datasheet | ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 500 A | - | 32 V | - | 2kA | 1550000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
0977016.MXEPFUSE CERM 16A 500VAC 450VDC 5X20 |
352 |
|
Datasheet | 977 | Bulk | Active | Through Hole | Cartridge, Ceramic | 16 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 725.0 | CE, PSE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
|
0977.800MXPFUSE CERM 800MA 500VAC 450VDC |
233 |
|
Datasheet | 977 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 800 mA | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 0.8 | CE, SEMKO | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0298300.ZXHFUSE AUTO 300A 32VDC AUTO LINK |
445 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 300 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | Gray | 1.149" L x 0.750" W x 0.422" H (29.20mm x 19.05mm x 10.72mm) | |
|
153.5395.6301FUSE AUTO 300A 32VDC AUTO LINK |
200 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 300 A | - | 32 V | Slow Blow | 2kA | 486000.0 | - | - | Gray | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) |
