Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0999025.ZXNFUSE AUTO 25A 58VDC BLADE MAX |
608 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 58 V | Slow Blow | 1kA | 2087.0 | - | -40°C ~ 125°C | Gray | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0999035.ZXNFUSE AUTO 35A 58VDC BLADE MAX |
1,229 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 35 A | - | 58 V | Slow Blow | 1kA | 6032.0 | - | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0999080.ZXNFUSE AUTO 80A 58VDC BLADE MAX |
142 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 80 A | - | 58 V | Slow Blow | 1kA | 8800.0 | - | -40°C ~ 125°C | Clear | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0505012.MXPFUSE CERM 12A 450VAC 250VDC 3AB |
1,179 |
|
Datasheet | 505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 450 V | 250 V | Fast Blow | 20kA AC, 1kA DC | 192.0 | CE, cULus, SEMKO | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
37000500410FUSE BOARD MNT 50MA 250VAC RAD |
417 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 250 V | - | Fast Blow | 50A | 3.5E-4 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
142.5631.5402FUSE AUTO 40A 58VDC AUTO LINK |
1,347 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 58 V | Slow Blow | 1kA | 6800.0 | cUL | - | Green | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
142.7010.6152FUSE AUTO 150A 58VDC AUTO LINK |
649 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 58 V | - | 1kA | 83400.0 | cURus | - | Gray | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|

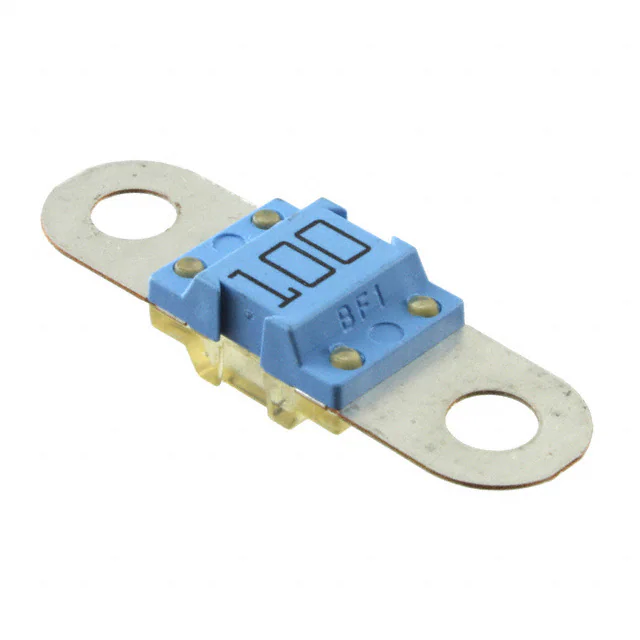

142.5631.6102FUSE AUTO 100A 58VDC AUTO LINK |
321 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 58 V | Slow Blow | 1kA | 42500.0 | cUL | - | Blue | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
142.7010.5502FUSE AUTO 50A 58VDC AUTO LINK |
181 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 58 V | - | 1kA | 6900.0 | cURus | - | Red | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
37000400430FUSE BOARD MNT 40MA 250VAC RAD |
463 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 40 mA | 250 V | - | Fast Blow | 50A | 2.0E-4 | cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0459.125URFUSE BRD MT 125MA 125VAC/VDC SMD |
5,861 |
|
Datasheet | PICO® 459 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.00163 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
4998100.M-M6FUSE AUTO 100A 70VDC AUTO LINK |
451 |
|
Datasheet | MIDI® | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 70 V | - | 2.5kA | 17500.0 | UR | -40°C ~ 125°C | Blue | 0.630" L x 0.496" W x 0.323" H (16.00mm x 12.60mm x 8.20mm) | |
|
142.7010.6122FUSE AUTO 125A 58VDC AUTO LINK |
516 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 58 V | - | 1kA | 62500.0 | cURus | - | Pink | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
142.5631.5802FUSE AUTO 80A 58VDC AUTO LINK |
257 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 58 V | Slow Blow | 1kA | 25600.0 | cUL | - | White | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|

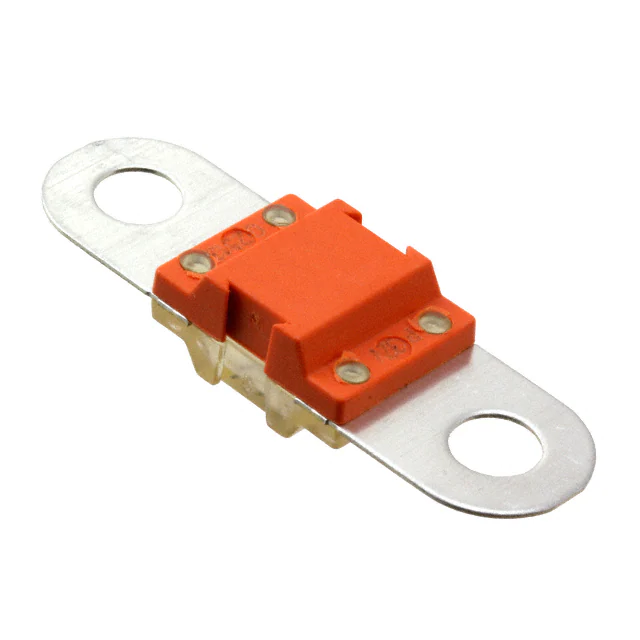

142.5631.5302FUSE AUTO 30A 58VDC AUTO LINK |
209 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 30 A | - | 58 V | Slow Blow | 1kA | 5100.0 | - | - | Orange | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
153.5631.6101FUSE AUTO 100A 32VDC AUTO LINK |
487 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 2kA | 42500.0 | UL | - | Blue | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
153.5631.5601FUSE AUTO 60A 32VDC AUTO LINK |
455 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 60 A | - | 32 V | Slow Blow | 2kA | 16200.0 | ISO, UL | - | Yellow | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
153.5631.5501FUSE AUTO 50A 32VDC AUTO LINK |
306 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | Slow Blow | 2kA | 6900.0 | ISO, UL | - | Red | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
35816300029FUSE CERAMIC 6.3A 500VAC 3AB 3AG |
174 |
|
Datasheet | 358 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 500 V | - | Slow Blow | 1.5kA | 123.0 | cULus | -25°C ~ 85°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|

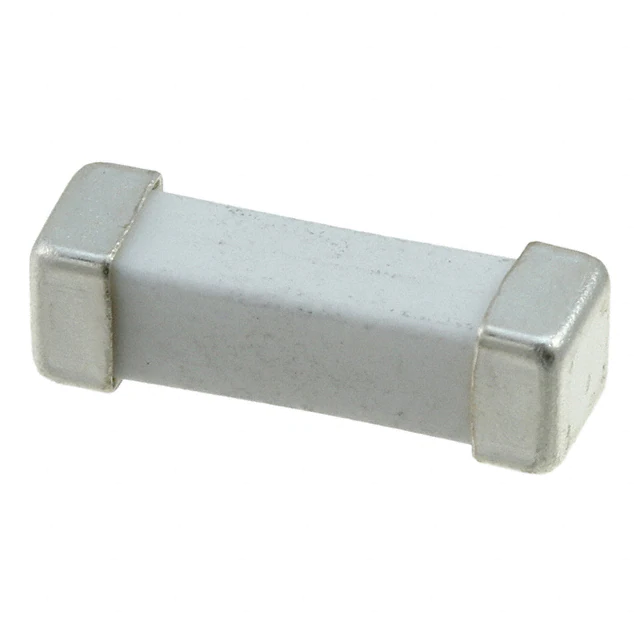

0463020.ERFUSE BRDMT 20A 250VAC/100VDC SMD |
6,662 |
|
Datasheet | 463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 433.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) |
