Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0487020.MXEPFUSE CERM 20A 420VAC 420VDC 5X20 |
950 |
|
Datasheet | 487 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 420 V | 420 V | Fast Blow | 200A AC, 300A DC | 390.0 | cURus, TUV | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
0487020.MXPFUSE CERM 20A 420VAC 420VDC 5X20 |
594 |
|
Datasheet | 487 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 420 V | 420 V | Fast Blow | - | 390.0 | cURus, TUV | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0487008.MXEPFUSE CERM 8A 420VAC 420VDC 5X20 |
199 |
|
Datasheet | 487 | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | 420 V | 420 V | Fast Blow | 200A AC, 300A DC | 65.0 | TUV, UR | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
0314040.MXPFUSE CERM 40A 250VAC 150VDC 3AB |
965 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 40 A | 250 V | 150 V | Fast Blow | 1kA AC, 400A DC | 22925.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
37300500410FUSE BOARD MNT 50MA 250VAC RAD |
520 |
|
Datasheet | TR5® 373 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 250 V | - | Fast Blow | 50A | 1.0E-4 | CSA, cULus | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0463025.ERFUSE BRD MT 25A 250VAC 100VDC |
7,074 |
|
Datasheet | 463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 668.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
39500500440FUSE BOARD MNT 50MA 125VAC RAD |
1,370 |
|
Datasheet | TE5® 395 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 125 V | - | Fast Blow | 100A | 1.0E-4 | cUL, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
0507008.MXPFUSE CERAMIC 8A 650VDC SMD |
860 |
|
Datasheet | 507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | - | 650 V | - | 150A | 53.0 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0203003.HXGFUSE BOARD MOUNT 3A 250VAC 2SMD |
125 |
|
Datasheet | FLAT-PAK® 203 | Bulk | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | - | Slow Blow | 50A | 4.4 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
0298225.ZXEHFUSE AUTO 225A 32VDC AUTO LINK |
358 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 225 A | - | 32 V | Slow Blow | 2kA | 257000.0 | - | -40°C ~ 125°C | Tan | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298125.ZXEHFUSE AUTO 125A 32VDC AUTO LINK |
263 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 2kA | 57800.0 | UL | -40°C ~ 125°C | Green | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298175.ZXEHFUSE AUTO 175A 32VDC AUTO LINK |
153 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 175 A | - | 32 V | Slow Blow | 2kA | 168000.0 | UL | -40°C ~ 125°C | White | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
0275020.MXLFUSE BRD MNT 20A 32VAC 32VDC AXL |
1,109 |
|
Datasheet | PICO® 275 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 20 A | 32 V | 32 V | Fast Blow | 100A AC, 300A DC | 115.0 | UL | -55°C ~ 125°C | - | 0.133" Dia x 0.310" L (3.38mm x 7.87mm) | |
|
|
0322020.HXPFUSE CERAMIC 20A 65VAC/VDC 3AB |
983 |
|
Datasheet | 322 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 65 V | 65 V | Fast Blow | 200A AC, 1kA DC | 192.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0298250.ZXEHFUSE AUTO 250A 32VDC AUTO LINK |
598 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | Slow Blow | 2kA | 389000.0 | - | -40°C ~ 125°C | Pink | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
050706.3MXPFUSE CERAMIC 6.3A 650VDC SMD |
278 |
|
Datasheet | 507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | - | 650 V | - | 150A | 29.0 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
09773.15MXPFUSE CERAMIC 3.15A 500VAC 450VDC |
553 |
|
Datasheet | 977 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 58.0 | CE, PSE, SEMKO | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

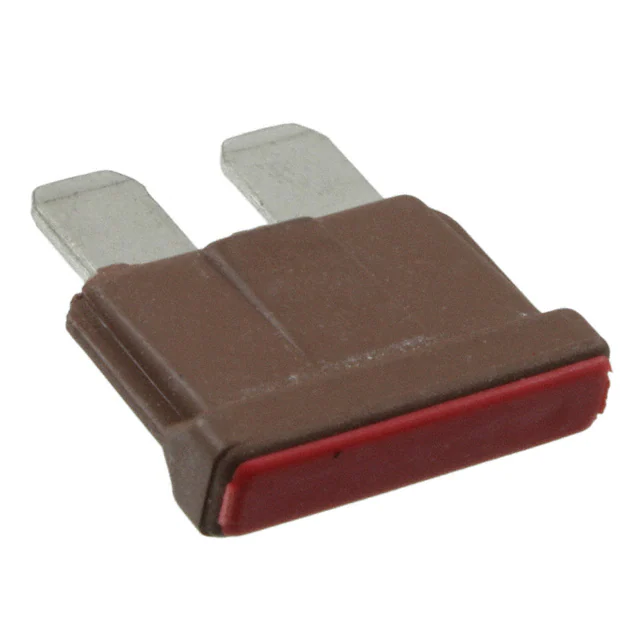

166.7000.4752FUSE AUTO 7.5A 80VDC BLADE ATO |
1,657 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 80 V | Slow Blow | 1kA | 44.5 | cULus | - | Brown | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
|
0298080.UXTFUSE AUTO 80A 32VDC AUTO LINK |
587 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 2kA | - | cULus | -40°C ~ 125°C | Red | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
0688030.MXPFUSE CERAMIC 30A 70VDC |
639 |
|
Datasheet | 688 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | - | 70 V | Slow Blow | 2.5kA | 4200.0 | cURus, TUV | -55°C ~ 125°C | - | 0.248" Dia x 0.992" L (6.30mm x 25.20mm) |
