Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0476012.MRFUSE BRD MNT 12A 125VAC/VDC 2SMD |
926 |
|
Datasheet | NANO²®476 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 20.635 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0476015.MRFUSE BRD MNT 15A 125VAC/VDC 2SMD |
744 |
|
Datasheet | NANO²®476 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 61.286 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0299025.ZXNVFUSE AUTO 25A 32VDC BLADE MAX |
405 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | Slow Blow | 1kA | 2087.0 | - | -40°C ~ 125°C | Gray | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|

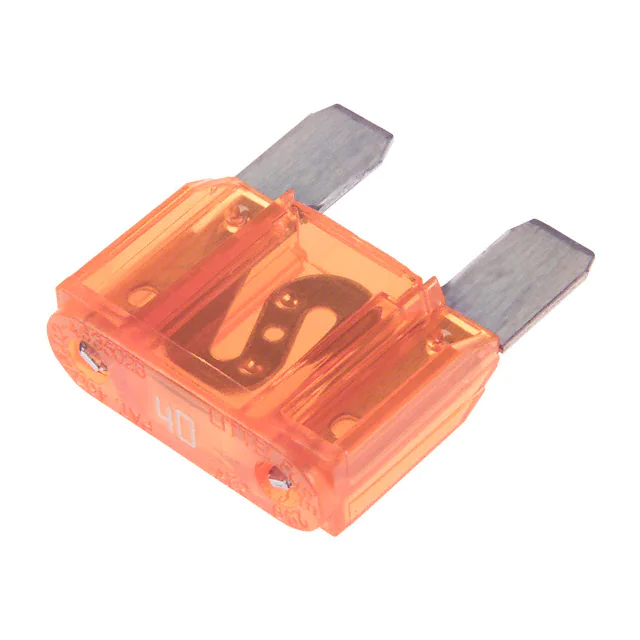

0299040.ZXNVFUSE AUTO 40A 32VDC BLADE MAX |
298 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | Slow Blow | 1kA | 8450.0 | - | -40°C ~ 125°C | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299060.ZXNVFUSE AUTO 60A 32VDC BLADE MAX |
247 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 32 V | Slow Blow | 1kA | 15300.0 | - | -40°C ~ 125°C | Blue | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299080.ZXNVFUSE AUTO 80A 32VDC BLADE MAX |
875 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 80 A | - | 32 V | Slow Blow | 1kA | 8800.0 | - | -40°C ~ 125°C | Clear | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0498080.MXM6FUSE AUTO 80A 32VDC AUTO LINK |
696 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | - | 1kA | 24600.0 | UR | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
0263002.MXLFUSE BOARD MOUNT 2A 250VAC AXIAL |
279 |
|
Datasheet | PICO® II 263 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 50A | 0.74 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
0498050.MFUSE AUTO 50A 32VDC AUTO LINK |
1,215 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|

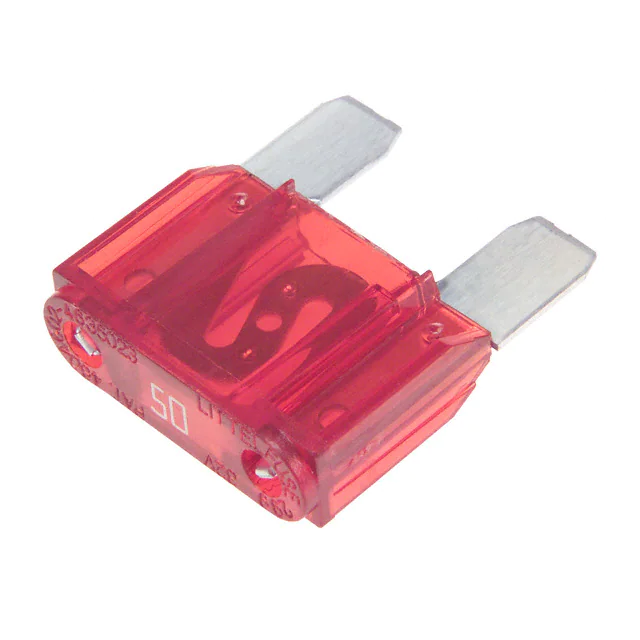

0299050.ZXNVFUSE AUTO 50A 32VDC BLADE MAX |
798 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | 11300.0 | - | -40°C ~ 125°C | Red | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
|
0498080.MFUSE AUTO 80A 32VDC AUTO LINK |
615 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
|
0498070.MFUSE AUTO 70A 32VDC AUTO LINK |
111 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 70 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
0313.150HXPFUSE GLASS 150MA 250VAC 3AB 3AG |
253 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 150 mA | 250 V | - | Slow Blow | 35A | 0.27 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0263.250WRT1LFUSE BRD MNT 250MA 250VAC AXIAL |
5,486 |
|
Datasheet | PICO® II 263 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 250 V | - | Fast Blow | 50A | 0.0165 | CSA, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
0498040.MFUSE AUTO 40A 32VDC AUTO LINK |
869 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
|
0498060.MFUSE AUTO 60A 32VDC AUTO LINK |
1,095 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 60 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
|
0263005.MXLFUSE BOARD MOUNT 5A 250VAC AXIAL |
6,496 |
|
Datasheet | PICO® II 263 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Fast Blow | 50A | 5.55 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
0263001.MXLFUSE BOARD MOUNT 1A 250VAC AXIAL |
8,691 |
|
Datasheet | PICO® II 263 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Fast Blow | 50A | 0.087 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
0263005.WRT1LFUSE BOARD MOUNT 5A 250VAC AXIAL |
6,602 |
|
Datasheet | PICO® II 263 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Fast Blow | 50A | 5.55 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
0263002.WRT1LFUSE BOARD MOUNT 2A 250VAC AXIAL |
1,453 |
|
Datasheet | PICO® II 263 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 50A | 0.74 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) |
