Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0218010.MXEPFUSE GLASS 10A 250VAC 5X20MM |
455 |
|
Datasheet | 218 | Bulk | Active | Through Hole | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 100A | 568.0 | CE, CSA, K-MARK, PSE, UL, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
|
0218015.MXEPFUSE GLASS 15A 250VAC 5X20MM |
252 |
|
Datasheet | 218 | Bulk | Active | Through Hole | Cartridge, Glass | 15 A | 250 V | - | Slow Blow | 100A | 1405.0 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0215002.MXEPFUSE CERAMIC 2A 250VAC 5X20MM |
893 |
|
Datasheet | 215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 11.68 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0313.150MXPFUSE GLASS 150MA 250VAC 3AB 3AG |
1,830 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 150 mA | 250 V | - | Slow Blow | 35A | 0.27 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|

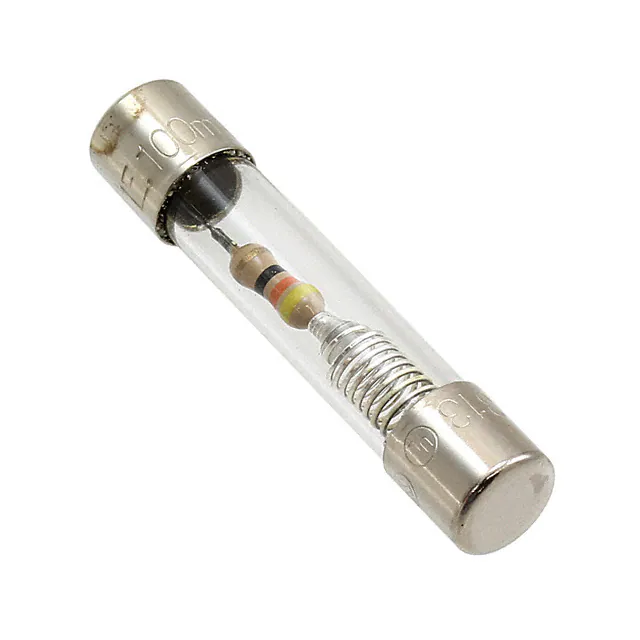

0313.100MXPFUSE GLASS 100MA 250VAC 3AB 3AG |
926 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 100 mA | 250 V | - | Slow Blow | 35A | 0.085 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313.125MXPFUSE GLASS 125MA 250VAC 3AB 3AG |
292 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Slow Blow | 35A | 0.152 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0157.125DRFUSE BRD MT 125MA 125VAC/VDC SMD |
13,162 |
|
Datasheet | NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A | 0.00286 | cULus | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
0476015.MRSNFUSE BRD MNT 15A 125VAC/VDC 2SMD |
7,751 |
|
Datasheet | NANO²®476 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 61.286 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0216.200MXEPFUSE CERAMIC 200MA 250VAC 5X20MM |
944 |
|
Datasheet | 216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 200 mA | 250 V | - | Fast Blow | 1.5kA | 0.00439 | CCC, CE, CSA, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
0477016.MXPFUSE CERM 16A 500VAC 400VDC 5X20 |
956 |
|
Datasheet | 477 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 16 A | 500 V | 400 V | Slow Blow | 100A AC, 400A DC | 1331.2 | cULus, PSE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0895030.UFUSE AUTO 30A 58VDC AUTO LINK |
354 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | - | 1kA | 1780.0 | - | -40°C ~ 125°C | Pink | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0895020.UFUSE AUTO 20A 58VDC AUTO LINK |
835 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | - | 1kA | 400.0 | - | -40°C ~ 125°C | Blue | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0324025.MXPFUSE CERM 25A 250VAC 125VDC 3AB |
1,178 |
|
Datasheet | 324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 250 V | 125 V | Fast Blow | 100A AC, 400A DC | 1450.0 | CE, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0215012.MXF11PFUSE CERAMIC 12A 250VAC RADIAL |
787 |
|
Datasheet | 215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12 A | 250 V | - | Slow Blow | 1.5kA | 515.5 | CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0215005.MXF34PFUSE CERAMIC 5A 250VAC RADIAL |
717 |
|
Datasheet | 215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 5 A | 250 V | - | Slow Blow | 1.5kA | 66.095 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0324020.MXPFUSE CERM 20A 250VAC 125VDC 3AB |
311 |
|
Datasheet | 324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 250 V | 125 V | Fast Blow | 200A AC, 10kA DC | 631.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0498125.MXTFUSE AUTO 125A 32VDC AUTO LINK |
432 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 1kA | 73200.0 | - | -40°C ~ 125°C | Pink | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|

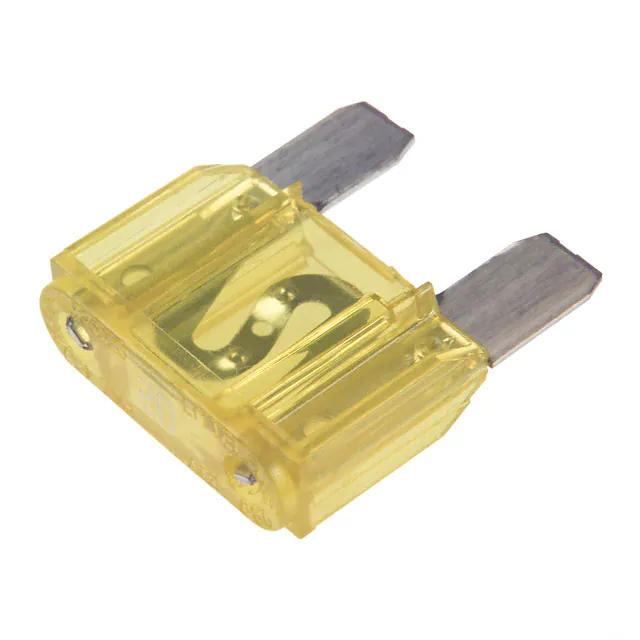

0299020.ZXNVFUSE AUTO 20A 32VDC BLADE MAX |
2,213 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Slow Blow | 1kA | 1100.0 | - | -40°C ~ 125°C | Yellow | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0895040.UFUSE AUTO 40A 58VDC AUTO LINK |
1,118 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 58 V | - | 1kA | 5470.0 | - | -40°C ~ 125°C | Green | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0299035.ZXNVFUSE AUTO 35A 32VDC BLADE MAX |
1,110 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 35 A | - | 32 V | Slow Blow | 1kA | 6032.0 | - | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) |
