Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0495030.ZXAFUSE AUTO 30A 32VAC AUTO LINK |
1,835 |
|
Datasheet | JCASE™ 495 | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | - | Slow Blow | 1kA | 1480.0 | UR | -40°C ~ 125°C | Pink | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
0495040.ZXAFUSE AUTO 40A 32VAC AUTO LINK |
953 |
|
Datasheet | JCASE™ 495 | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | - | Slow Blow | 1kA | 3650.0 | UR | -40°C ~ 125°C | Green | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|

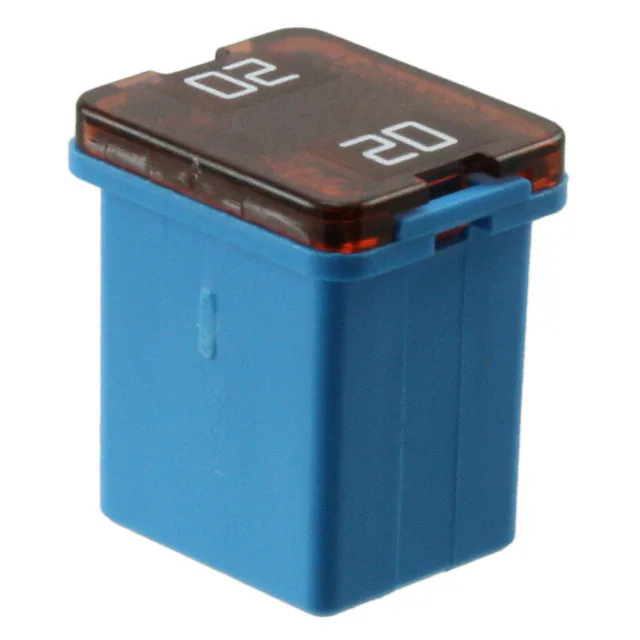

0895020.ZFUSE AUTO 20A 58VDC AUTO LINK |
1,761 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | - | 1kA | 400.0 | UL | -40°C ~ 125°C | Blue | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0326015.MXDPFUSE CERM 15A 250VAC 60VDC 3AB |
321 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 60 V | Slow Blow | 400A AC, 500A DC | 760.0 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0895030.ZFUSE AUTO 30A 58VDC AUTO LINK |
1,916 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | - | 1kA | 680.0 | UL | -40°C ~ 125°C | Pink | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0895025.ZFUSE AUTO 25A 58VDC AUTO LINK |
1,881 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 58 V | - | 1kA | 680.0 | UL | -40°C ~ 125°C | Clear | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
021612.5MXEPFUSE CERAMIC 12.5A 250VAC 5X20MM |
261 |
|
Datasheet | 216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12.5 A | 250 V | - | Fast Blow | 1.5kA | 235.0 | CE, CSA, PSE, TUV, UR | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0895060.ZFUSE AUTO 60A 58VDC AUTO LINK |
1,912 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 58 V | - | 1kA | 9600.0 | UL | -40°C ~ 125°C | Yellow | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0154005.DRLFUSE BRD MNT 5A 125VAC/VDC 2SMD |
5,038 |
|
Datasheet | OMNI-BLOK® 154L | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A | 5.566 | PSE, UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0154.400DRFUSE BRD MT 400MA 125VAC/VDC SMD |
4,269 |
|
Datasheet | OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 400 mA | 125 V | 125 V | Fast Blow | 50A | 0.0484 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0875005.MXEPFUSE CERAMIC 5A 250VAC AXIAL |
309 |
|
Datasheet | 875 | Bulk | Active | Through Hole | Cartridge, Ceramic | 5 A | 250 V | - | Slow Blow | 50A | 60.9 | cULus | -55°C ~ 125°C | - | 0.142" Dia x 0.394" L (3.60mm x 10.00mm) | |
|
0325015.MXPFUSE CERM 15A 250VAC 60VDC 3AB |
4,622 |
|
Datasheet | 325 | Bulk | Active | Through Hole | Cartridge, Ceramic | 15 A | 250 V | 60 V | Slow Blow | 400A AC, 500A DC | 245.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0448015.MRFUSE BRD MNT 15A 85VAC 85VDC SMD |
2,954 |
|
Datasheet | NANO²® 448 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 85 V | 85 V | Fast Blow | 50A | 96.1 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
153.5631.5502FUSE AUTO 50A 32VDC AUTO LINK |
772 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | Slow Blow | 2kA | 6900.0 | UL | - | Red | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
0452010.MRLFUSE 125V SB NANO2 W/AU CAPS ROH |
621 |
|
Datasheet | NANO²® 452 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 72 V | 60 V | Slow Blow | 50A | 195.0 | CE, CSA, cURus, TUV, UKCA | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
 Series.jpg)
|
0477.500MXEPFUSE CERM 500MA 500VAC 400VDC |
1,701 |
|
Datasheet | 477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 500 mA | 500 V | 400 V | Slow Blow | 100A AC, 1.5kA DC | 0.3 | cULus, SEMKO | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0477002.MXEPFUSE CERM 2A 500VAC 400VDC 5X20 |
871 |
|
Datasheet | 477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 2 A | 500 V | 400 V | Slow Blow | 100A AC, 1.5kA DC | 9.12 | cULus, PSE, SEMKO | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
.jpg)
|
0AGC003.VFUSE GLASS 3A 32VAC/VDC 3AB 3AG |
195 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | 250 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0312.200MXPFUSE GLASS 200MA 250VAC 3AB 3AG |
861 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Fast Blow | 35A | 0.0165 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
02153.15MXEPFUSE CERAMIC 3.15A 250VAC 5X20MM |
708 |
|
Datasheet | 215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Slow Blow | 1.5kA | 43.255 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) |
