Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0505020.MX52LEPFUSE CERM 20A 500VAC 500VDC 3AB |
3,075 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 203.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0203005.HFUSE BOARD MOUNT 5A 250VAC 2DIP |
2,286 |
|
Datasheet | FLAT-PAK® 203 | Tube | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Slow Blow | 50A | 14.7 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
0218002.VXPFUSE GLASS 2A 250VAC 5X20MM |
8 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 14.45 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218005.VXPFUSE GLASS 5A 250VAC 5X20MM |
7 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 111.0 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218001.VXPFUSE GLASS 1A 250VAC 5X20MM |
4 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 35A | 6.73 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0326012.VXPFUSE CERM 12A 250VAC 125VDC 3AB |
8 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 129.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326005.VXPFUSE CERAMIC 5A 250VAC 3AB 3AG |
3 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | - | Slow Blow | 400A | 25.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326015.VXPFUSE CERM 15A 250VAC 125VDC 3AB |
15 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 245.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326010.VXPFUSE CERAMIC 10A 250VAC 3AB 3AG |
2 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 400A | 137.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0217010.VXPFUSE GLASS 10A 250VAC 5X20MM |
8,207 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Fast Blow | 100A | 217.635 | CE, KC, PSE, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218010.VXPFUSE GLASS 10A 250VAC 5X20MM |
8,177 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 100A | 568.0 | CE, CSA, KC, PSE, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

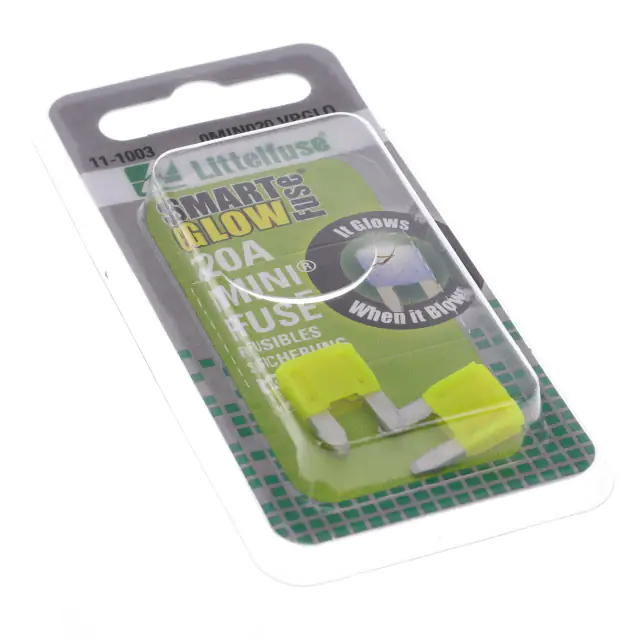

0MIN020.VPGLOFUSE AUTO 20A 32VAC 32VDC BLADE |
13 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 20 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0326020.VXPFUSE CERM 20A 250VAC 125VDC 3AB |
2 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 575.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0218004.VXPFUSE GLASS 4A 250VAC 5X20MM |
6,265 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 40A | 69.1 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
021806.3VXPFUSE GLASS 6.3A 250VAC 5X20MM |
4,795 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Slow Blow | 63A | 198.5 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0498050.TXNFUSE AUTO 50A 32VDC AUTO LINK |
4 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | 13000.0 | - | -40°C ~ 125°C | Red | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
0MAX020.XFUSE AUTO 20A 32VAC 32VDC BLADE |
10 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 20 A | 32 V | 32 V | Slow Blow | - | - | SAE | - | Yellow | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0MAX030.XFUSE AUTO 30A 32VAC 32VDC BLADE |
5 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | 32 V | Slow Blow | - | - | SAE | - | Green | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|

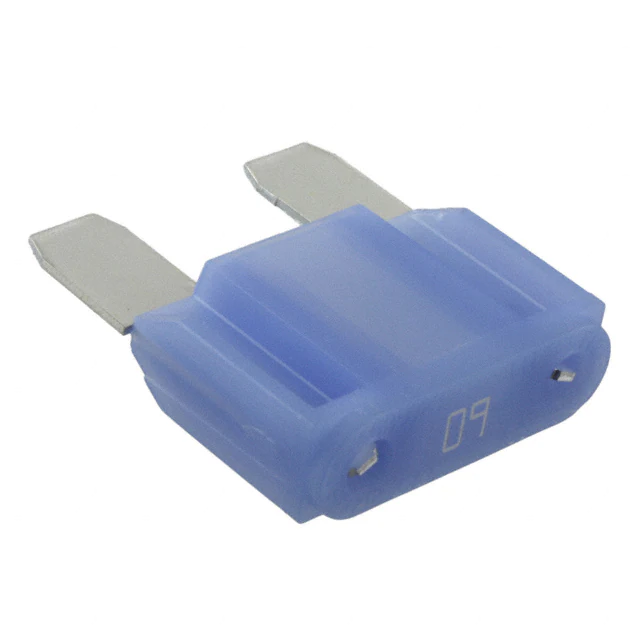

0MAX060.XFUSE AUTO 60A 32VAC 32VDC BLADE |
3,179 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 60 A | 32 V | 32 V | Slow Blow | - | - | SAE | - | Blue | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0498040.TXNFUSE AUTO 40A 32VDC AUTO LINK |
18 |
|
Datasheet | MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | 1kA | 10000.0 | - | -40°C ~ 125°C | Green | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) |
