Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0314012.VXPFUSE CERM 12A 250VAC 125VDC 3AB |
8 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 570.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0229.750VXPFUSE GLASS 750MA 250VAC 125VDC |
3 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 2.95 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
|
0229002.VXPFUSE GLASS 2A 250VAC 125VDC 2AG |
8,621 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 30.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
.jpg)
|
0AGC006.VPFUSE GLASS 6A 32VAC/VDC 5PK CARD |
18 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 6 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0314015.VXPFUSE CERM 15A 250VAC 125VDC 3AB |
13 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 292.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
80712500440FUSE BOARD MNT 2.5A 300VAC RAD |
9,949 |
|
Datasheet | TE7 807 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 300 V | - | Slow Blow | 100A | 141.3 | cULus, KC, PSE/JET | -40°C ~ 125°C | - | 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm) | |
|
20101000021PFUSE GLASS 100MA 250VAC 5X20MM |
5,881 |
|
Datasheet | 201P | Bulk | Active | Requires Holder | Cartridge, Glass | 100 mA | 250 V | - | Medium Blow | 80A | 0.022 | cULus | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
031301.5VXPFUSE GLASS 1.5A 250VAC 3AB 3AG |
15 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Slow Blow | 100A | 38.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
03131.25VXPFUSE GLASS 1.25A 250VAC 3AB 3AG |
5 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Slow Blow | 100A | 24.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0299080.TXNFUSE AUTO 80A 32VDC BLADE MAX |
19 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 80 A | - | 32 V | Slow Blow | 1kA | 8800.0 | DIN, ISO, SAE | -40°C ~ 125°C | Clear | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
|
0314002.VXPFUSE CERM 2A 250VAC 125VDC 3AB |
21 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 11.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313005.VXPFUSE GLASS 5A 250VAC 3AB 3AG |
15 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 200A | 140.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313004.VXPFUSE GLASS 4A 250VAC 3AB 3AG |
7 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 200A | 76.1 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313002.VXPFUSE GLASS 2A 250VAC 3AB 3AG |
5,562 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 100A | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0229001.VXSPFUSE GLASS 1A 250VAC 125VDC 2AG |
10 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 5.64 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0MAX040.XPFUSE AUTO 40A 32VAC/VDC 1PK CARD |
5 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | 32 V | Slow Blow | - | - | SAE | - | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|

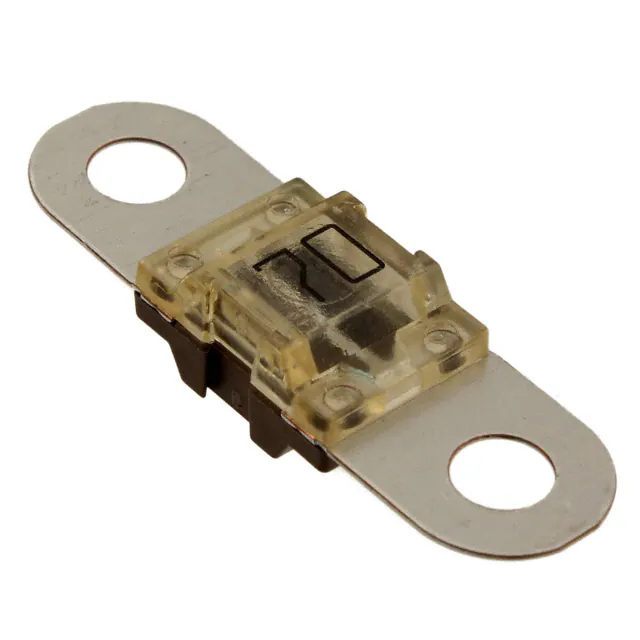

153.5631.5701FUSE AUTO 70A 32VDC AUTO LINK |
14 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 70 A | - | 32 V | Slow Blow | 2kA | 22000.0 | ISO, UL | - | Tan | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0299035.TXNFUSE AUTO 35A 32VDC BLADE MAX |
18 |
|
Datasheet | 299 | Box | Active | Requires Holder | Automotive | 35 A | - | 32 V | Slow Blow | 1kA | 6032.0 | UR | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299050.TXNFUSE AUTO 50A 32VDC BLADE MAX |
12 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | 11300.0 | DIN, ISO, SAE | -40°C ~ 125°C | Red | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299060.TXNFUSE AUTO 60A 32VDC BLADE MAX |
10 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 32 V | Slow Blow | 1kA | 15300.0 | DIN, ISO, SAE | -40°C ~ 125°C | Blue | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) |
