Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0225001.VXPFUSE GLASS 1A 250VAC 125VDC 2AG |
5 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 2.22 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0315030.HXPFUSE GLASS 30A 32VAC 3AB 3AG |
6,607 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 30 A | 32 V | - | Slow Blow | 300A | 26900.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
.jpg)
|
0AGC001.VFUSE GLASS 1A 32VAC/VDC 3AB 3AG |
4,578 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0225.500VXPFUSE GLASS 500MA 250VAC 125VDC |
5 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.365 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
|
0225002.VXPFUSE GLASS 2A 250VAC 125VDC 2AG |
5 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 1.5 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
|
0225003.VXPFUSE GLASS 3A 250VAC 125VDC 2AG |
5 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 4.62 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0224.500HXPFUSE GLASS 500MA 250VAC 125VDC |
9,072 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.365 | CE, CSA, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
 Series.jpg)
|
0477001.MXEPFUSE CERM 1A 500VAC 400VDC 5X20 |
5,623 |
|
Datasheet | 477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 500 V | 400 V | Slow Blow | 100A AC, 1.5kA DC | 1.8 | cULus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0312.175HXPFUSE GLASS 175MA 250VAC 3AB 3AG |
6,902 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 175 mA | 250 V | - | Fast Blow | 35A | 0.0096 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0216.800MXEPFUSE CERAMIC 800MA 250VAC 5X20MM |
7,641 |
|
Datasheet | 216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 800 mA | 250 V | - | Fast Blow | 1.5kA | 0.285 | CCC, CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|

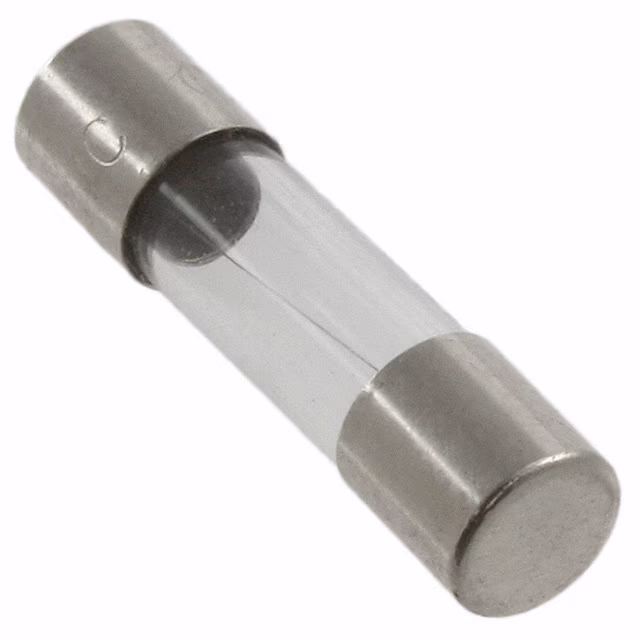

20105000021PFUSE GLASS 500MA 250VAC 5X20MM |
25 |
|
Datasheet | 201P | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Medium Blow | 80A | 0.35 | cULus | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0324025.HXPFUSE CERM 25A 250VAC 125VDC 3AB |
3 |
|
Datasheet | 324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 250 V | 125 V | Fast Blow | 100A AC, 400A DC | 1450.0 | CE, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
35608000029FUSE CERM 800MA 440VAC 3AB 3AG |
4,566 |
|
Datasheet | 356 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 800 mA | 440 V | - | Slow Blow | 1kA | 3.1 | CE | -25°C ~ 70°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
|
0312.125HXPFUSE GLASS 125MA 250VAC 3AB 3AG |
6,339 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.00289 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0695030.LFUSE AUTO 30A 32VDC 50 PC |
23 |
|
Datasheet | MCASE™ 695 | Box | Active | Requires Holder | Automotive | 30 A | - | 32 V | Slow Blow | 1kA | - | - | -40°C ~ 125°C | Pink | 0.421" L x 0.244" W x 0.689" H (10.70mm x 6.20mm x 17.50mm) | |
|
0325030.HXPFUSE CERM 30A 250VAC 125VDC 3AB |
16 |
|
Datasheet | 325 | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 1690.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
|
0AGC005.VPFUSE GLASS 5A 32VAC/VDC 5PK CARD |
23 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0325020.HXPFUSE CERM 20A 250VAC 60VDC 3AB |
20 |
|
Datasheet | 325 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 250 V | 60 V | Slow Blow | 400A AC, 500A DC | 575.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0218.050HXPFUSE GLASS 50MA 250VAC 5X20MM |
16 |
|
Datasheet | 218 | Bulk | Active | Requires Holder | Cartridge, Glass | 50 mA | 250 V | - | Slow Blow | 35A | 0.00692 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0312008.VXPFUSE GLASS 8A 250VAC 3AB 3AG |
16 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Fast Blow | 200A | 166.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
