Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FD2W185JCAP FILM 1.8UF 5% 450VDC RADIAL |
443 |
|
Datasheet | Radial | 1.8 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.398" W (17.50mm x 10.10mm) | 0.524" (13.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F862DJ334K310ZV054CAP FILM 0.33UF 10% 630VDC RAD |
166 |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KN368040P0MCAP FILM 0.68UF 20% 560VDC RAD |
117 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R60EF4100506AJCAP FILM 1UF 5% 100VDC RADIAL |
105 |
|
Datasheet | Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
R46KI347040P1MCAP FILM 0.47UF 20% 560VDC RAD |
5,994 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PFR5101J250J11L4BULKCAP FILM 100PF 5% 250VDC RADIAL |
1,320 |
|
Datasheet | Radial | 100 pF | ±5% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PI3100AA30JCAP FILM 0.1UF 5% 630VDC RADIAL |
1,242 |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KN368000M2KCAP FILM 0.68UF 10% 560VDC RAD |
1,178 |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76UI210050H7JCAP FILM 10000PF 5% 2KVDC RADIAL |
1,020 |
|
Datasheet | Radial | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-F4334JLCAP FILM 0.33UF 5% 400VDC RADIAL |
721 |
|
Datasheet | Radial | 0.33 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.378" W (18.00mm x 9.60mm) | 0.622" (15.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
F862DJ394K310ZV054CAP FILM 0.39UF 10% 630VDC RAD |
475 |
|
Datasheet | Radial | 0.39 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
 Series.jpg)
|
ECW-FE2J105KCAP FILM 1UF 10% 630VDC RADIAL |
450 |
|
Datasheet | Radial | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
LDEEA2100KA0N00CAP FILM 10000PF 10% 100VDC 1206 |
5,737 |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECW-HC3F392JDCAP FILM 3900PF 5% 3KVDC RADIAL |
486 |
|
Datasheet | Radial | 3900 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 0.480" (12.20mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
PHE840EX6220MB06R17CAP FILM 0.22UF 20% 760VDC RAD |
443 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R60EI4220AA30JCAP FILM 2.2UF 5% 100VDC RADIAL |
382 |
|
Datasheet | Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R75GI368050H0JCAP FILM 0.68UF 5% 160VDC RADIAL |
363 |
|
Datasheet | Radial | 0.68 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

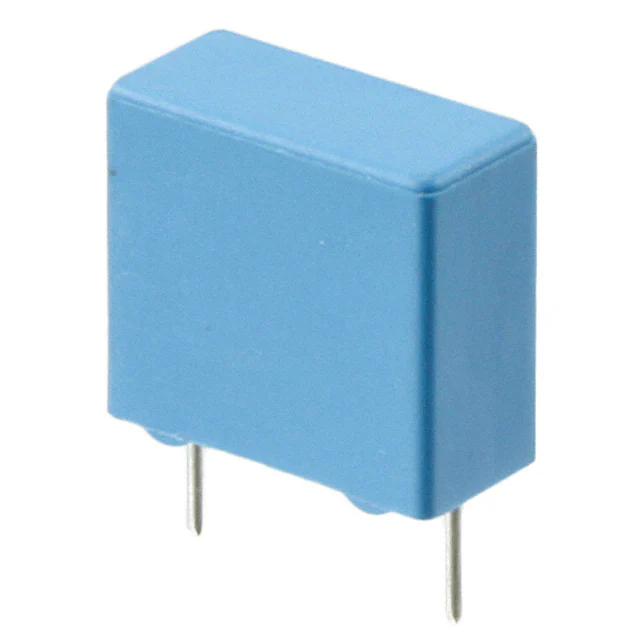

PHE450HA6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
4,001 |
|
Datasheet | Radial | 0.1 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R463N368050M2KCAP FILM 0.68UF 10% 630VDC RAD |
2,586 |
|
Datasheet | Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KI347045P2MCAP FILM 0.47UF 20% 560VDC RAD |
1,014 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
