Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg)
|
ECW-FE2W335KCAP FILM 3.3UF 10% 450VDC RADIAL |
1,230 |
|
Datasheet | Radial | 3.3 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-H8273HACAP FILM 0.027UF 3% 800VDC RAD |
1,186 |
|
Datasheet | Radial | 0.027 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618" L x 0.299" W (15.70mm x 7.60mm) | 0.532" (13.50mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
R75QI31505000JCAP FILM 0.15UF 5% 1KVDC RADIAL |
1,030 |
|
Datasheet | Radial | 0.15 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R586I210050T0KCAP FILM 600VAC(X1) 0.01 UF 10% |
886 |
|
Datasheet | Radial | 10000 pF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R49AN31004001KCAP FILM 0.1UF 10% 800VDC RADIAL |
488 |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
 Series Straight 26x11.jpg)
|
ECW-FA2J125JCAP FILM 1.2UF 5% 630VDC RADIAL |
140 |
|
Datasheet | Radial | 1.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.476" W (26.00mm x 12.10mm) | 0.677" (17.20mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|

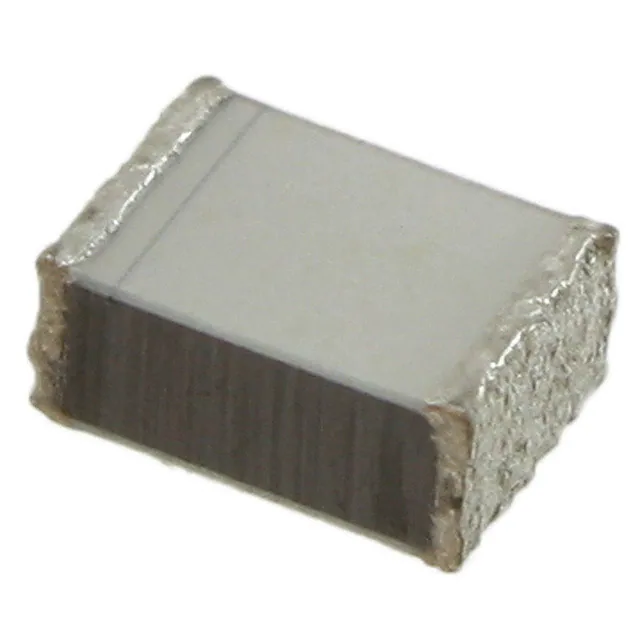

LDEIC2330JA0N00CAP FILM 0.033UF 5% 250VDC 1812 |
4,141 |
|
Datasheet | 1812 (4532 Metric) | 0.033 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
F861AO224M310ACAP FILM 0.22UF 20% 630VDC RAD |
1,570 |
|
Datasheet | Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI333000M1KCAP FILM 0.33UF 10% 560VDC RAD |
1,519 |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76MN32205050JFILM, RADIAL, PULSE, DOUBLE META |
1,398 |
|
Datasheet | Radial | 0.22 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E4334JFCAP FILM 0.33UF 5% 400VDC RADIAL |
1,065 |
|
Datasheet | Radial | 0.33 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R75II32204040JCAP FILM 0.22UF 5% 250VDC RADIAL |
900 |
|
Datasheet | Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413N3100DQM1KCAP FILM 0.1UF 10% 1KVDC RADIAL |
592 |
|
Datasheet | Radial | 0.1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
LDEDD3470KA5N00CAP FILM 0.47UF 10% 63VDC 2220 |
5,336 |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECH-U1H123JB5CAP FILM 0.012UF 5% 50VDC 1210 |
2,950 |
|
Datasheet | 1210 (3225 Metric) | 0.012 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
R76UI12204030JCAP FILM 2200PF 5% 2KVDC RADIAL |
2,935 |
|
Datasheet | Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
ECQ-E6154JFCAP FILM 0.15UF 5% 630VDC RADIAL |
804 |
|
Datasheet | Radial | 0.15 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R46KI3330DQN0KCAP FILM 0.33UF 10% 560VDC RAD |
733 |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R71PI34704030MCAP FILM 0.47UF 20% 630VDC RAD |
315 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
ECQ-E6334JFCAP FILM 0.33UF 5% 630VDC RADIAL |
165 |
|
Datasheet | Radial | 0.33 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.307" W (26.00mm x 7.80mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
