Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76UI1100SE30JCAP FILM 1000PF 5% 2KVDC RADIAL |
1,268 |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE840MB6220KB12R17CAP FILM 0.22UF 10% 760VDC RAD |
969 |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E4474KF3CAP FILM 0.47UF 10% 400VDC RAD |
952 |
|
Datasheet | Radial | 0.47 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.307" W (18.50mm x 7.80mm) | 0.866" (22.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
R523I347050P1MCAP FILM 0.47UF 20% 630VDC RAD |
909 |
|
Datasheet | Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200, X2 | - |
 Series Straight 18x12.jpg)
|
ECW-FA2J684JCAP FILM 0.68UF 5% 630VDC RADIAL |
868 |
|
Datasheet | Radial | 0.68 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 0.673" (17.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
F862BY474K310ZV054CAP FILM 0.47UF 10% 630VDC RAD |
800 |
|
Datasheet | Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75TN282050H3JCAP FILM 0.08UF 5% 1.6KVDC RAD |
721 |
|
Datasheet | Radial | 0.08 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 13.6 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PFR5681J63J11L4BULKCAP FILM 680PF 5% 63VDC RADIAL |
637 |
|
Datasheet | Radial | 680 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PME271Y415MR30CAP FILM 1500PF 20% 1KVDC RADIAL |
128 |
|
Datasheet | Radial | 1500 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PHE450RB4470JR06CAP FILM 4700PF 5% 1.6KVDC RAD |
9,719 |
|
Datasheet | Radial | 4700 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
PHE450SB4470JR06CAP FILM 4700PF 5% 2KVDC RADIAL |
4,869 |
|
Datasheet | Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-U2223JC9CAP FILM 0.022UF 5% 250VDC 1913 |
3,473 |
|
Datasheet | 1913 (4833 Metric) | 0.022 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
R60II34705030JCAP FILM 0.47UF 5% 250VDC RADIAL |
2,502 |
|
Datasheet | Radial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|

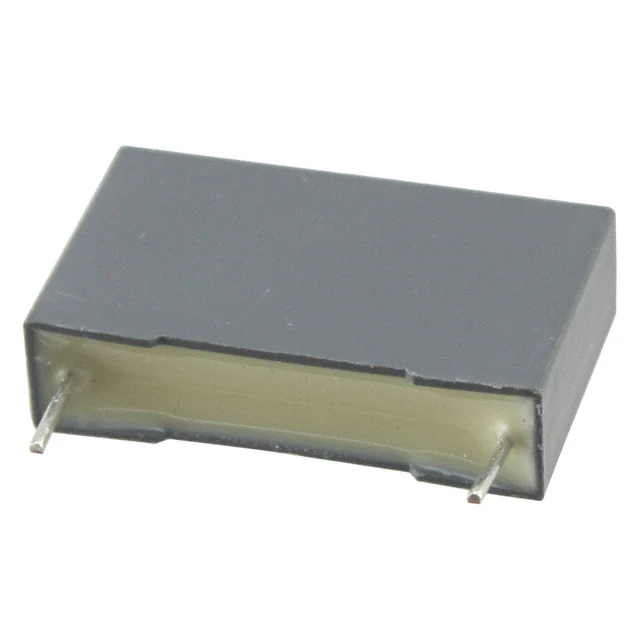

R46KN368000P0KCAP FILM 0.68UF 10% 560VDC RAD |
1,699 |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KN410050N2MCAP FILM 1UF 20% 560VDC RADIAL |
1,481 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

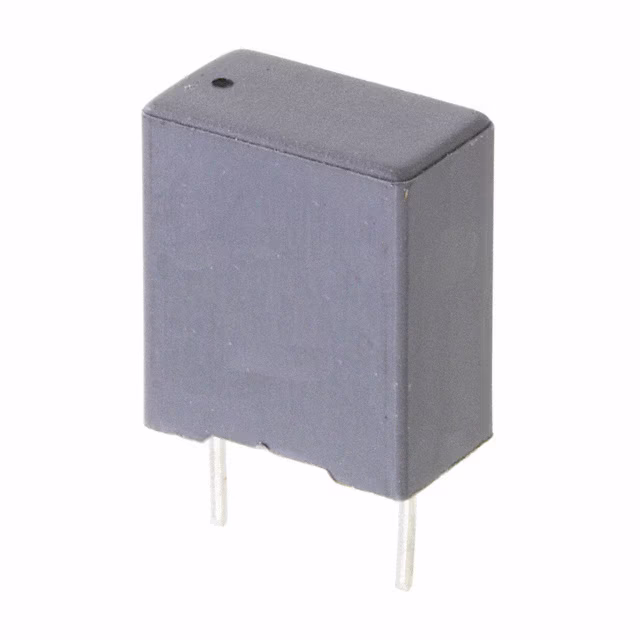

R75QD1820AA30JCAP FILM 8200PF 5% 1KVDC RADIAL |
1,151 |
|
Datasheet | Radial | 8200 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R73PI21004000JCAP FILM 10000PF 5% 630VDC RAD |
914 |
|
Datasheet | Radial | 10000 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI3470JH02MCAP FILM 0.47UF 20% 560VDC RAD |
829 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R76TN239050H4JCAP FILM 0.039UF 5% 1.6KVDC RAD |
500 |
|
Datasheet | Radial | 0.039 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 49 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI368050P1MCAP FILM 0.68UF 20% 560VDC RAD |
477 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
