Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z0603C600BPWZTFERRITE BEAD 60 OHM 0603 1LN |
0 |
|
Datasheet | Z-PWZ | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 60 Ohms @ 100 MHz | 3A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.035" (0.90mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
Z0603C471BPWZTFERRITE BEAD 470 OHM 0603 1LN |
0 |
|
Datasheet | Z-PWZ | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 470 Ohms @ 100 MHz | 700mA | 150mOhm | - | -40°C ~ 125°C | Surface Mount | 0.035" (0.90mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
-0,60x0,30x0,33mm.jpg)
|
Z0201C601ASMSTFERRITE BEAD 600 OHM 0201 1LN |
0 |
|
Datasheet | Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 600 Ohms @ 100 MHz | 150mA | 1.2Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
.jpg)
|
Z0805C330BPWSTFERRITE BEAD 33 OHM 0805 1LN |
0 |
|
Datasheet | Z-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 33 Ohms @ 100 MHz | 4A | 8mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
Z0201C121CSMSTFERRITE BEAD 120 OHM 0201 1LN |
0 |
|
Datasheet | Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 120 Ohms @ 100 MHz | - | 1.5Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
Z0201C100CSMSTFERRITE BEAD 10 OHM 0201 1LN |
0 |
|
Datasheet | Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 10 Ohms @ 100 MHz | 200mA | 400mOhm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
B-01-RTSFERRITE BEAD 2 OHM AXIAL 1LN |
0 |
|
Datasheet | BEAD L | Axial, Kinked Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 0.295" L (3.40mm x 7.50mm) | - |
|
|
B-01-RTFERRITE BEAD 2 OHM AXIAL 1LN |
0 |
|
Datasheet | BEAD L | Axial, Kinked Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 0.512" L (3.40mm x 13.00mm) | - |
|
|
B-01-RTFFERRITE BEAD 2 OHM AXIAL 1LN |
0 |
|
Datasheet | BEAD L | Axial, Kinked Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 0.512" L (3.40mm x 13.00mm) | - |
|
B-01-AT1FFERRITE BEAD 2 OHM AXIAL 1LN |
0 |
|
Datasheet | BEAD L | Axial | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 2.638" L (3.40mm x 67.00mm) | - |
|
|
B-01-RTSFFERRITE BEAD 2 OHM AXIAL 1LN |
0 |
|
Datasheet | BEAD L | Axial, Kinked Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 0.295" L (3.40mm x 7.50mm) | - |
|
Z1806C111APWSTFERRITE BEAD 110 OHM 1806 1LN |
27 |
|
Datasheet | Z-PWS | 1806 (4516 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 110 Ohms @ 100 MHz | 4A | 14mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
|
Z1806C560BPWSTFERRITE BEAD 56 OHM 1806 1LN |
7 |
|
Datasheet | Z-PWS | 1806 (4516 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 56 Ohms @ 100 MHz | 6A | 7mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
|
Z0806C251BPWZTFERRITE BEAD 250 OHM 0806 1LN |
2 |
|
Datasheet | Z-PWZ | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 250 Ohms @ 100 MHz | 2A | 50mOhm | - | -40°C ~ 125°C | Surface Mount | 0.071" (1.80mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
B-02-RTFFERRITE BEAD 4 OHM AXIAL RAD 1LN |
0 |
|
Datasheet | BEAD L | Axial, Split Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 4 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.165" Dia x 0.236" L (4.20mm x 6.00mm) | - |
|
|
B-03-RTFERRITE BEAD 5 OHM AXIAL RAD 1LN |
0 |
|
Datasheet | BEAD L | Axial, Split Radial Bend | Tape & Reel (TR) | Active | Signal Line | 1 | 5 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.094" Dia x 0.335" L (2.40mm x 8.50mm) | - |
|
B-06-RTF-25FERRITE BEAD 40 OHM RADIAL 1LN |
0 |
|
Datasheet | BEAD L | Radial | Tape & Reel (TR) | Active | Signal Line | 1 | 40 Ohms @ 10 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | 0.236" (6.00mm) | 0.236" L x 0.276" W (6.00mm x 7.00mm) | - |
|
B-06-RTF-50FERRITE BEAD 40 OHM RADIAL 1LN |
0 |
|
Datasheet | BEAD L | Radial | Tape & Reel (TR) | Active | Signal Line | 1 | 40 Ohms @ 10 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | 0.394" (10.00mm) | 0.236" L x 0.276" W (6.00mm x 7.00mm) | - |
|

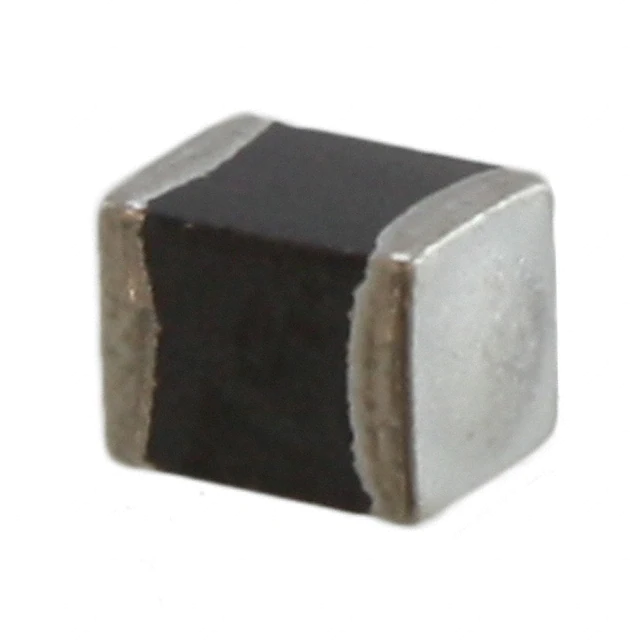

Z1210C601BPWZTFERRITE BEAD 600 OHM 1210 1LN |
0 |
|
Datasheet | Z-PWZ | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 600 Ohms @ 100 MHz | 3A | 42mOhm | - | -40°C ~ 125°C | Surface Mount | 0.110" (2.80mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
Z1812C132BPWZTFERRITE BEAD 1.3K OHM 1812 1LN |
0 |
|
Datasheet | Z-PWZ | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 1.3 kOhms @ 100 MHz | 3A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.138" (3.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
